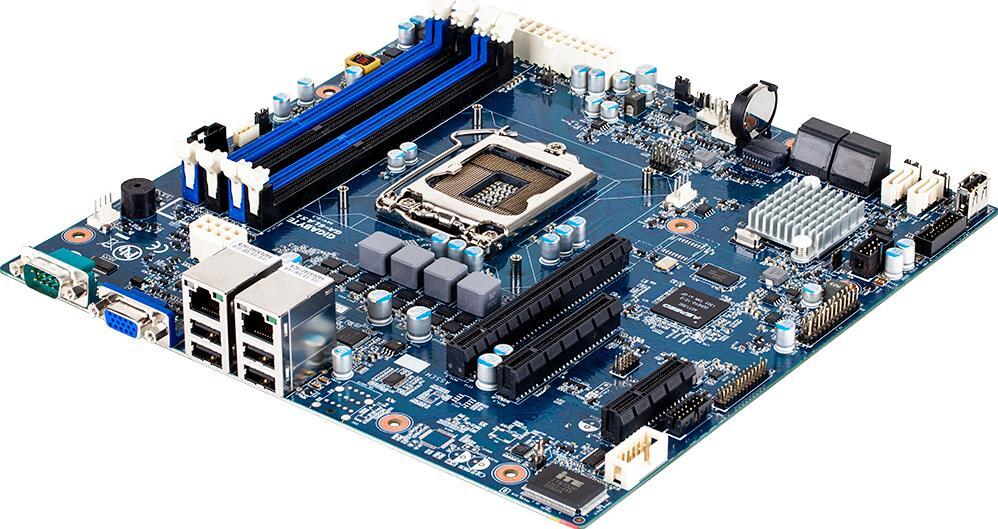

• The Power of the Latest Xeon Generation on a Compact Board
    By combining a microATX format with the brand new Intel Xeon processors E3-1200 V3 family and all its latest technologies, this board is a versatile solution for SMBs and independent professionals to build affordable yet high performing systems within compact rack or tower enclosures.
    From a mainstream intranet system performing standard tasks like file or print serving, a web server dedicated to a low traffic websites, a basic engineering or content creation workstation, to the building block of a computing grid or a render farm, the possibilities offered by this model equal its performance capabilities and make it a perfect candidate for a high value acquisition.
  • Xeon E3V3E5V2
  • Gigabit LAN
  • PCIe Gen.3
  • Red Hat Certified Hardware
    GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
microATX
244W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V3 product family
Supports 4th gen Intel® Core™ i3 processors
Socket
1 x LGA 1150
Chipset
Intel® C222
Memory
4 x DIMM slots
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600/(1866*) MHz

*Supported by Intel® Xeon® E3-1200 V4 processors only
LAN
2 x GbE LAN ports (Intel® I210-AT)
Video
Integrated in Aspeed® AST1300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x1 bus) slot
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x System fan headers
1 x PMBus connector
1 x IPMB connector
1 x SATA SGPIO header
1 x Clearing supervisor password jumper
1 x ME recovery jumper
1 x BIOS Recovery jumper
1 x Clear CMOS jumper
1 x CMOS battery
4 x SATA II 3Gb/s ports
2 x SATA III 6Gb/s ports
1 x SATA port 1 DOM support jumper
1 x SATA port 0 DOM support jumper
2 x USB 2.0 Type A connector
1 x USB 3.0 header
1 x ME update jumper
1 x Front panel header
1 x Back plane board header
1 x TPM header
1 x Serial header
1 x Case open intrusion header

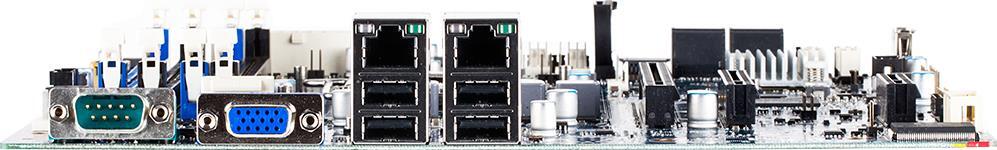

Rear I/O
4 x USB 2.0
1 x Serial
1 x VGA
2 x RJ45
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 (x86/x64)
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)

Red Hat Enterprise Linux 6.1 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)

SUSE Linux Enterprise Server 11.3 (x86/x64)
Board Management
-
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M6LASLMR-00
Bulk: 9M6LASLNR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

  • Choose your OS
  • Choose your OS
  • Windows Server 2012 R2 64bit
  • Windows Server 2012 64bit
  • Windows Server 2008 R2 64bit
  • Windows Server 2008 R2
  • Windows Server 2008 64bit
  • Windows Server 2008 32bit
  • Windows 7 64bit
  • Windows 7 32bit
  • SuSE Linux Enterprise 11.3 64bit
  • SuSE Linux Enterprise 11.3 32bit
  • Red Hat Enterprise Linux Server 6.4 64bit
  • Red Hat Enterprise Linux Server 6.4 32bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 9.4.0.1027
5.23 MB
2014/05/15
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
2014/05/15
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 3.8.0.1111
16.07 MB
2014/05/16
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 3.8.0.1111
3.55 MB
2014/05/16
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 3.0.0.16
5.2 MB
2014/05/20
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2008 R2 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 0.98
26.52 MB
2014/02/10
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
ASPEED Graphic Driver
Version : 0.98
26.52 MB
2014/02/10
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
