• Designed for Content Creation

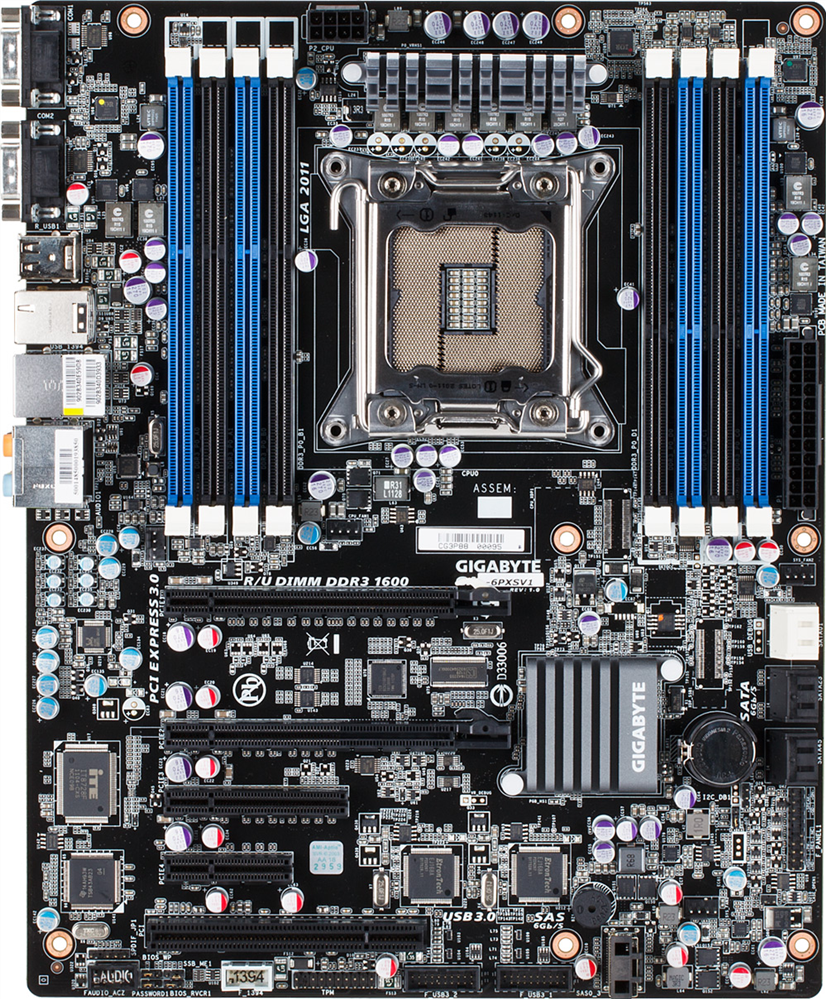

    The 6PXSV Series being the only ATX boards supporting the Intel Xeon E5-1600 V2 & E5-2600 V2 processors, ECC memory and boasting the C604 chipset, they will be the perfect solution for professional users and prosumers wishing to build compact yet highly productive workstations that will boost their workflow.
  • Intel® Xeon® Processor E5-2600 V2 Product Family
    Deployable through a simple BIOS update, the support of Intel Xeon processors E5-1600 V2 & 2600 V2 product families delivers the benefits of the 22nm tri-gate process technology to the high end server industry. Those benefits include, among others, higher frequencies, higher core counts (up to 12 cores / 24 threads) and larger last-level caches, but especially a much more varied mix of core/frequencies with notably the introduction of a new dual socket workstation segment. This new die shrink also allows for overall energy efficiency increase, with up to 30% average decrease in idle power consumption.
    Finally, virtualization applications will benefit from increased performance thanks to the Advanced Programmable Interrupt Controller (APIC) technology, and more security features are included in the mix as well, such as the Intel® Platform Protection Technology with OS Guard, and Intel® Data Protection Technology with Secure Key.
  • Faster Memory, With GIGABYTE Only
    Always eager to go beyond the industry standards, GIGABYTE’s engineering has enabled through its capabilities in design, PCB layout and BIOS fine-tuning the support of 1866 MHz memory frequency running at higher DIMM population (8 DIMMs per socket) where Intel’s standard and the rest of the market’s products will typically operate memory speed downgrade and support 1866 MHz at lower DIMM population only (4 DIMMs per socket). GIGABYTE therefore offers at launch on its 2011 socket based products this unique feature which will benefit to high density and memory intensive applications, such as high frequency trading, telecommunication networks, mobile data transfers, and so on.
  • Digital Power Control
    The GA-6PXSV1 includes GIGABYTE’s digital PWM controllers, guaranteeing a dynamic power supply to the processor and memory with an ultra-fast response time. Built with advanced calibration tools, they allow to get the purest and efficient electrical supply to date. When the CPU workloads vary in function of the applications running, the Intel Turbo Boost Technology will do a dynamic overclock of the CPU cores. This is where the digital PWMs outshine the previous analog solutions. This way the CPUs operations are much more stable, and the overall reliability of the system is greatly improved.
  • PCIe Gen.3
  • SATA3.0
  • Firewire
  • HD Audio
  • Red Hat Certified Hardware
    GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
  • VMware Ready
    The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
    The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
ATX
305W x 244D (mm)
CPU
Supports:
  • Intel® Xeon® E5-2600 V2 processors
  • Intel® Xeon® E5-1600 V2 processors
  • Intel® Xeon® E5-2600 processors
  • Intel® Xeon® E5-1600 processors
Socket
1 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C604
Memory
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel® Xeon® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
1 x GbE LAN port (Intel® 82579LM)
Video
-
Audio
Realtek® ALC892 controller
  • Supports 2/4/5.1/7.1 channel configurations
  • Support for Dolby Home Theater
  • Support for S/PDIF In/Out
  • Support for CD-In
SAS
1 x Mini-SAS (for 4 x SAS 3Gb/s ports)
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Intel® SAS RAID 0/1/10
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x8 bus) slot
1 x PCIe x4 (Gen2 x4 bus) slot
1 x PCI slot
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x System fan headers
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x CMOS battery
1 x Power LED header
1 x Clear CMOS jumper
1 x Front panel connector
1 x Front audio header
1 x Mini-SAS connector
2 x USB 3.0 headers
1 x TPM header
1 x IEEE 1394 header
1 x BIOS write protect jumper
1 x ME recovery jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x S/PDIF header

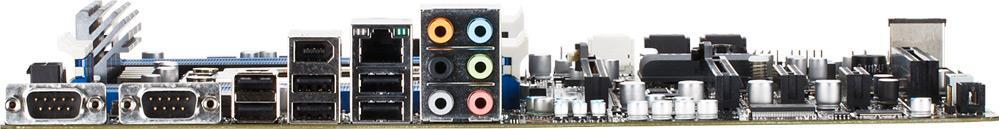

Rear I/O
6 x USB 2.0
1 x IEEE 1394
2 x Serial
1 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows 7 (x86/x64)

Red Hat Enterprise Linux 5.7 (x86/x64)
Red Hat Enterprise Linux 6.1 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
-
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M6PXSV1MS-00
