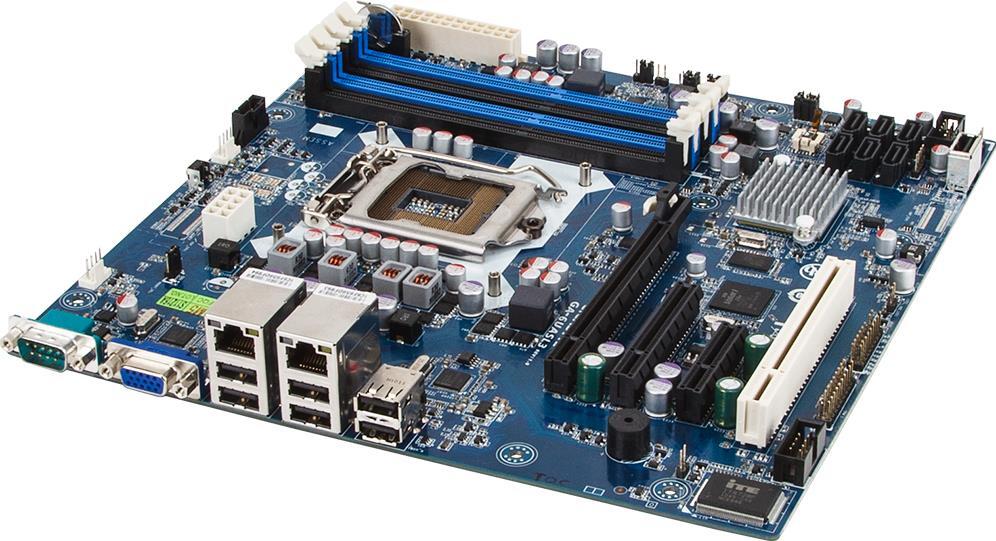

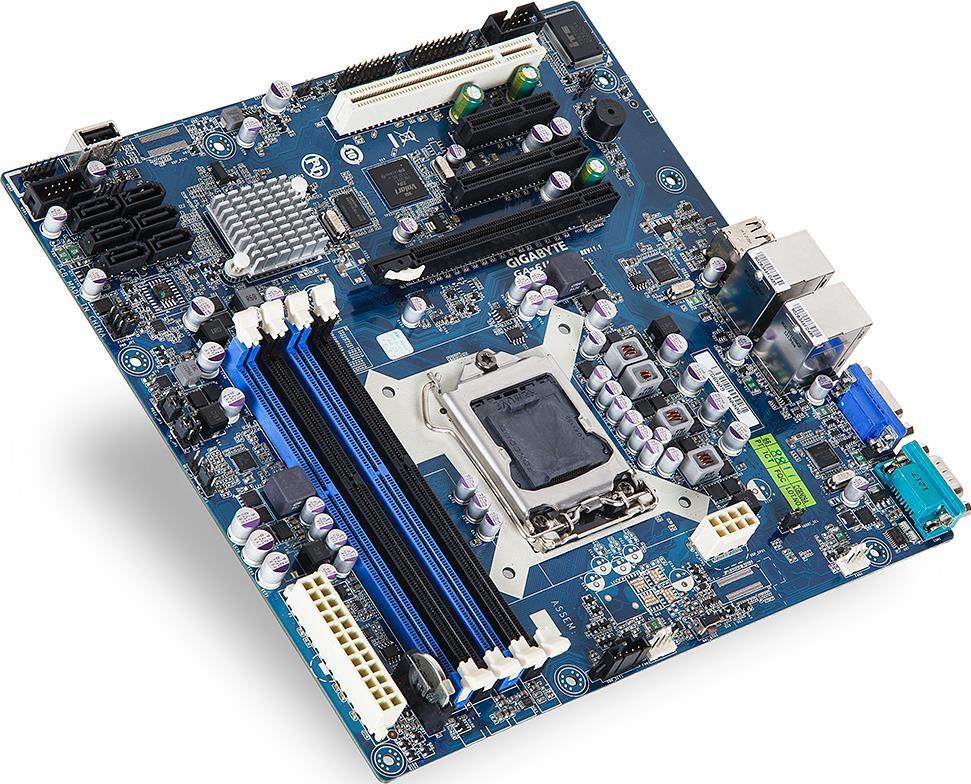

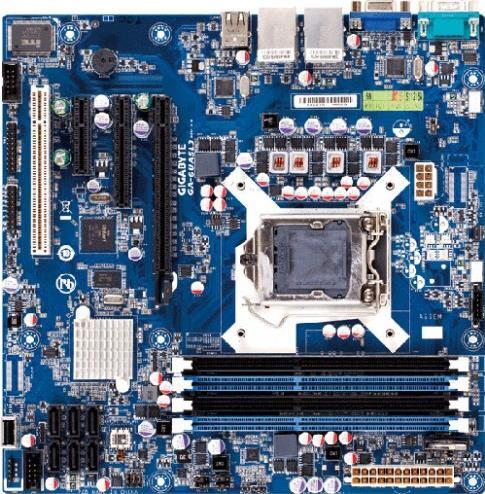

• The Power of Xeon on a Compact Board
    By combining a microATX form factor with the Intel Xeon processors E3-1200 V2 family, this board is a convenient and versatile solutions for SMBs to build affordable yet high performing tower servers.
  • Intel Xeon Inside
    Intel Xeon Inside
  • PCIe Gen.3
  • Red Hat Certified Hardware
    GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
  • VMware Ready
    The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
    The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
microATX
244W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 & E3-1200 V2 product families
Socket
1 x LGA 1155
Chipset
Intel® C202
Memory
4 x DIMM DDR3 slots
Dual channel memory architecture
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1.5V modules: 1600/1333/1066 MHz
LAN
2 x GbE LAN ports (Intel® 82574L)
Video
XGI® Volari Z9s
Supports 64MB VRAM
Audio
-
SAS
-
SATA
6 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x2 bus) slot
1 x PCI slot
Internal I/O
1 x USB 2.0 Type A connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA II 3Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x NMI switch
1 x Front panel header
2 x USB 2.0 headers
1 x Serial header
1 x TPM header

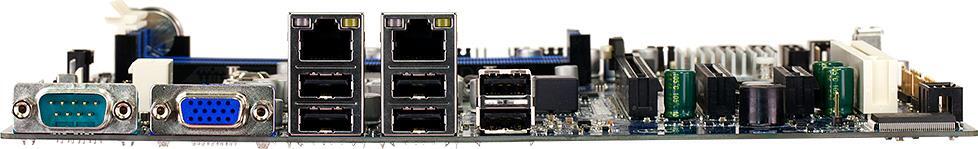

Rear I/O
6 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
TPM
1 x TPM header
OS Compatibility
Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)

Red Hat Enterprise Linux 6 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
HW Monitor
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M6UASL3MR-00
Bulk: 9M6UASL3NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

  • All
  • All
  • Windows Server 2012 R2 64bit
  • Windows Server 2012 64bit
  • Windows Server 2008 R2 64bit
  • Windows Server 2008 R2
  • Windows Server 2008 64bit
  • Windows Server 2008 32bit
  • Windows 7 64bit
  • Windows 7 32bit
  • SuSE Linux Enterprise 11.3 64bit
  • SuSE Linux Enterprise 11.3 32bit
  • Red Hat Enterprise Linux Server 6.4 64bit
  • Red Hat Enterprise Linux Server 6.4 32bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 9.4.0.1027
5.23 MB
2014/05/15
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
2014/05/15
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 3.8.0.1111
16.07 MB
2014/05/16
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 3.8.0.1111
3.55 MB
2014/05/16
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 3.0.0.16
5.2 MB
2014/05/20
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2008 R2 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 0.98
26.52 MB
2014/02/10
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
XGI Graphic Driver
Version : 1.13.00
7.19 MB
2015/08/18
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
BIOS
Description
Version
Size
Date
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
