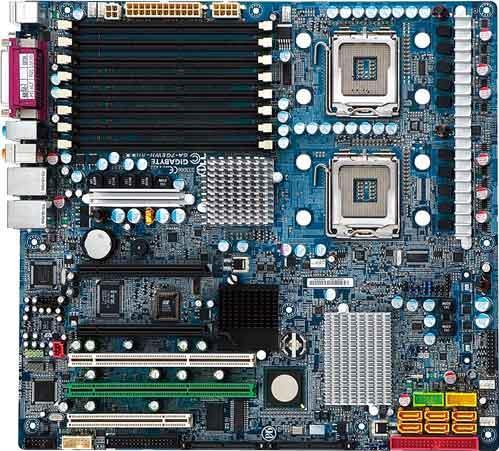

GA-7GEWH-RH

Legacy | Software updates supported

Rev. 2.0 Rev. 1.0

Versatility based on Intel^® 5000X chipset for high-end workstation
Support dual Intel Xeon^® 5000 series processors included of upcoming 45nm dual-core/quad-core with enhanced virtualization
Memory capacity upto 32GB FB-DIMM DDR2-533/667 for virtualization and server consoildation
Thanks to "platformization", I/OAT provides higher network throughput with lower processor utilization
Two PCI-E slots for flexible expansion to persue high -performance graphic adapters
One PCI-X 64bit/133MHz slot, one PCI-X 100MHz slot and one PCI slot for legacy adapters protect existed investment
Onboard IEEE1394 beneficail for multimedia applications

SPECIFICATIONS

CPU

Dual Quad-Core/Dual-Core Intel^® Xeon^® processors
1066/1333MHz/Socket LGA771

Chipset

Intel^®5000X
Intel^®6321ESB
Intel^®6702PXH-V

LAN

Intel^® 82563EB supports dual Gigabit Ethernet ports

Audio

HD Audio CODEC
(Realtek^® ALC883 for Visata Premium)

SATA

Build-in Intel^®ICH9R supports six independant SATA controllers, each controller capable up to 3.0Gb/second transfer rate

RAID

Intel^® SW RAID 0, 1, 10, 5(Windows only)

Expansion Slots

1 x PCI-E x16
1x PCI-E x8
1 x PCI-X 133MHz
1 x PCI-X 100MHz
1 x PCI 32/33MHz

Internal I/O

1 x IDE
1 x Floppy
6 x Serial ATA 3Gb/s connector
1 x COM
2 x USB 2.0

Rear I/O

2 x PS/2
4 x USB 2.0
1 x Parallel
1 x COM
2 x LAN RJ45
6 x Audio jacks
1 x Optical SPDIF OUT
1 x Coaxial SPDIF OUT

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.

SUPPORT

Downloads

Driver
BIOS

Manual
Support List

Online Support

Driver

BIOS

QVL

All
All
Windows XP 64bit
Windows XP 32bit
Windows 2000

Audio

Version

Size

Date

HD AUDIO CODEC (REALTEK ALC883 for VISTA PREMIUM)

Version : 1.43

24.09 MB

Oct 16, 2007

Download

OS: Windows 2000,Windows XP 32bit,Windows XP 64bit

Chipset Update Patch

Version

Size

Date

Intel INF driver
For Windows Vista* (Beta 2 version)

Version : 8.1.1.1001

1.81 MB

Oct 16, 2007

Download

OS: Windows 2000,Windows XP 32bit,Windows XP 64bit

Host RAID

Version

Size

Date

Intel Host RAID driver

Version : 6.0.0.1022

4.94 MB

Oct 16, 2007

Download

OS: Windows 2000,Windows XP 64bit

For iButton nly

Version : 04.24.0628.2006

0.74 MB

Oct 16, 2007

Download

OS: Windows 2000,Windows XP 32bit,Windows XP 64bit

LAN

Version

Size

Date

Lan driver

Version : 8.7.1.0

65.42 MB

Oct 16, 2007

Download

OS: Windows 2000,Windows XP 32bit,Windows XP 64bit

SAS

Version

Size

Date

Driver for SAS 1068

Version : 1.21.21.00

130.71 MB

Oct 16, 2007

Download

OS: Windows 2000,Windows XP 32bit,Windows XP 64bit

BIOS

Description

Version

Size

Date

BIOS For GA-7GEWH-RH 2.0

Version : F6

0.67 MB

Sep 25, 2009

Download

1. Update MegaRAID option ROM "mtp1459r.rom".

2. Support PCI 32bit.

3. Fix that CPU-z would appear 16 Memories.

Version : F5

0.67 MB

Apr 06, 2009

Download

Added Onboard Audio disabled/Enabled function
Update Kernel for support Harpertown processor

Version : F3

1.34 MB

Apr 18, 2008

Download
