GA-7PESVL
Discontinued
Intel® C602 chipset
- Intel® Xeon® processor E5-2600 & E5-2600 V2 product families
- 8 x RDIMM/UDIMM ECC DIMM slots
- 2 x GbE LAN ports (Intel® I210)
- 2 x SATA III 6Gb/s + 8 x SATA II 3Gb/s
- Aspeed® AST2300 remote management controller
-
Intel® Xeon® Processor E5-2600 V2 Product FamilyDeployable through a simple BIOS update, the support of Intel Xeon processors E5-1600 V2 & 2600 V2 product families delivers the benefits of the 22nm tri-gate process technology to the high end server industry. Those benefits include, among others, higher frequencies, higher core counts (up to 12 cores / 24 threads) and larger last-level caches, but especially a much more varied mix of core/frequencies with notably the introduction of a new dual socket workstation segment. This new die shrink also allows for overall energy efficiency increase, with up to 30% average decrease in idle power consumption.
Finally, virtualization applications will benefit from increased performance thanks to the Advanced Programmable Interrupt Controller (APIC) technology, and more security features are included in the mix as well, such as the Intel® Platform Protection Technology with OS Guard, and Intel® Data Protection Technology with Secure Key. -
Faster Memory, With GIGABYTE OnlyAlways eager to go beyond the industry standards, GIGABYTE’s engineering has enabled through its capabilities in design, PCB layout and BIOS fine-tuning the support of 1866 MHz memory frequency running at higher DIMM population (8 DIMMs per socket) where Intel’s standard and the rest of the market’s products will typically operate memory speed downgrade and support 1866 MHz at lower DIMM population only (4 DIMMs per socket). GIGABYTE therefore offers at launch on its 2011 socket based products this unique feature which will benefit to high density and memory intensive applications, such as high frequency trading, telecommunication networks, mobile data transfers, and so on.
-
Dual GbE LAN
-
Digital Power ControlThe GA-7PESVL includes GIGABYTE’s digital PWM controllers, guaranteeing a dynamic power supply to the processors and memory with an ultra-fast response time. Built with advanced calibration tools, they allow to get the purest and most efficient electrical supply to date. When the CPU workloads vary in function of the applications running, the Intel Turbo Boost Technology will do a dynamic overclock of the CPU cores. This is where the digital PWMs outshine the previous analog solutions. This way the CPUs operations are much more stable, and the overall reliability of the system is greatly improved.
-
Server ManagementThe GA-6UASV4 is equipped with an ASPEED AST2150 board management controller (BMC), providing support for:
- iKVM
- Native PCIe
- 2D Video Graphic Adapter with PCIe bus interface
-
Red Hat Certified HardwareGIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
E-ATX / SSI EEB
305W x 330D (mm)
305W x 330D (mm)
CPU
Supports:
- Intel® Xeon® E5-2600 V2 processors
- Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
- Intel® Xeon® E5-2600 processors
- Intel® Xeon® E5-1600 processors (single CPU configuration only)
Socket
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C602
Memory
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
2 x GbE LAN ports (Intel® I210)
1 x 10/100 management LAN
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
128MB memory
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
128MB memory
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
2 x SATA III 6Gb/s
8 x SATA II 3Gb/s
8 x SATA II 3Gb/s
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
2 x PCIe x16 (Gen3 x16 bus) slots
2 x PCIe x16 (Gen3 x8 bus) slots
2 x PCIe x16 (Gen3 x8 bus) slots
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 2.0 header
2 x SATA III 6Gb/s ports
8 x SATA II 3Gb/s ports
2 x SATA port DOM support jumpers
2 x SATA SGPIO headers
1 x Front panel header
1 x HDD back plane board header
1 x TPM header
1 x Serial header
1 x IPMB header
1 x Chassis intrusion header
1 x PMBus jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3_MASK jumper
1 x Flash descriptor security jumper
1 x Force to Stop FRB3 Timer jumper
1 x BIOS write protect jumper
1 x SKU key header
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 2.0 header
2 x SATA III 6Gb/s ports
8 x SATA II 3Gb/s ports
2 x SATA port DOM support jumpers
2 x SATA SGPIO headers
1 x Front panel header
1 x HDD back plane board header
1 x TPM header
1 x Serial header
1 x IPMB header
1 x Chassis intrusion header
1 x PMBus jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3_MASK jumper
1 x Flash descriptor security jumper
1 x Force to Stop FRB3 Timer jumper
1 x BIOS write protect jumper
1 x SKU key header

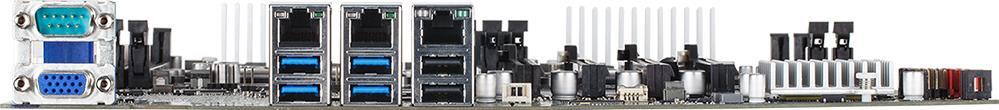

Rear I/O
4 x USB 3.0
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x86/x64)
Red Hat Enterprise Linux 5.8 (x64)
Red Hat Enterprise Linux 6.3 (x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
Windows Server 2012 (x86/x64)
Red Hat Enterprise Linux 5.8 (x64)
Red Hat Enterprise Linux 6.3 (x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M7PESVLMR-00
Bulk: 9M7PESVLNR-00
Bulk: 9M7PESVLNR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Firmware
QVL
- All
- All
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Windows Server 2008 R2
- Windows Server 2008 64bit
- Windows Server 2008 32bit
- Windows 8.1 64bit
- Windows 7 64bit
- Windows 7 32bit
- SuSE Linux Enterprise 11.3 64bit
- SuSE Linux Enterprise 11.3 32bit
- Red Hat Enterprise Linux Server 6.4 64bit
- Red Hat Enterprise Linux Server 6.4 32bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 9.4.0.1027
5.23 MB
May 15, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Management Engine Driver
Version : 1.2.3.2003
2.03 MB
May 03, 2017
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
May 15, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
May 15, 2014
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
SAS
SAS
Version
Size
Date
LSI SAS2208 Hardware RAID Driver for Linux
Version : 6.704.15.00-1
324.45 MB
Sep 16, 2014
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
LSI SAS2208 Hardware RAID Driver for Windows
Version : 6.704.12.00
9.97 MB
Sep 17, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit
LSI SAS3008/SAS2308/SAS2208 Utility
Version : 13.04.03.01
73.01 MB
Sep 23, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 3.8.0.1111
16.07 MB
May 16, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 3.8.0.1111
3.55 MB
May 16, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 3.8.0.1111
16.07 MB
May 16, 2014
OS: Windows 8.1 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 3.8.0.1111
3.55 MB
May 16, 2014
OS: Windows 8.1 64bit
USB 3.0
USB 3.0
Version
Size
Date
Etron USB 3.0 Driver
Version : 0.118
22.85 MB
Nov 26, 2013
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 0.98
26.52 MB
Feb 10, 2014
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
ASPEED Graphic Driver
Version : 0.98
26.52 MB
Feb 10, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
