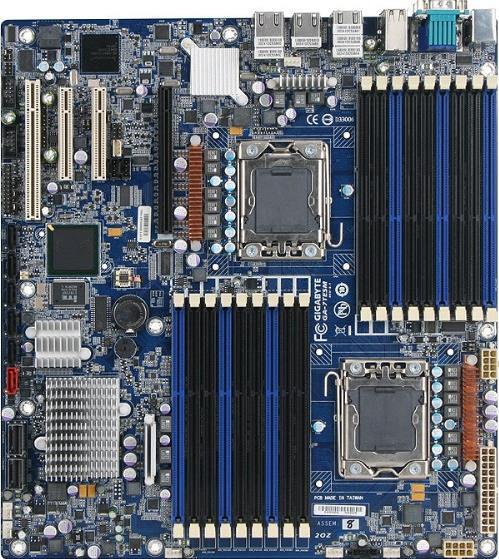

GA-7TESM
Discontinued

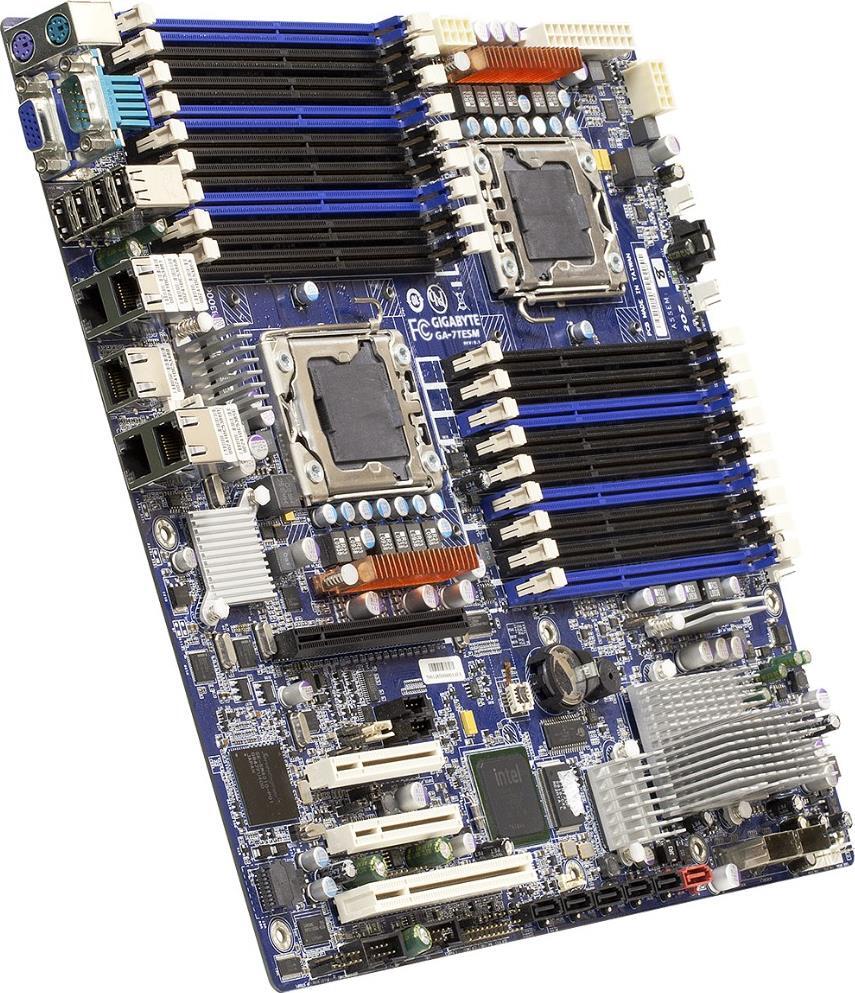

Intel 5520 chipset + ICH10R
- Up to two Intel Xeon processors 5500 or 5600 series.
- Up to 18 DIMMs of registered or unbuffered DDR3 memory.
- Up to date the only motherboard model to support a stable memory configuration of 3DPC, up to 288GB running at 1333Mhz (only with Netlist Hypercloud 8GB and 16GB memory modules)
- Well-rounded expansion: one PCIe 2.0 x16, one PCIe 2.0 x8, one PCIe 2.0 x4, and one PCI.
- Onboard SAS controller with RAID 0/ 1/ 10 and optional RAID 5 via iButton.
- 4 ports GbE provide ample network bandwidth.
- Onboard ServerEngines Pilot II providing secure IP-based remote server management.
-
Boost the Memory Performance of Your DatacenterGIGABYTE TECHNOLOGY Co. Ltd., is proud to announce that its GA-7TESM server motherboard together with Hypercloud memory modules from NETLIST has reached unprecedented memory performance that opens new perspective for the cloud computing, virtualization, and high performance computing industries. This unique combination of high quality components has proved to be the only one to date to reach a maximum memory frequency at a full 3DPC population successfully. GIGABYTE and NETLIST have now enabled a maximum capacity of 288GB DRAM runnning at a 1333MT/s speed on a dual processor motherboard: This new validated solution answers a significant need to run more bandwidth intensive, high performance computing applications among organizations for which improving server utilization is a critical objective. Thanks to the association of GIGABYTE's leading motherboard design and NETLIST 's cutting-edge technologies in memory modules, a superior computing solution is now available for advanced memory intensive applications relying on high density server systems.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
E-ATX / SSI EEB
305W x 330D (mm)
305W x 330D (mm)
CPU
- Dual Intel Xeon processor 5500/ 5600 series
Chipset
- Intel 5520 chipset with Intel ICH10R
Memory
- 18 DDR3 DIMM sockets support registered or ECC unbuffered
- 6 channel native 1066/ 1333MHz
LAN
- 4 Gigabit LAN (Intel 82576EB + Dual Intel 82574L)
Video
- Matrox 200e (ServerEngines Pilot II)
SAS
- 8 ports SAS 6Gbps via LSI SAS2008
SATA
- 6 ports SATA 3Gbps via Intel ICH10R
RAID
- LSI SW RAID 0/ 1/ 1E/ 10
- Intel SW RAID 0/ 1/ 5/ 10
- Optional LSI RAID 5
- Optional 8 ports SAS 6Gbps HW RAID add-on card: GC-RLD087-RH/ GC-RLE087-RH
- Optional 8 ports SAS 6Gbps SW RAID add-on card: GC-RLE086-RH
Expansion Slots
- 1 PCI Express 2.0 x16
- 1 PCI Express 2.0 x8
- 1 PCI Express 2.0 x4 (x8 mechanical)
- 1 PCI
Board Management
- ServerEngines Pilot II (IPMI 2.0) + iKVM (Optional)
Reference Numbers
- 9M7TESMNR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Firmware
QVL
- All
- All
- Windows XP 64bit
- Windows XP 32bit
- Windows Vista 64bit
- Windows Vista 32bit
- Windows Server 2008 64bit
- Windows Server 2008 32bit
- Windows Server 2003 32bit
- Windows 2000
- UnixWare
- RedHat Enterprise Linux 5 64bit
- RedHat Enterprise Linux 5
- Open Server
- Novell Netware
- FreeBSD
Chipset Update Patch
Chipset Update Patch
Version
Size
Date
Intel Chipset INF for GS-R22T61 / GS-R22T81
Version : 9.1.0.1014
2.39 MB
Nov 23, 2009
OS: Windows 2000,Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Vista 32bit,Windows Vista 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit
LAN
LAN
Version
Size
Date
Intel GbE LAN Driver for Windows, FreeBSD, Linux, NetWare Server, SCO Open Server and Unixware
-
2.61 MB
Nov 23, 2009
OS: Windows 2000,Windows Server 2003 32bit,FreeBSD,Novell Netware,Open Server,UnixWare,Windows Server 2008 32bit,Windows Server 2008 64bit
SATA
SATA
Version
Size
Date
Intel SATA RAID/AHCI driver
Version : 8.7.0.1007.
0.46 MB
Nov 23, 2009
OS: Windows 2000,Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Vista 32bit,Windows Vista 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit
VGA
VGA
Version
Size
Date
Linux VGA Driver for RHEL and SuSE
Version : 4.3.21
7.55 MB
Nov 23, 2009
OS: RedHat Enterprise Linux 5,RedHat Enterprise Linux 5 64bit
Windows VGA Driver for Server Engines Pilot II
Version : 20080229.1966
1.41 MB
Nov 23, 2009
OS: Windows Server 2003 32bit,Windows Server 2008 32bit,Windows Server 2008 64bit
BIOS
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Firmware
Description
Version
Size
Date
The batch file 7TESM.bat or 7TESM1.bat base on your MB model name
Version : 106
6.34 MB
Jan 13, 2011
English
Description
Version
Size
Date
