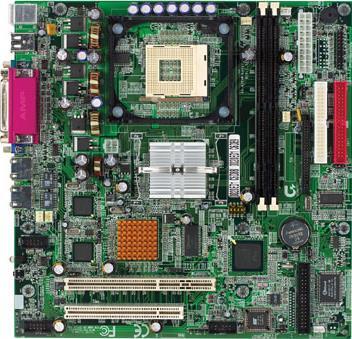

GA-8IDMRLegacy | Software updates supported
- Single Intel® Pentium 4 (mPGA478) processor
- Dual Intel 10/100 LAN
- MicroATX Form Factor
- Specifications
- Support
- Related Resources
Specifications
CPU
- Intel® Pentium 4 (mPGA478) Processor up to 2.2 GHz
Chipset
- Intel® Brookdale Chipset (845)
LAN
- Two Intel® Pro/100+ Server Ethernet Controllers（Intel 82550PM）Supports 100BASE-T and 10BASE-T, RJ45 output
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- Wake On LAN (WOL)
Video
- ATI Rage XL with 8MB memory
Expansion Slots
- Two 32bit/33MHz PCI Slots
Rear I/O
- 2 x PS/2
- 2 x USB
- 1 x COM
- 1 x LPT
- 2 x LAN RJ45
