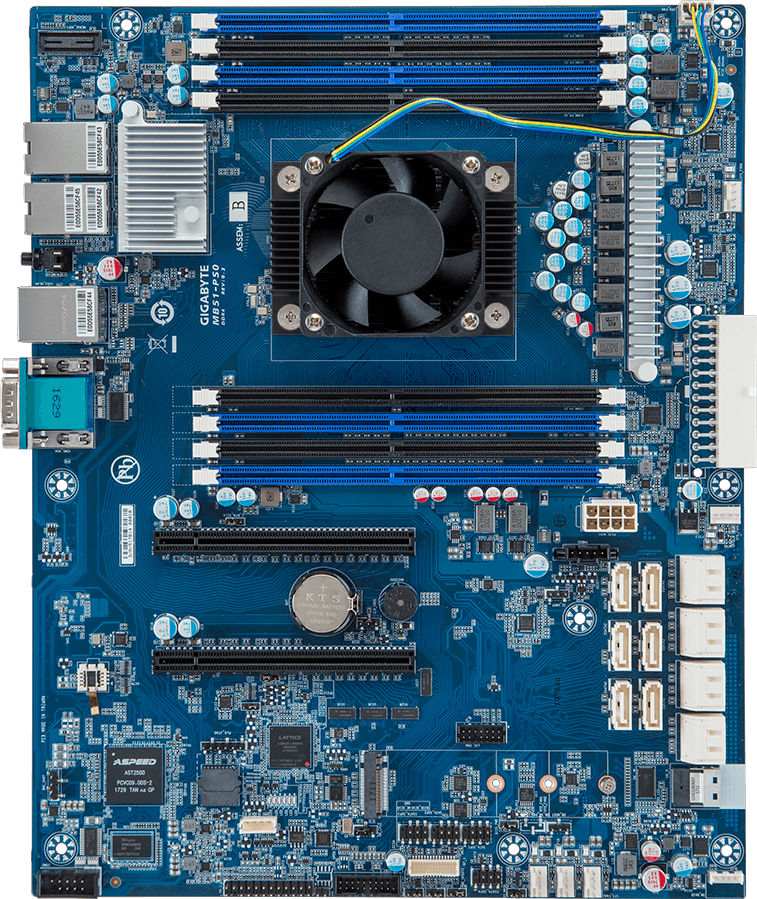

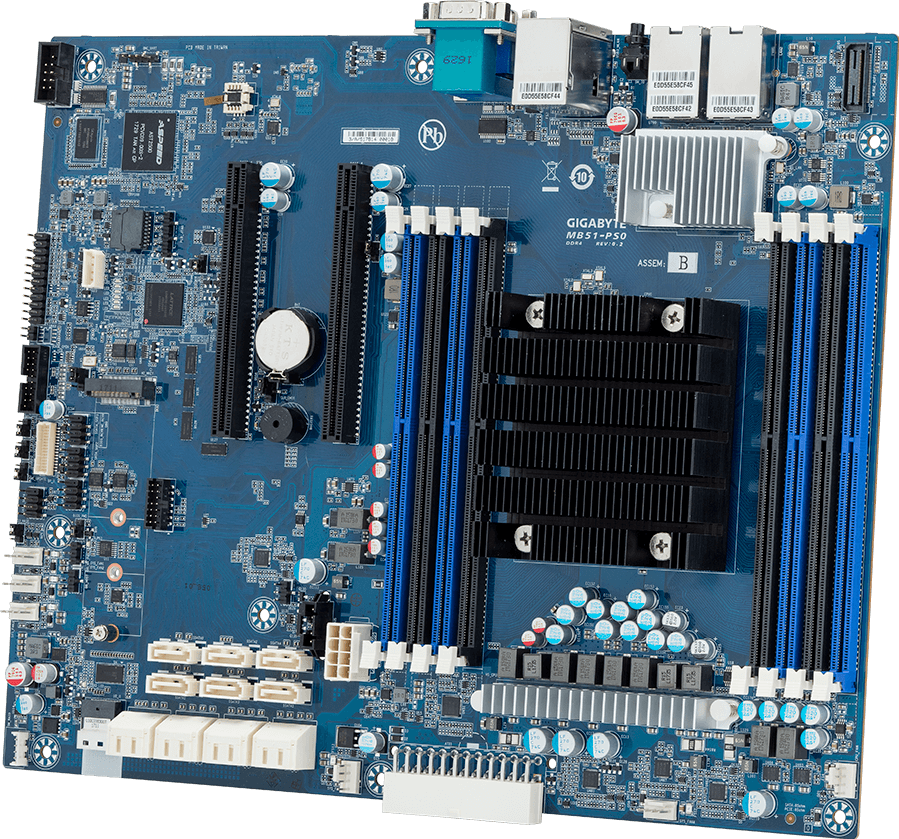

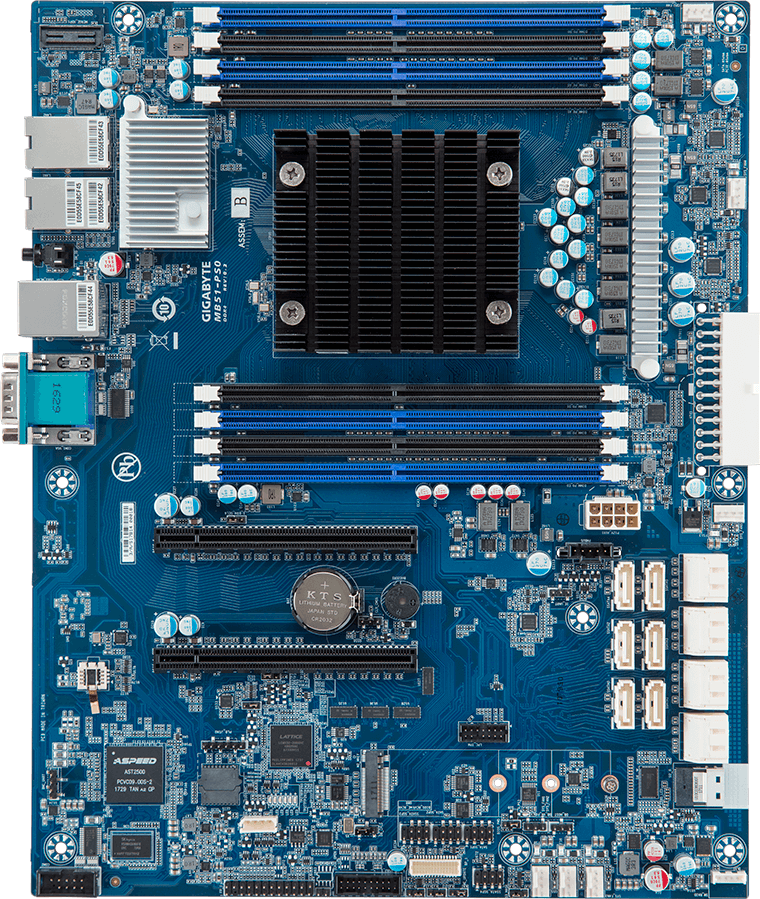

    MB51-PS0 (rev. 1.0)

    • ATX form factor
    • Intel® Xeon® D-2123IT/D-2143IT processor
    • Single processor, FCBGA 2518
    • 4-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
    • 2 x 10G BASE-T LAN ports (Intel® X557-AT2)
    • 1 x Dedicated management port
    • 14 x SATA III 6Gb/s ports
    • 1 x M.2 slot with PCIe Gen3 x4 interface
    • 1 x U.2 slot with PCIe Gen3 x4 interface
    • 2 x PCIe Gen3 x16 and x8 expansion slots
    • Aspeed® AST2500 remote management controller
    Request a Quote
    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

    SPECIFICATIONS

    Form Factor
    ATX
    305W x 244D (mm)
    CPU
    Intel® Xeon® D-2123IT processor 2.2GHz
    Up to 3.0GHz with Intel® Turbo Boost Technology 2.0
    4 cores
    Single processor, TDP 60W

    or

    Intel® Xeon® D-2143IT processor 2.2GHz
    Up to 3.0GHz with Intel® Turbo Boost Technology 2.0
    8 cores
    Single processor, TDP 60W

    NOTE:
    Due to processor TDP 60W, the package is for system integration only.
    Please select suitable thermal solution.
    Socket
    FCBGA 2518
    Chipset
    SoC
    Memory
    8 x DIMM slots
    DDR4 memory supported only
    4-channel memory architecture
    RDIMM and LRDIMM module supported
    Up to 512GB memory capacity
    1.2V modules: 2400 MHz
    LAN
    2 x 10G BASE-T LAN ports (Intel® X557-AT2)
    1 x 10/100/1000 management LAN
    Video
    Integrated in Aspeed® AST2500
    2D Video Graphic Adapter with PCIe bus interface
    1920x1200@60Hz 32bpp, DDR4 SDRAM
    Audio
    N/A
    SAS
    N/A
    SATA
    14 x 7-pin SATA III 6Gb/s ports
    RAID
    N/A
    Expansion Slots
    Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
    Slot_4: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot

    1 x M.2 slot:
    - M-key
    - PCIe Gen3 x4 per slot
    - Shared with slot_4
    - Supports NGFF-2240/2260/2280 cards

    1 x U.2 port:
    - SlimSAS type
    - PCIe Gen3 x4 per port
    - Shared with slot_4
    Internal I/O
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    14 x 7-pin SATA connectors
    1 x M.2 slot
    1 x SlimSAS connector
    1 x CPU fan header
    5 x System fan headers
    1 x USB 3.0 header
    1 x COM_2 header
    1 x TPM header
    1 x Front panel header
    1 x PMBus connector
    1 x IPMB connector
    1 x Clear CMOS jumper
    1 x BIOS recovery jumper
    Rear I/O
    2 x USB 3.0
    1 x VGA
    2 x RJ45
    1 x MLAN
    1 x COM_1
    TPM
    1 x TPM header with Low pin count interface
    Optional TPM2.0 kit: CTM000
    OS Compatibility
    Windows Nano Server
    Windows Server 2016
    Windows Server 2012 R2 with Update
    Red Hat Enterprise Linux 7.4
    SUSE Linux Enterprise Server (x64)
    Ubuntu
    VMware
    Board Management
    Aspeed® AST2500 management controller
    Avocent® MergePoint IPMI 2.0 web interface:
    • Network settings
    • Network security settings
    • Hardware information
    • Users control
    • Services settings
    • IPMI settings
    • Sessions control
    • LDAP settings
    • Power control
    • Fan profiles
    • Voltages, fans and temperatures monitoring
    • System event log
    • Events management (platform events, trap settings, email settings)
    • Serial Over LAN
    • vKVM & vMedia (HTML5)
    PSU Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Operating Properties
    Operating temperature: 10°C to 40°C
    Operating humidity: 8-80% (non-condensing)
    Non-operating temperature: -40°C to 60°C
    Non-operating humidity: 20%-95% (non-condensing)
    Retail Packaging Content
    Defined by request
    Bulk Packaging Content
    5 x MB51-PS0
    5 x I/O shields
    Carton dimensions: 600 x 473 x 495 mm
    Reference Numbers
    Bulk: 9MB51PS0NR-00 (D-2123IT) / 9MB51PS1NR-00 (D-2143IT)

    Part Numbers:
    I/O shield: 12AIO-MB51P0-00R
    Fan-sink: 12SF2-01A066-00R
