SPECIFICATIONS

Form Factor
E-ATX
304.8W x 330.2D mm
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Dual processor, CPU TDP up to 270W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4677
Socket E
Chipset
Intel® C741 Chipset
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported

5th Gen Intel® Xeon®: Up to 5600MHz
4th Gen Intel® Xeon®: Up to 4800MHz
LAN
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
2 x 1Gb/s LAN ports (Intel® I210-AT)
NCSI function supported (by switch setting)

1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
SAS
N/A
SATA
3 x SlimSAS connectors for 12 x SATA 6Gb/s
2 x SATA 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1

2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
2 x M.2 slots
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x RJ45 COM
4 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
OS Compatibility
Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)
Board Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content

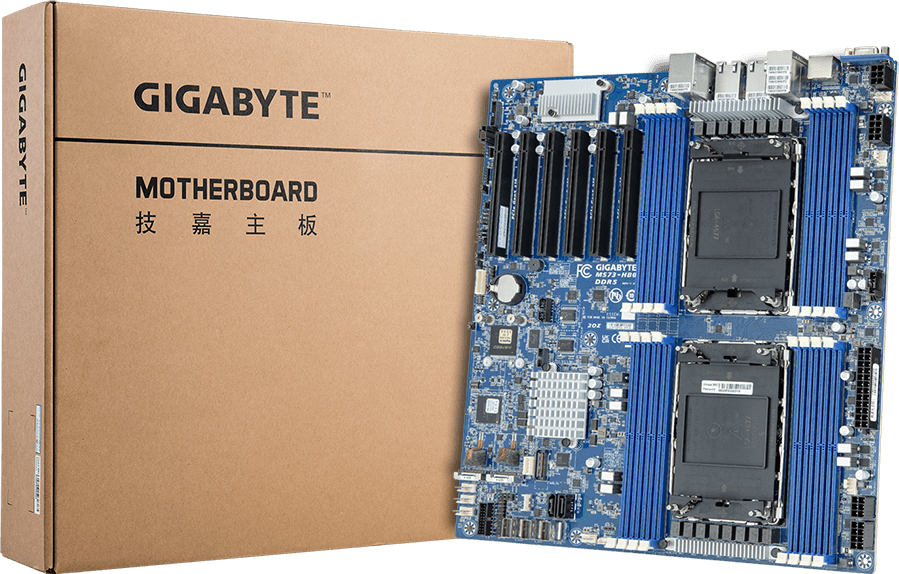

1 x MS73-HB0
1 x I/O shield
1 x Quick start guide
6 x Carrier clips
1 x SlimSAS to 4 x SATAIII 6Gb/s cable

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MS73-HB0
10 x I/O shields
60 x Carrier clips

Carton dimensions: 600 x 473 x 517 mm
Reference Numbers
Retail: 9MS73HB0MR-000-3*/1*
Bulk: 9MS73HB0NR-000-3*/1*

Part Numbers:

- I/O shield: 12AIO-MD72HB-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600800-A4R
