- MZ32-AR0
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x SlimSAS connectors for 4 x Gen4 NVMe
- 2 x SlimSAS connectors for 8 x SATA 6Gb/s
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 5 x PCIe Gen4 x16 and x8 expansion slots
- 2 x PCIe Gen3 x16 and x8 expansion slots
- 1 x OCP 2.0 Gen3 x16 mezzanine slot
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
E-ATX
305W x 330D mm
305W x 330D mm
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
*cTDP up to 280W
*Please make sure fansink supports over 280W.
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
*cTDP up to 280W
*Please make sure fansink supports over 280W.
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Audio
N/A
Storage Interface
4 x SlimSAS connectors for 4 x Gen4 NVMe
2 x SlimSAS connectors for 8 x SATA 6Gb/s
2 x SlimSAS connectors for 8 x SATA 6Gb/s
RAID
N/A
Expansion Slots
Slot_7: PCIe x16 (Gen4 x16) slot, shared with 4 x NVMe
Slot_6: PCIe x16 (Gen4 x16) slot
Slot_5: PCIe x16 (Gen4 x8) slot
Slot_4: PCIe x16 (Gen4 x16) slot
Slot_3: PCIe x16 (Gen4 x16) slot
Slot_2: PCIe x8 (Gen3 x0 or x8) slot
Slot_1: PCIe x16 (Gen3 x16 or x8) slot, shared with Slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 support NCSI function)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Support 2242/2260/2280 cards
Slot_6: PCIe x16 (Gen4 x16) slot
Slot_5: PCIe x16 (Gen4 x8) slot
Slot_4: PCIe x16 (Gen4 x16) slot
Slot_3: PCIe x16 (Gen4 x16) slot
Slot_2: PCIe x8 (Gen3 x0 or x8) slot
Slot_1: PCIe x16 (Gen3 x16 or x8) slot, shared with Slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 support NCSI function)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Support 2242/2260/2280 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 x2 header
1 x USB 2.0 x2 header
2 x M.2 slots
10 x SlimSAS connectors
1 x Front panel header
1 x Backplane board header
1 x COM_2 header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 x2 header
1 x USB 2.0 x2 header
2 x M.2 slots
10 x SlimSAS connectors
1 x Front panel header
1 x Backplane board header
1 x COM_2 header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

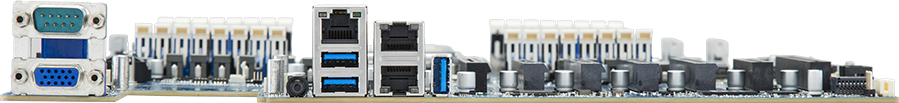

Rear I/O
3 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Board Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MZ32-AR0
1 x I/O shield
1 x Quick start guide
2 x SlimSAS to 4 x SATA 6Gb/s cables (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
2 x SlimSAS to 4 x SATA 6Gb/s cables (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MZ32-AR0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MZ32AR0MR-00-3*
Bulk: 9MZ32AR0NR-00-3*
Part Numbers:
- I/O shield: 12AIO-MZ32A2-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600800-A4R
Optional parts:
- Cables to enable Slot_7: 25CFM-450820-A4R
- Fansink: 12SF2-01A067-00R
Bulk: 9MZ32AR0NR-00-3*
Part Numbers:
- I/O shield: 12AIO-MZ32A2-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600800-A4R
Optional parts:
- Cables to enable Slot_7: 25CFM-450820-A4R
- Fansink: 12SF2-01A067-00R
