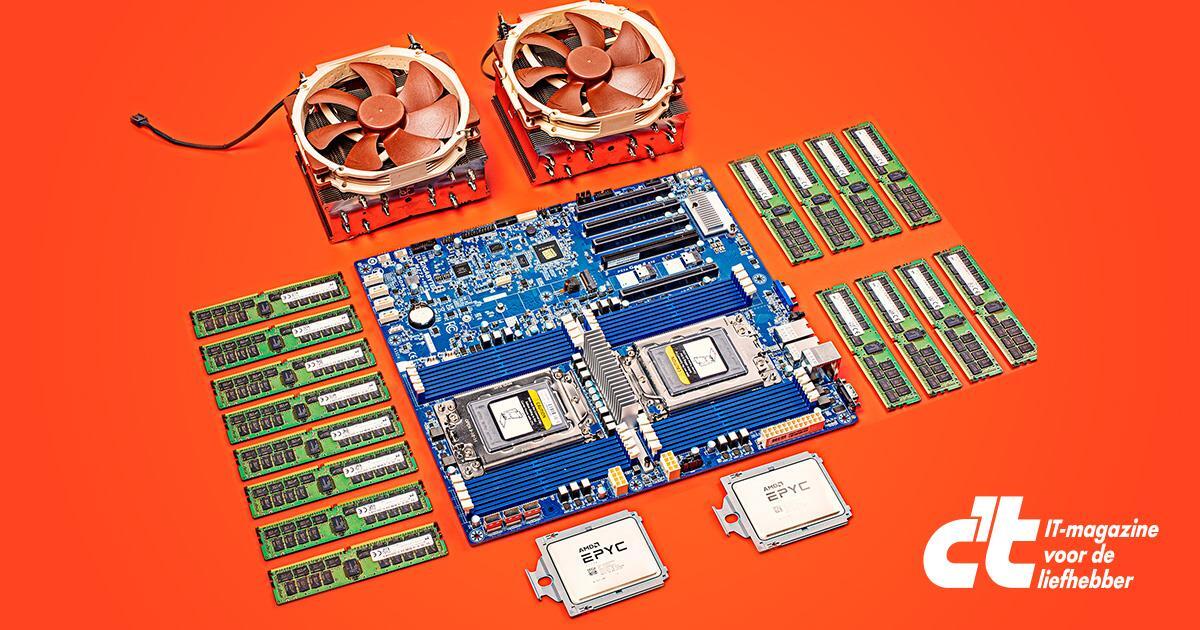

MZ72-HB2

E-ATX
305 x 330

AMD EPYC^™ 7003 Series Processors
AMD EPYC^™ 7002 Series Processors

Dual processor, TDP up to 280W

2 x LGA 4094
Socket SP3

System on Chip

16 x DIMM slots
Support DDR4 RDIMM/LRDIMM
8-Channel memory per processor
Up to 3200 MT/s

2 x 10Gb/s LAN (1 x Broadcom^® BCM57416)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in ASPEED^® AST2600
- 1 x VGA port

N/A

SlimSAS:
3 x SlimSAS 4i for 3 x Gen4 NVMe or 12 x SATA , from CPU_1 ^[1]
2 x SlimSAS 4i for 2 x Gen4 NVMe, from CPU_0

SATA 7-pin:
4 x SATA, from CPU_0

M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

^[1] To enable NVMe support, please navigate to the BIOS Setup section, then proceed to Advances > PCI Subsystem settings.

N/A

Slot_6: PCIe x16 (Gen4 x16), from CPU_0
Slot_4: PCIe x16 (Gen4 x16), from CPU_0
Slot_3: PCIe x16 (Gen4 x16), from CPU_1
Slot_2: PCIe x16 (Gen4 x8), from CPU_0
Slot_1: PCIe x16 (Gen4 x8), from CPU_1

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x M.2 slot
5 x SlimSAS 4i connectors
4 x SATA 7-pin connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

2 x USB 3.0 ports (Type-A)
1 x VGA port
1 x Serial port
2 x RJ45 port
1 x MLAN port
1 x ID button with LED

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

OS certifications:
Windows Server 2019
Windows Server 2022

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating temperature: 10°C to 40°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

1 x MZ72-HB2
1 x I/O shield
1 x Quick start guide
2 x SATA cables (500mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

10 x MZ72-HB2
10 x I/O shields

Carton dimensions: 600 x 473 x 495 mm

Retail: 9MZ72HB2MR-00-3*
Bulk: 9MZ72HB2NR-00-3*

Part Numbers:

- I/O shield: 12AIO-MZ72H0-00R
- SATA cable (500mm)(2 in 1 package): 25CF4-500541-K1R

Optional parts:

- CPU fansink (A)+(B)+(C):
  (A) Heatsink: 25ST1-243103-A0R
  (B) Fan: 25ST2-88382C-D0R
  (C) Fan extension power cable: 25CRI-350B02-A4R
