S260-NF1 (rev. 100)

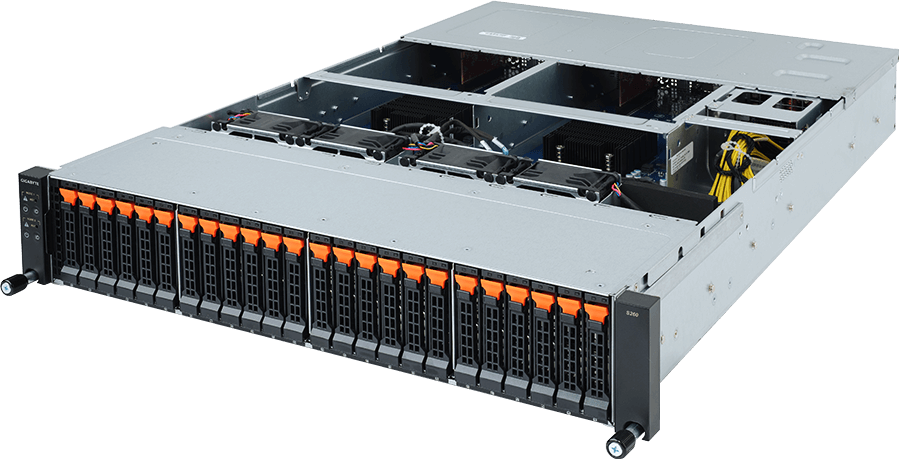

2U NVMe Over Fabric Storage
| Application:
Storage
Application:
- Western Digital Onyx NVMe Over Fabric storage controller
- Fully supported iWARP, RoCE v1 and v2
- Dual controllers architecture
- 1 x 100Gb or 2 x 50Gb Ethernet port(s) via QSFP28 interface
- 1 x AST2520 management port per node
- 24 x 2.5" NVMe hot-swappable SSD bays
- 3 x PCIe Gen3 expansion slots per node
- Dual 800W 80 PLUS Platinum redundant power supply
Request a Quote
1/5
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
440 x 87 x 695
440 x 87 x 695
Motherboard
2 x CPBD530
Embedded Microsemi PM8536B-FEI PICe switch with 96 Lanes
Pre-installed 1 x Western Digital Onyx NVMe Host Bus Adapter* in each CPBD530
Each CPBD530 board controls 24 x NVMe SSD devices with PCIe x2 bandwidth per port
*NOTE: Up to 3 x Western Digital Onyx NVMe Host Bus Adapters in each CPBD530 board
Embedded Microsemi PM8536B-FEI PICe switch with 96 Lanes
Pre-installed 1 x Western Digital Onyx NVMe Host Bus Adapter* in each CPBD530
Each CPBD530 board controls 24 x NVMe SSD devices with PCIe x2 bandwidth per port
*NOTE: Up to 3 x Western Digital Onyx NVMe Host Bus Adapters in each CPBD530 board
CPU
Western Digital Onyx NVMeOF Bridge ASIC
Socket
Embedded
Chipset
-
Memory
-
LAN
1 x 100Gb or 2 x 50Gb Ethernet port(s) via QSFP28 interface
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2520
Audio
-
Storage
24 x 2.5" NVMe hot-swappable SSD bays
SATA
-
SAS
-
RAID
-
Peripheral Drives
-
Expansion Slots
Per node:
Total 3 x PCIe x16 slots (Gen3 x16) for Western Digital Onyx NVMeOF HBAs per node
- 2 x PCIe x16 (Gen3 x16 bus) Full height slots
- 1 x PCIe x16 (Gen3 x16 bus) Low profile slot
Total 3 x PCIe x16 slots (Gen3 x16) for Western Digital Onyx NVMeOF HBAs per node
- 2 x PCIe x16 (Gen3 x16 bus) Full height slots
- 1 x PCIe x16 (Gen3 x16 bus) Low profile slot
Internal I/O
-
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Rear I/O
1 x QSFP28
1 x MLAN
1 x Serial port
1 x Power button with LED
1 x ID button with LED
1 x BMC Reset button
1 x System Reset button
1 x System status LED
1 x MLAN
1 x Serial port
1 x Power button with LED
1 x ID button with LED
1 x BMC Reset button
1 x System Reset button
1 x System status LED
Backplane I/O
Bandwidth: PCIe Gen3 x2 per port
TPM
-
Power Supply
2 x 800W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-240V~/ 10-4A, 50-60Hz
DC Input:
- 240Vdc/ 4.5A
DC Output:
- 800W
+12V/ 66A
+12Vsb/ 2.5A
80 PLUS Platinum
AC Input:
- 100-240V~/ 10-4A, 50-60Hz
DC Input:
- 240Vdc/ 4.5A
DC Output:
- 800W
+12V/ 66A
+12Vsb/ 2.5A
System Management
Aspeed® AST2520 management controller
OS Compatibility
-
Weight
Net Weight: 17 kg
Gross Weight: 28.8 kg
Gross Weight: 28.8 kg
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1038 x 697 x 311 mm
Packaging Content
1 x S260-NF1
1 x Rail kit
1 x Rail kit
Part Numbers
Barebone package: 6NS260NF1MR-00
Part Numbers:
- Controller board: 9CPBD530NR-00
- NVMeOF bridge controller: 25FCZ-ONYX20-M9R
- Rail kit: 25HB2-AN6103-K0R
- Back plane board: 9CBPD0O1NR-00
- Front panel board: 9CFPH004NR-00
- Power supply: 25EP0-208004-L0S
- Riser card - CRSD020: 9CRSD020NR-00
- NVMeOF bridge controller: 25FCZ-ONYX20-M9R
- Rail kit: 25HB2-AN6103-K0R
- Back plane board: 9CBPD0O1NR-00
- Front panel board: 9CFPH004NR-00
- Power supply: 25EP0-208004-L0S
- Riser card - CRSD020: 9CRSD020NR-00
