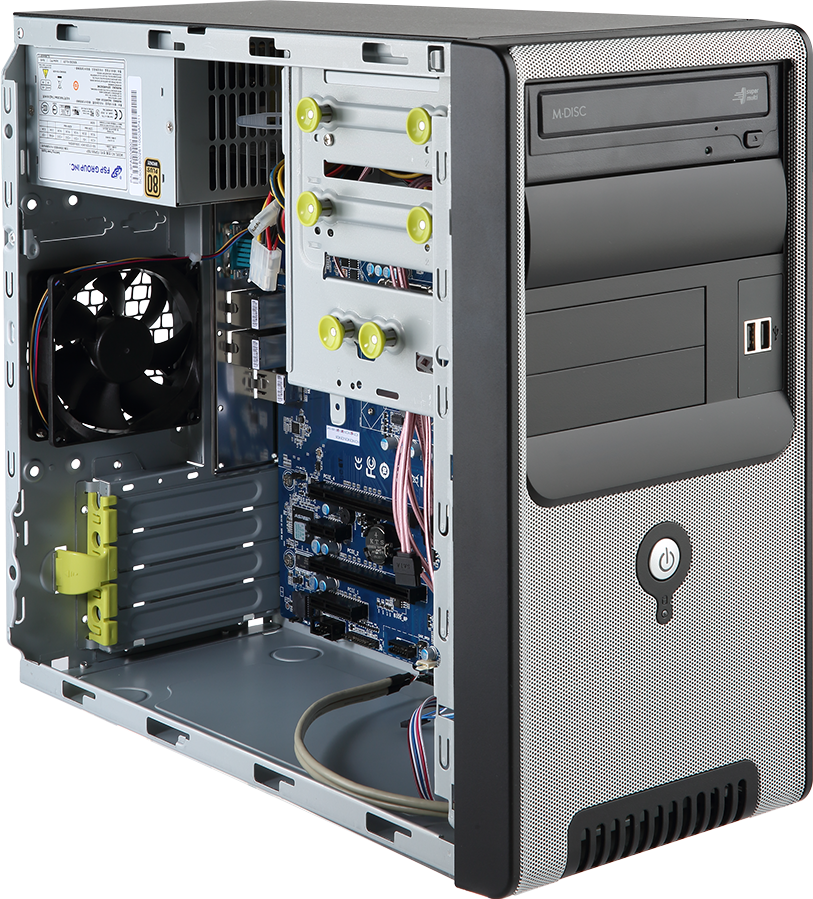

W131-X30 (rev. 100)
Entry-Level Tower Server
| Application:
Networking
Application:
- Small office mini tower solution
- Intel® Xeon® processors E3-1200 V6/V5 product family
- Single processor, LGA 1151
- Intel® C232 Chipset
- 4 x UDIMM slots, DDR4 2400MHz
- 2 x GbE LAN ports (Intel® I210 and I219LM)
- 2 x 5.25" drive bays
- 1 x 3.5" fixed drive bay
- 1 x 2.5" fixed drive bay
- 1 x Micro SD socket
- 4 x PCIe Gen3 x8, x4 and x1 slots
- Single 500W 80 PLUS Bronze power supply
Request a Quote
1/3
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
Mini-Tower
361 x 189 x 410
361 x 189 x 410
Motherboard
CPU
Supports Intel® Xeon® processor E3-1200 V6/V5 product family
Supports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors
Single processor
Single processor
Socket
1 x LGA 1151
Chipset
Intel® C232 Chipset
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz
LAN
2 x GbE LAN ports (Intel® I210 and I219LM)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage
2 x Peripheral 5.25" Drive Bays
1 x 3.5" fixed Drive Bay
1 x 2.5" fixed Drive Bay
1 x 3.5" fixed Drive Bay
1 x 2.5" fixed Drive Bay
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
ODD Drive (optional)
Expansion Slots
2 x PCIe x16 (Gen3 x8 bus) slots, from CPU
1 x PCIe x4 (Gen3 x4 bus) slot, from C232 1 x PCIe x1 (Gen3 x1 bus) slot, from C232
1 x PCIe x4 (Gen3 x4 bus) slot, from C232 1 x PCIe x1 (Gen3 x1 bus) slot, from C232
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x Micro SD socket
1 x CPU fan header
2 x System fan headers
1 x USB 2.0 header
1 x Serial header (COM2)
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Case open header
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x SMBus selection jumper
1 x Clear CMOS jumper
1 x BIOS password jumper
1 x M3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x Micro SD socket
1 x CPU fan header
2 x System fan headers
1 x USB 2.0 header
1 x Serial header (COM2)
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Case open header
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x SMBus selection jumper
1 x Clear CMOS jumper
1 x BIOS password jumper
1 x M3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer
Front I/O
1 x Power button
2 x USB 2.0
2 x USB 2.0
Rear I/O
1 x Serial (COM1)
1 x VGA
3 x RJ45
4 x USB 3.0
1 x VGA
3 x RJ45
4 x USB 3.0
TPM
1 x TPM header
Power Supply
1 x 500W 80 PLUS Bronze PSU
AC Input:
- 100-127V/ 220-240V~, 10/5A, 50-60Hz
DC Output:
- Max. 500W
+12V1/ 14A
+12V2/ 16A
+12V3/ 18A
+5V/ 20A
+3.3V/ 16A
+5Vsb/ 2.5A
AC Input:
- 100-127V/ 220-240V~, 10/5A, 50-60Hz
DC Output:
- Max. 500W
+12V1/ 14A
+12V2/ 16A
+12V3/ 18A
+5V/ 20A
+3.3V/ 16A
+5Vsb/ 2.5A
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2012 R2 with Update
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
System Fans
1 x 92x92x25mm (4,500rpm)
Operating Properties
Operating temperature: 0°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
512 x 273 x 561 mm
Packaging Content
1 x W131-X30
1 x CPU Cooler
1 x Quick Start Guide
1 x CPU Cooler
1 x Quick Start Guide
Part Numbers
- Barebone package: 6NW131X30MR-00
- Chassis Kit: 25EC5-W13100-I0R
- CPU cooler: 25ST0-047522-C1R
- Power supply: 25EP0-205005-F3S
- System Fan: 25Y00-92250-A20R
- SATA cable: 25CFD-450521-B0R
- Chassis Kit: 25EC5-W13100-I0R
- CPU cooler: 25ST0-047522-C1R
- Power supply: 25EP0-205005-F3S
- System Fan: 25Y00-92250-A20R
- SATA cable: 25CFD-450521-B0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x64
- RHEL 7.2 x64
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 10.1.1.42
3.06 MB
2017/03/21
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Windows Server 2016 64bit
Intel® Management Engine Driver
Version : 11.6
274.06 MB
2017/03/21
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Windows Server 2016 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 22.1
322.42 MB
2017/03/21
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Windows Server 2016 64bit
Intel® LAN Driver and Utility
Version : 22.1
322.42 MB
2017/03/21
OS: Ubuntu 14.04 LTS x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x64,SLES 11.4 x64,SLES 12 x64
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.5.0.1335
7.38 MB
2017/03/21
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.5.0.1335
19.12 MB
2017/03/21
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.6.0.1085
7.41 MB
2017/03/21
OS: Windows Server 2016 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.6.0.1085
19.4 MB
2017/03/21
OS: Windows Server 2016 64bit
BIOS
Description
Version
Size
Date
Security update for 2019.4 Intel Platform Update (IPU)
Update microcode:
CPU ID: 506E3, Microcode Version: 0x000000D6
CPU ID: 906E9, Microcode Version: 0x000000CA
Update microcode:
CPU ID: 506E3, Microcode Version: 0x000000D6
CPU ID: 906E9, Microcode Version: 0x000000CA
Version : R15
14.47 MB
2020/01/10
1. Upgrade ASPEED VBIOS update to v1.09.0
2. Upgrade microcode for NTEL SA-00233
2. Upgrade microcode for NTEL SA-00233
Version : R14
14.46 MB
2019/08/19
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Linux
Utility
Description
Version
Size
Date
GSM Server
Version : 2.12
926.33 MB
2023/01/18
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 1.00
125.66 MB
2017/07/31
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Windows Server 2016 64bit
Manual
Description
Version
Size
Date
Support List
Description
Version
Size
Date
QVL Support List
Version : 1.0
0.16 MB
2018/11/19
Server CPU QVL for MX31-CE0<br>
Kaby Lake CPU (2018/Q4)
QVL Support List
Version : 1.0
0.14 MB
2017/05/18
Server CPU QVL for MX31-CE0<br>
Skylake CPU (2017/Q1)
