• Intel® Thunderbolt™ 4 Certified add-in card
  • Intel® JHL8540 Thunderbolt™ 4 controller
  • Dual Thunderbolt™ 4 Ports (USB Type-C™)
  • Max Bandwidth 40 Gb/s
  • DisplayPort 1.4 Capable with 4K Video Throughout
  • Daisy-chain up to 10 Devices (5 devices per port)
  • Support PD3.0 standard (up to 97W)

* GC-MAPLE RIDGE add-in card availability may vary based on local distribution.

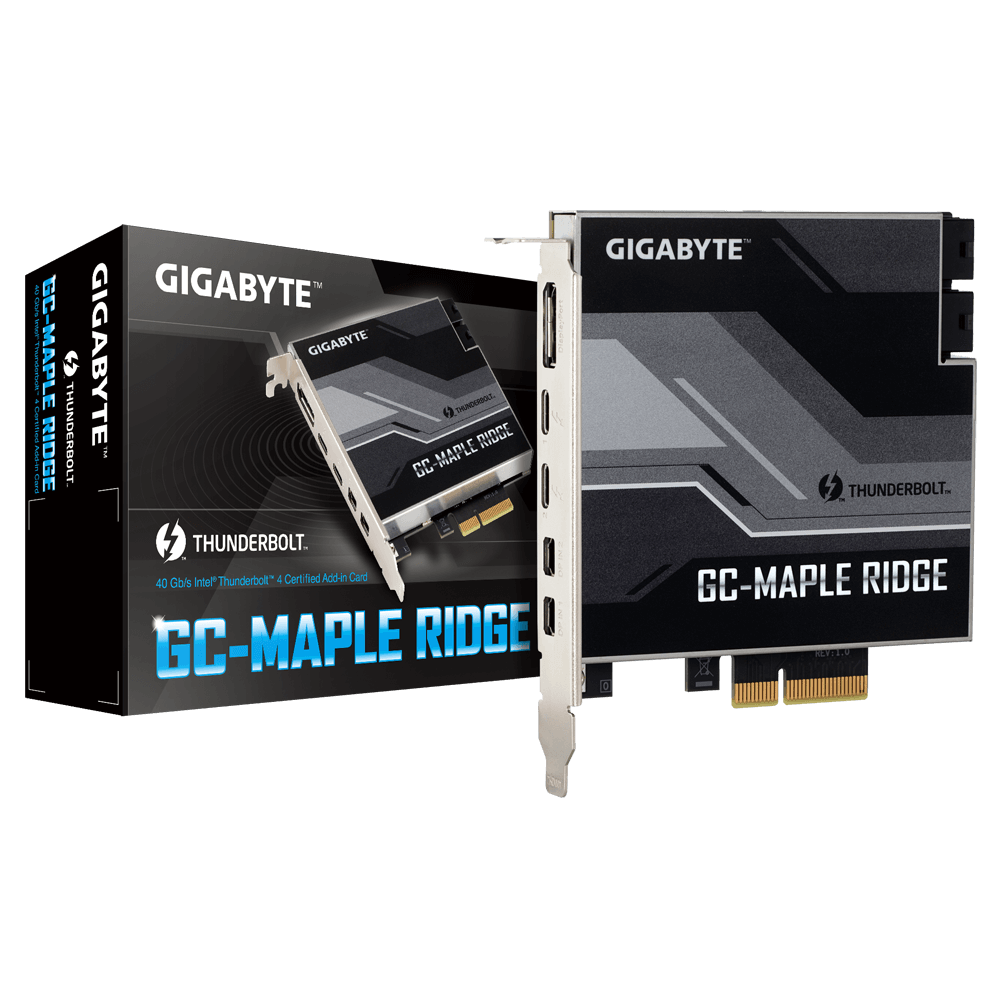

40 Gb/s Intel® Thunderbolt™ 4 Certified Add-in Card

The GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 4 connectivity without having to upgrade to a whole new system.

Port 1 : Support 5V/3A 9V/3A 15V/3A 19V/5A Power Delivery Spec
Port 2 : Support 5V/3A 9V/3A Power Delivery Spec
Dual Thunderbolt™ 4 – The fastest 40Gb/s single-wire connection

Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 4 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 5 Thunderbolt devices without an additional hub or switch.

Daisy-chain Multiple Devices

Support for DisplayPort 1.4 makes Thunderbolt™ 4 a must have for any enthusiast. GIGABYTE GC-MAPLE RIDGE support two displays in 4K* resolution at 60 FPS. In addition, Thunderbolt™ 4 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C™ ports.


* Depends on DisplayPort signal input from discrete display card.
Certified Motherboards with GC-MAPLE RIDGE
The GC-MAPLE RIDGE is compatible with GIGABYTE motherboards that featured a Thunderbolt™ header, refer the list as below.
* Supported status may vary depending on motherboard specifications.
* Support for Windows 10 64-bit with 20H2 or later.

Series Model
Z790 series
(Support by PCH PCIe x4 slot only)

Z790 AORUS TACHYON

Z790 AORUS MASTER

Z790 AORUS ELITE AX

Z790 AORUS ELITE

Z790 AORUS ELITE AX DDR4

Z790 AORUS ELITE DDR4

Z790M AORUS ELITE AX

Z790M AORUS ELITE

Z790 AERO G

Z790 GAMING X AX

Z790 GAMING X

Z790 UD AX

Z790 UD AC

Z790 UD

Z790 D DDR4



Z690 series
(Support by PCH PCIe x4 slot only)

Z690 AORUS TACHYON

Z690 AORUS MASTER

Z690 AORUS ULTRA

Z690 AORUS PRO

Z690 AORUS PRO DDR4

Z690 AORUS ELITE AX

Z690 AORUS ELITE

Z690 A ELITE AX DDR4

Z690 AORUS ELITE DDR4

Z690M AORUS ELITE AX DDR4

Z690M AORUS ELITE DDR4

Z690 AERO G

Z690 AERO G DDR4

Z690 GAMING X

Z690 GAMING X DDR4

Z690 UD AX

Z690 UD AC

Z690 UD AX DDR4

Z690 UD

Z690 UD DDR4

B660 AORUS MASTER

B660 AORUS MASTER DDR4

B660 DS3H AC

B660M AORUS PRO AX

B660M AORUS PRO AX DDR4

B660M AORUS PRO

B660M AORUS PRO DDR4

B660M AORUS ELITE AX DDR4

B660M AORUS ELITE DDR4

B660M GAMING X AX

B660M GAMING X AX DDR4

B660M GAMING X

B660M GAMING X DDR4

B660M D3H DDR4

Z590 / B560 series
(Support by PCH PCIe x4 slot only)

Z590 AORUS TACHYON

Z590 AORUS MASTER

Z590 AORUS ULTRA

Z590 AORUS PRO AX

Z590 AORUS ELITE AX

Z590 AORUS ELITE

Z590 VISION G

Z590 GAMING X

Z590M GAMING X

Z590 UD AC

Z590 UD

Z590 D

Z590M

 B560 AORUS PRO AX

B560M AORUS PRO AX

B560M AORUS PRO

B560M AORUS ELITE

B560 HD3

B560M D3H
