  • Intel® Thunderbolt™ 3 Certified add-in card
  • Intel® DSL7540 Thunderbolt™ 3 controller
  • Dual Thunderbolt™ 3 Ports (USB Type-C™)
  • Max Bandwidth 40 Gb/s
  • DisplayPort 1.4 Capable with 4K Video Throughout
  • Daisy-chain up to 12 Devices (6 devices per port)
  • Support PD3.0 standard (up to 100W)
* GC-TITAN RIDGE add-in card availability may vary based on local distribution.

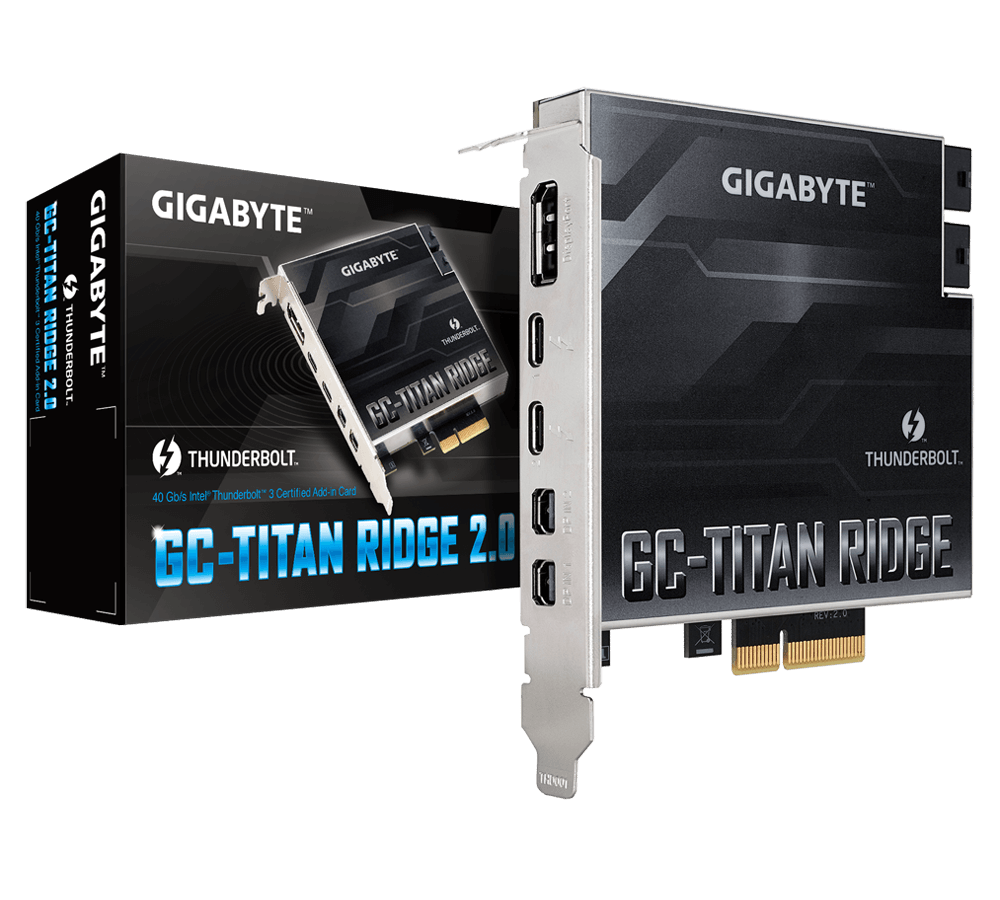

40 Gb/s Intel® Thunderbolt™ 3 Certified Add-in Card

The GC-TITAN RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 3 connectivity without having to upgrade to a whole new system.

Port 1 : Support 5V/3A 9V/3A 15V/3A 20V/5A Power Delivery Spec
Port 2 : Support 5V/3A 9V/3A Power Delivery Spec
Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection

Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 3 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 6 Thunderbolt devices without an additional hub or switch.

Daisy-chain Multiple Devices

Support for DisplayPort 1.4 makes Thunderbolt™ 3 a must have for any enthusiast. GIGABYTE GC-TITAN RIDGE support two displays in 4K* resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports.


* Depends on DisplayPort signal input from discrete display card.
Certified Motherboards with GC-TITAN RIDGE
The GC-TITAN RIDGE is compatible with GIGABYTE motherboards that featured a Thunderbolt™ header, refer the list as below.
* Supported status may vary depending on motherboard specifications.
* Support for Windows 10 64-bit with RS3 or later.

Series Model
Z490 series
(Support by PCH PCIe x4 slot only)

Z490 AORUS MASTER / WATERFORCE

Z490 AORUS ULTRA

Z490 AORUS PRO AX

Z490 AORUS PRO

Z490 AORUS ELITE AC

Z490 AORUS ELITE

Z490 VISION G

Z490 GAMING X AX

Z490 GAMING X

Z490M GAMING X

Z490 UD AC

Z490 UD

Z490M







H470 series
(Support by PCH PCIe x4 slot only)

H470 AORUS PRO AX

H470M DS3H

H470 HD3



B460 series
(Support by PCH PCIe x4 slot only)

B460 AORUS PRO AC

B460 HD3

B460M AORUS PRO

B460M AORUS ELITE

B460M D3H







Z390 series
(Support by PCH PCIe x4 slot only)
Z390 AORUS MASTER Z390 AORUS ULTRA Z390 AORUS PRO WIFI Z390 AORUS PRO
Z390 AORUS ELITE Z390 GAMING X Z390 UD Z390 M GAMING
Z390 M
Z390 series
(Recommend to install on CPU PCIe x16 slot)
Z390 GAMING SLI
H370 series
(Support by BIOS F10 or after, PCH PCIe x4 slot only)
H370 AORUS GAMING 3 WIFI H370 AORUS GAMING 3 H370 HD3
B360 series
(Support by BIOS F10 or after, PCH PCIe x4 slot only)
B360 AORUS GAMING 3 WIFI B360 AORUS GAMING 3 B360 HD3P B360 HD3
B360M D3P
Z370 series
(Support by BIOS F11 or after, PCH PCIe x4 slot only)
Z370 AORUS GAMING 7 Z370 AORUS GAMING 7-OP Z370 AORUS GAMING 5 Z370 AORUS ULTRA GAMING WIFI 2.0
Z370 AORUS ULTRA GAMING WIFI Z370 AORUS ULTRA GAMING WIFI-OP Z370 AORUS ULTRA GAMING 2.0-OP Z370 AORUS ULTRA GAMING 2.0
Z370 AORUS ULTRA GAMING Z370 AORUS GAMING 3 Z370 AORUS GAMING K3 Z370 AORUS GAMING WIFI
Z370 UD3H Z370XP SLI
X299X series
(Support by PCH PCIe x8_2 slot only)
X299X AORUS MASTER
X299 Workstation/Server series X299-WU8
*Requires additional USB 3.0 19-pin female to USB 2.0 9-pin male cable for proper functioning (P/N: 12CR1-FUB001-01R)

AMD X570 series
(Recommend to install on PCH PCIe x4 slot)
(Recommend to update to latest BIOS version)
X570 AORUS XTREME 1.1 X570 AORUS MASTER 1.1 X570 AORUS ULTRA 1.1 X570 AORUS PRO WIFI 1.1
X570 AORUS PRO 1.1
AMD B550 series
(Recommend to install on PCH PCIe x4 slot)
(Recommend to update to latest BIOS version)
B550 AORUS MASTER B550 AORUS PRO AC B550 AORUS PRO AX B550 AORUS PRO
B550 AORUS PRO V2 B550M AORUS PRO B550M AORUS PRO-P
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
