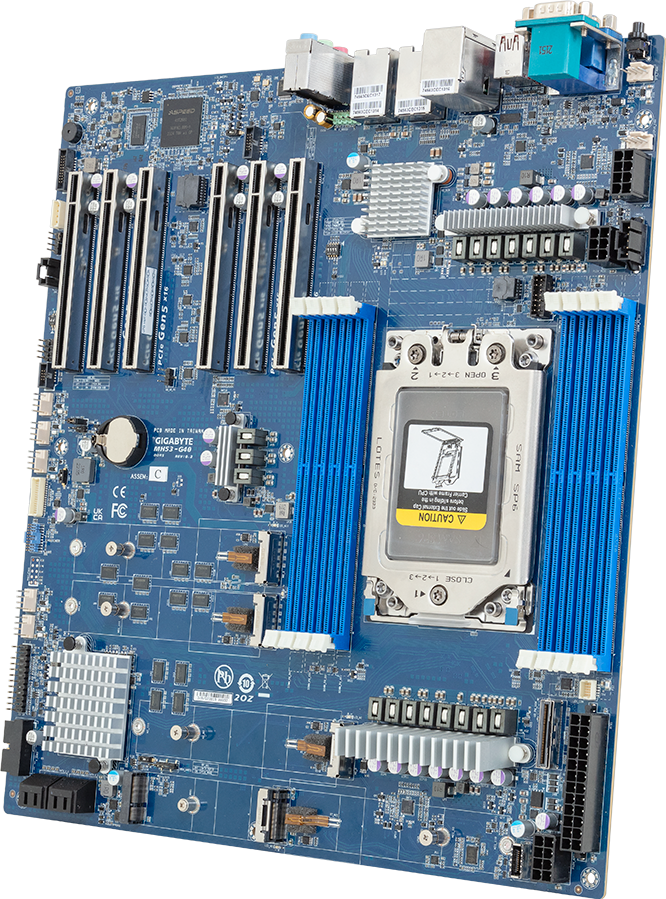

MH53-G40
Motherboard - AMD Ryzen™ Threadripper™ PRO 7000 WX - E-ATX UP
- Single AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
- 8-Channel DDR5 ECC RDIMM, 8 x DIMMs
- AMD WRX90 Chipset
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 1 x MCIO 8i connector with PCIe Gen5 x8 or SATA interface
- 4 x SATA 6Gb/s ports
- 4 x M.2 slots with PCIe Gen5 x4 interface
- 1 x M.2 slot with PCIe Gen3 x1 interface for Wi-Fi add-in cards
- 6 x PCIe Gen5 x16 expansion slots
Ordering Numbers: 9MH53G40MR-000-1*
Specifications
Form Factor (WxD, mm)
E-ATX
304.8 x 330.2
304.8 x 330.2
CPU
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
Single processor, TDP up to 350W
Single processor, TDP up to 350W
Socket
1 x sTR5
Chipset
AMD WRX90
Memory
8 x DIMM slots
DDR5 memory supported
8-channel memory per processor
ECC RDIMM: Up to 5200 MT/s
DDR5 memory supported
8-channel memory per processor
ECC RDIMM: Up to 5200 MT/s
LAN
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
- 1 x VGA port
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
3 x Audio jacks (Audio in/Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
3 x Audio jacks (Audio in/Audio out/Mic)
Storage Interface
MCIO:
1 x MCIO 8i for 2 x Gen5 NVMe or 8 x SATA, from CPU
SATA 7-pin:
4 x SATA, from FCH
M.2:
4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU
1 x MCIO 8i for 2 x Gen5 NVMe or 8 x SATA, from CPU
SATA 7-pin:
4 x SATA, from FCH
M.2:
4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU
RAID
RAID 0/1/10/5
PCIe Expansion Slots
Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_5: PCIe x16 (Gen5 x16)
Slot_3: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x16)
1 x MCIO 8i (Gen5 x8 or SATA) [1]
1 x M.2 E-Key 2230 (PCIe Gen3 x1), from FCH, for Wi-Fi
[1] The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.
Slot_6: PCIe x16 (Gen5 x16)
Slot_5: PCIe x16 (Gen5 x16)
Slot_3: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x16)
1 x MCIO 8i (Gen5 x8 or SATA) [1]
1 x M.2 E-Key 2230 (PCIe Gen3 x1), from FCH, for Wi-Fi
[1] The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB 3.2 Gen2 header (from FCH)
1 x USB 3.2 Gen1 header (from FCH)
4 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
1 x MCIO 8i connector
4 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB 3.2 Gen2 header (from FCH)
1 x USB 3.2 Gen1 header (from FCH)
4 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
1 x MCIO 8i connector
4 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
Rear I/O
1 x USB 3.2 Gen2x2 port (Type-C) (from FCH)
3 x USB 3.2 Gen2 ports (Type-A) (from CPU)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
3 x USB 3.2 Gen2 ports (Type-A) (from CPU)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
OS Supported
Red Hat Enterprise Linux
Ubuntu
Windows 11
Ubuntu
Windows 11
Board Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Retail Packaging Content
1 x MH53-G40
1 x I/O shield
1 x Quick start guide
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MH53-G40
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Reference Numbers
Retail: 9MH53G40MR-000-1*
Bulk: 9MH53G40NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MW83RP-00R
Bulk: 9MH53G40NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MW83RP-00R
