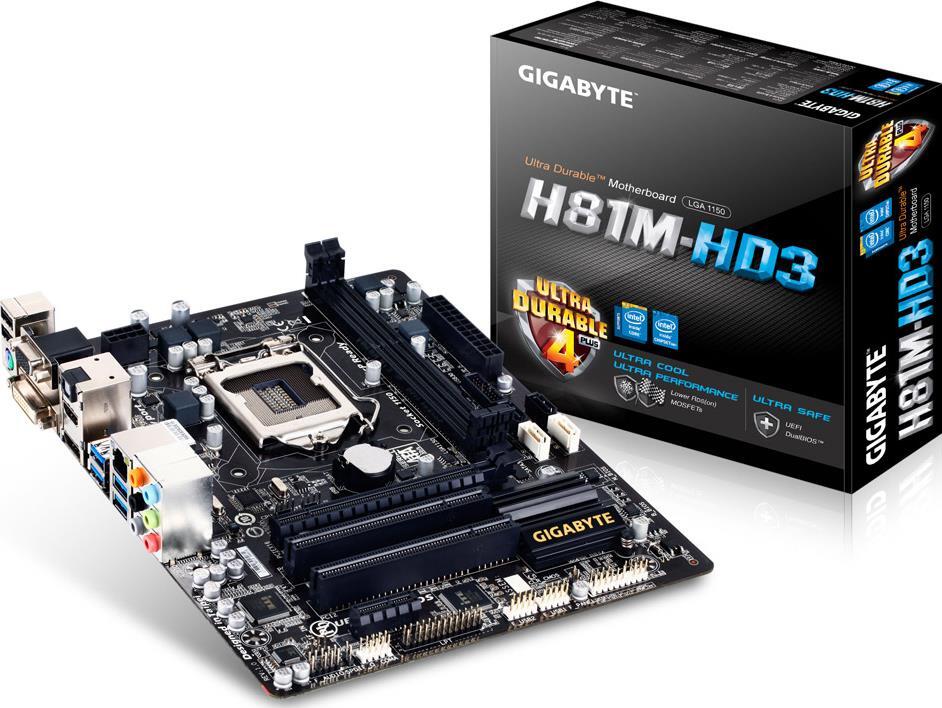

GA-H81M-HD3 (Rev. 1.0)

Rev. 1.0Rev. 2.0
Intel® H81 Chipset
رؤية عامةالمواصفاتالدعمأخبار و جوائزاعرف المزيدWhere to Buy

المواصفات

  • المعالج
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • الشريحة الرئيسية
    1. Intel® H81 Express Chipset
  • الذاكرة
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 1600/1333 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • الجرافيك المدمج
  • Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
    3. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
      * Support for HDMI 1.4a version.
    4. 1 x DisplayPort port, supporting a maximum resolution of 3840 x 2160 @ 60 Hz / 2560 x 1600 @ 60 Hz
      * Support for DisplayPort 1.2 version.
      * The DisplayPort does not support other types of display connections by adapter.
    5. Maximum shared memory of 1 GB
  • الصوت
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
  • الشبكة
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • واجهات تركيب الكروت
    1. 1 x PCI Express x16 slot, running at x16
    2. 1 x PCI Express x1 slot
      (The PCI Express slots conform to PCI Express 2.0 standard.)
    3. 2 x PCI slots
  • واجهات التخزين
  • Chipset:
    1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
    2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
  • واجهات USB
  • Chipset:
    1. 2 USB 3.0/2.0 ports (available through the internal USB header)
    2. 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    VIA® VL805 chip:
    1. 4 USB 3.0/2.0 ports on the back panel
  • موصلات الدخل والخرج الداخلية
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 2 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF In header
    10. 1 x S/PDIF Out header
    11. 1 x USB 3.0/2.0 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x parallel port header
    15. 1 x Clear CMOS jumper
  • موصلات اللوحة الخلفية
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 1 x DisplayPort
    6. 1 x optical S/PDIF Out connector
    7. 4 x USB 3.0/2.0 ports
    8. 2 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • وحدة تحكم الدخل والخرج
    1. iTE® I/O Controller Chip
  • مراقبة المكونات
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • وحدة التشغيل الرئيسية
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • المزايا الفريدة
    1. Support for Q-Flash
    2. Support for Xpress Install
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      @BIOS
      EasyTune
      EZ Setup
      USB Blocker
    4. Support for ON/OFF Charge
  • البرامج المجانية
    1. Norton® Internet Security (OEM version)
  • نظام التشغيل
    1. Support for Windows 10/8.1/8/7
  • حجم المنتج
    1. Micro ATX Form Factor; 24.4cm x 19cm
  • ملحوظة
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • المعالج
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • الشريحة الرئيسية
      1. Intel® H81 Express Chipset
    • الذاكرة
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 1600/1333 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • الجرافيك المدمج
    • Integrated Graphics Processor - Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      3. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
        * Support for HDMI 1.4a version.
      4. 1 x DisplayPort port, supporting a maximum resolution of 3840 x 2160 @ 60 Hz / 2560 x 1600 @ 60 Hz
        * Support for DisplayPort 1.2 version.
        * The DisplayPort does not support other types of display connections by adapter.
      5. Maximum shared memory of 1 GB
    • الصوت
      1. Realtek® ALC892 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In/Out
    • الشبكة
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • واجهات تركيب الكروت
      1. 1 x PCI Express x16 slot, running at x16
      2. 1 x PCI Express x1 slot
        (The PCI Express slots conform to PCI Express 2.0 standard.)
      3. 2 x PCI slots
    • واجهات التخزين
    • Chipset:
      1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
      2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
    • واجهات USB
    • Chipset:
      1. 2 USB 3.0/2.0 ports (available through the internal USB header)
      2. 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      VIA® VL805 chip:
      1. 4 USB 3.0/2.0 ports on the back panel
    • موصلات الدخل والخرج الداخلية
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 2 x SATA 6Gb/s connectors
      4. 2 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF In header
      10. 1 x S/PDIF Out header
      11. 1 x USB 3.0/2.0 header
      12. 2 x USB 2.0/1.1 headers
      13. 1 x serial port header
      14. 1 x parallel port header
      15. 1 x Clear CMOS jumper
    • موصلات اللوحة الخلفية
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 1 x DisplayPort
      6. 1 x optical S/PDIF Out connector
      7. 4 x USB 3.0/2.0 ports
      8. 2 x USB 2.0/1.1 ports
      9. 1 x RJ-45 port
      10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    • وحدة تحكم الدخل والخرج
      1. iTE® I/O Controller Chip
    • مراقبة المكونات
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • وحدة التشغيل الرئيسية
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • المزايا الفريدة
      1. Support for Q-Flash
      2. Support for Xpress Install
      3. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        @BIOS
        EasyTune
        EZ Setup
        USB Blocker
      4. Support for ON/OFF Charge
    • البرامج المجانية
      1. Norton® Internet Security (OEM version)
    • نظام التشغيل
      1. Support for Windows 10/8.1/8/7
    • حجم المنتج
      1. Micro ATX Form Factor; 24.4cm x 19cm
    • ملحوظة
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
