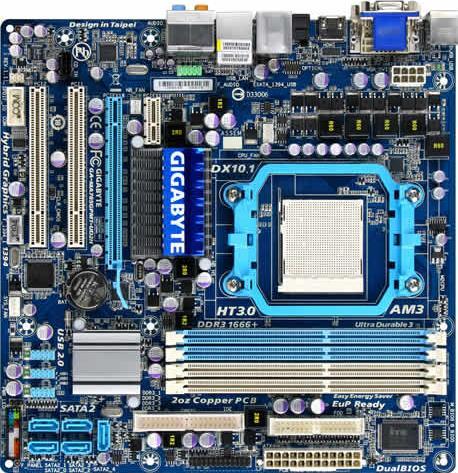

GA-MA785GPMT-UD2H (Rev. 1.1)

Rev. 1.1Rev. 1.0
AMD 785G + SB710 Chipset
رؤية عامةالمواصفاتالدعمأخبار و جوائزاعرف المزيدWhere to Buy

المواصفات

  • المعالج
    1. Support for AM3 processors: AMD PhenomTM II processor/ AMD Athlon™ II processor
  • ناقل البيانات المتعددة
    1. 5200 MT/s
  • الشريحة الرئيسية
    1. North Bridge: AMD 785G
    2. South Bridge: AMD SB710
  • الذاكرة
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 1800 (OC)/1666/1333/1066 MHz memory modules
  • الذاكرة المدمجة
    1. 128MB DDR3 SidePort memory
  • الجرافيك المدمج
  • Integrated in the North Bridge:
    1. 1 x D-Sub port
    2. 1 x DVI-D port (Note 2) (Note 3)
    3. 1 x HDMI port (Note 3)
  • الصوت
    1. Realtek ALC889A codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF In/Out
    6. Support for CD In
  • الشبكة
    1. Realtek 8111C chip (10/100/1000 Mbit)
  • واجهات تركيب الكروت
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
    2. 1 x PCI Express x1 slot
    3. 2 x PCI slots
  • واجهات التخزين
  • South Bridge:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
    3. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
    4. Support for SATA RAID 0, RAID 1, RAID 10 and JBOD
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • واجهات USB
  • Integrated in the South Bridge
    1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
  • شريحة IEEE 1394
  • T.I. TSB43AB23 chip
    1. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
  • موصلات الدخل والخرج الداخلية
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 5 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x North Bridge fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In/Out header
    13. 3 x USB 2.0/1.1 headers
    14. 1 x IEEE 1394a header
    15. 1 x parallel port header
    16. 1 x serial port header
    17. 1 x chassis intrusion header
    18. 1 x power LED header
    19. 1 x clearing CMOS jumper
  • موصلات اللوحة الخلفية
    1. 1 x PS/2 keyboard port or PS/2 mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port (Note 3)(Note 4)
    4. 1 x HDMI port (Note 4)
    5. 1 x optical S/PDIF Out connector
    6. 1 x eSATA 3Gb/s port
    7. 1 x IEEE 1394a port
    8. 6 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • وحدة تحكم الدخل والخرج
    1. ITE IT8718 chip
  • مراقبة المكونات
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 4)
  • وحدة التشغيل الرئيسية
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • المزايا الفريدة
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 5)
    8. Support for Easy Energy Saver
    9. Support for Time Repare
    10. Support for Q-Share
  • البرامج المجانية
    1. Norton Internet Security (OEM version)
  • نظام التشغيل
    1. Support for Microsoft Windows Vista/ XP
  • حجم المنتج
    1. Micro ATX Form Factor; 24.3cm x 24.3cm
  • ملاحظات
  • (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) The DVI-D port does not support D-Sub connection by adapter.
    (Note 3) Simultaneous output for DVI-D and HDMI is not supported.
    (Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    (Note 5) Available functions in EasyTune may differ by motherboard model.
  • ملحوظة
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
  • المعالج
    1. Support for AM3 processors: AMD PhenomTM II processor/ AMD Athlon™ II processor
  • ناقل البيانات المتعددة
    1. 5200 MT/s
  • الشريحة الرئيسية
    1. North Bridge: AMD 785G
    2. South Bridge: AMD SB710
  • الذاكرة
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 1800 (OC)/1666/1333/1066 MHz memory modules
  • الذاكرة المدمجة
    1. 128MB DDR3 SidePort memory
  • الجرافيك المدمج
  • Integrated in the North Bridge:
    1. 1 x D-Sub port
    2. 1 x DVI-D port (Note 2) (Note 3)
    3. 1 x HDMI port (Note 3)
  • الصوت
    1. Realtek ALC889A codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF In/Out
    6. Support for CD In
  • الشبكة
    1. Realtek 8111C chip (10/100/1000 Mbit)
  • واجهات تركيب الكروت
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
    2. 1 x PCI Express x1 slot
    3. 2 x PCI slots
  • واجهات التخزين
  • South Bridge:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
    3. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
    4. Support for SATA RAID 0, RAID 1, RAID 10 and JBOD
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • واجهات USB
  • Integrated in the South Bridge
    1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
  • شريحة IEEE 1394
  • T.I. TSB43AB23 chip
    1. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
  • موصلات الدخل والخرج الداخلية
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 5 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x North Bridge fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In/Out header
    13. 3 x USB 2.0/1.1 headers
    14. 1 x IEEE 1394a header
    15. 1 x parallel port header
    16. 1 x serial port header
    17. 1 x chassis intrusion header
    18. 1 x power LED header
    19. 1 x clearing CMOS jumper
  • موصلات اللوحة الخلفية
    1. 1 x PS/2 keyboard port or PS/2 mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port (Note 3)(Note 4)
    4. 1 x HDMI port (Note 4)
    5. 1 x optical S/PDIF Out connector
    6. 1 x eSATA 3Gb/s port
    7. 1 x IEEE 1394a port
    8. 6 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • وحدة تحكم الدخل والخرج
    1. ITE IT8718 chip
  • مراقبة المكونات
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 4)
  • وحدة التشغيل الرئيسية
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • المزايا الفريدة
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 5)
    8. Support for Easy Energy Saver
    9. Support for Time Repare
    10. Support for Q-Share
  • البرامج المجانية
    1. Norton Internet Security (OEM version)
  • نظام التشغيل
    1. Support for Microsoft Windows Vista/ XP
  • حجم المنتج
    1. Micro ATX Form Factor; 24.3cm x 24.3cm
  • ملاحظات
  • (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) The DVI-D port does not support D-Sub connection by adapter.
    (Note 3) Simultaneous output for DVI-D and HDMI is not supported.
    (Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    (Note 5) Available functions in EasyTune may differ by motherboard model.
  • ملحوظة
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
