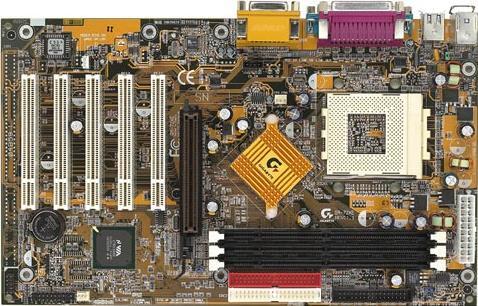

GA-7ZXE (Rev. 1.x)

Rev. 1.xRev. 2.x
SpecificatiesSupportNieuws&AwardsWhere to Buy

Specificaties

  • CPU
    1. Socket A for AMD Athlon™ /Duron™ 266/200MHz FSB processors
    2. Supports 600MHz ~ 1.5GHz and faster
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA VT8363A (KT133A) North bridge
    2. VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. AC97 codec
  • Memory
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Expansion Slots
    1. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. 2 x UDMA 33/66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board (optional)
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready
  • H/W Monitoring
    1. System voltage detect (Vcore,VDD ,Vcc,+12V)
    2. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
    3. CPU/System fan revoltion & temperature detect
  • BIOS
    1. AMI BIOS with enhanced ACPI feature for PC98/Win98/WinMe/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. Auto-detect & report system health status
    4. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX , 4 layer PCB (30.4*18.3cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Other Features
    1. Includes 3 fan power connectors
    2. PC99 connectors
    3. Mosfets cooled by CPU fan
    4. Supports EasyTune III™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & switch
  • CPU
    1. Socket A for AMD Athlon™ /Duron™ 266/200MHz FSB processors
    2. Supports 600MHz ~ 1.5GHz and faster
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA VT8363A (KT133A) North bridge
    2. VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. AC97 codec
  • Memory
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Expansion Slots
    1. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. 2 x UDMA 33/66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board (optional)
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready
  • H/W Monitoring
    1. System voltage detect (Vcore,VDD ,Vcc,+12V)
    2. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
    3. CPU/System fan revoltion & temperature detect
  • BIOS
    1. AMI BIOS with enhanced ACPI feature for PC98/Win98/WinMe/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. Auto-detect & report system health status
    4. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX , 4 layer PCB (30.4*18.3cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Other Features
    1. Includes 3 fan power connectors
    2. PC99 connectors
    3. Mosfets cooled by CPU fan
    4. Supports EasyTune III™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & switch

* De termen HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress en de HDMI logo's zijn handelsmerken of gedeponeerde handelsmerken van HDMI Licensing Administrator, Inc.
* Alle materialen zijn alleen voor uw referenctie. GIGABYTE behoudt zich het recht om zonder aankondiging de inhoud te wijzigen of te herzien.
* Alle handelsmerken en logo's zijn eigendom van hun respectieve houders.
* Door de standaard PC-architectuur, wordt een bepaalde hoeveelheid geheugen gereserveerd voor gebruik van het systeem en dus is de werkelijke geheugengrootte kleiner dan de aangegeven hoeveelheid.
