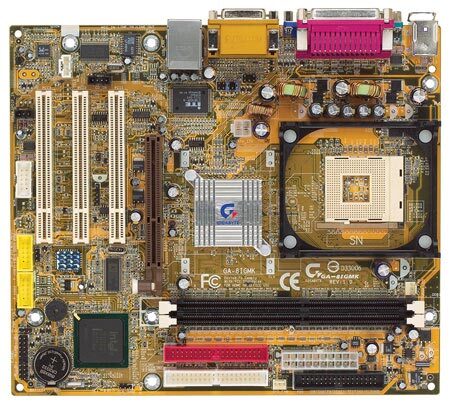

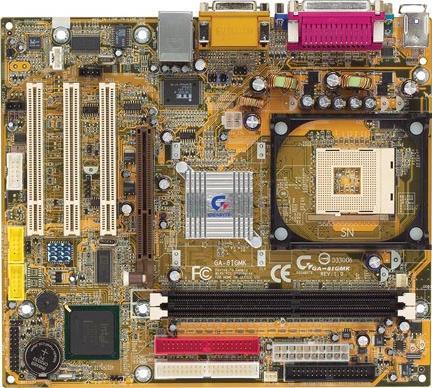

GA-8IGMK (Rev. 1.x / 2.x)

SpecificatiesSupportNieuws&AwardsWhere to Buy

Specificaties

  • CPU
    1. Socket 478 for Intel®Pentium®4 processor
    2. 533/400 MHz FSB
  • Chipset
    1. Intel®845G
    2. Intel®82801DB ICH4
    3. Intel®PRO/100 VE LAN chip
    4. Realtek ALC650 PCI sound controller chip
    5. Super I/O: ITE I/O IT8702 chip
    6. 2M bit flash ROM
  • Memory
    1. Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
    2. Max capacity: Up to 2 GB by 2 DIMM slots
  • Expansion Slots
    1. 1 x AGP 4x, supports 1.5v display card only
    2. 3 x PCI (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x FDD
    2. 2 x UDMA ATA 100/66 Bus Master IDE
    3. 2 x USB 2.0 connectors (4 ports by cable with rear USB bracket)
    4. 2 x cooling fan pin headers
    5. CD/AUX in
  • Back Panel Connectors
    1. 2 x USB 2.0 ports
    2. 1 x VGA output port
    3. 1 x RJ45 LAN port
    4. 1 x LPT, 1 x COM ports
    5. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    6. PS/2 Keyboard/Mouse connector
    7. 1 x Game/Midi port
  • Bundle Software
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
    3. Adobe®Acrobat Reader
    4. IAA (Intel®Application Accelerator)
  • Form Factor
    1. Micro ATX (24.3cm x 22.0cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB / multiplier adjustable via BIOS
  • Driver
    1. Realtek sound driver
  • Other Features
    1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
    5. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
  • CPU
    1. Socket 478 for Intel®Pentium®4 processor
    2. 533/400 MHz FSB
  • Chipset
    1. Intel®845G
    2. Intel®82801DB ICH4
    3. Intel®PRO/100 VE LAN chip
    4. Realtek ALC650 PCI sound controller chip
    5. Super I/O: ITE I/O IT8702 chip
    6. 2M bit flash ROM
  • Memory
    1. Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
    2. Max capacity: Up to 2 GB by 2 DIMM slots
  • Expansion Slots
    1. 1 x AGP 4x, supports 1.5v display card only
    2. 3 x PCI (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x FDD
    2. 2 x UDMA ATA 100/66 Bus Master IDE
    3. 2 x USB 2.0 connectors (4 ports by cable with rear USB bracket)
    4. 2 x cooling fan pin headers
    5. CD/AUX in
  • Back Panel Connectors
    1. 2 x USB 2.0 ports
    2. 1 x VGA output port
    3. 1 x RJ45 LAN port
    4. 1 x LPT, 1 x COM ports
    5. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    6. PS/2 Keyboard/Mouse connector
    7. 1 x Game/Midi port
  • Bundle Software
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
    3. Adobe®Acrobat Reader
    4. IAA (Intel®Application Accelerator)
  • Form Factor
    1. Micro ATX (24.3cm x 22.0cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB / multiplier adjustable via BIOS
  • Driver
    1. Realtek sound driver
  • Other Features
    1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
    5. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
