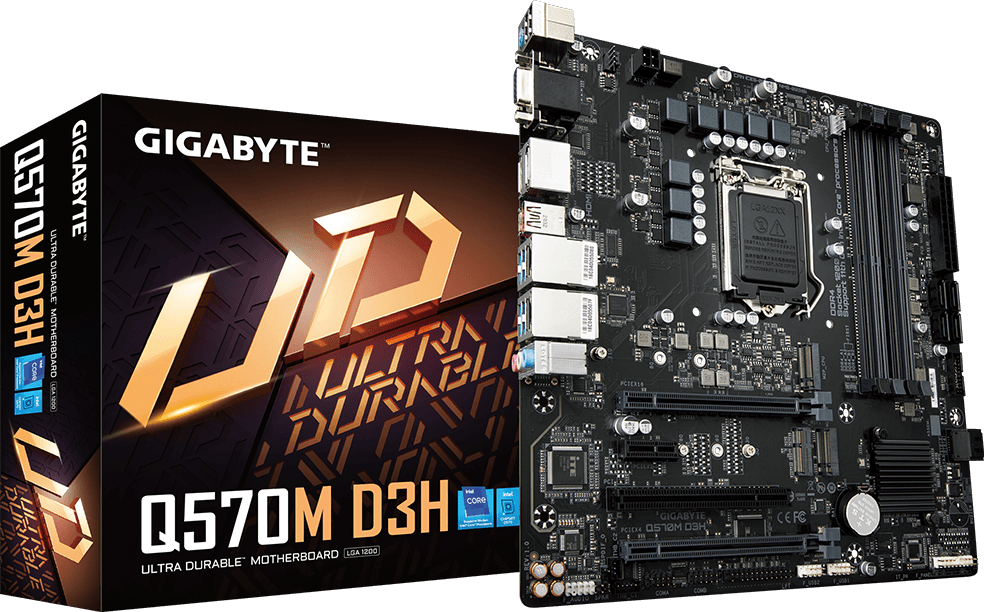

Q570M D3H (Rev. 1.0)

Intel® Q570 Chipset
Key FeaturesSpecificationsSupport

Specifications

  • CPU
  • LGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® Q570 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub(Note) port, supporting a maximum resolution of 1920x1200@60 Hz
      (Note) Supported by 11th Generation processors only.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    3. 2 x DisplayPorts, supporting a maximum resolution of 5120x2160@60 Hz
      * Support for DisplayPort 1.4 version and HDCP 2.3
    Support for up to 3 displays at the same time
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    4. Support for S/PDIF Out
  • LAN
    1. 2 x Intel® GbE LAN chips (1 Gbps/100 Mbps)
  • TPM
    1. Infineon chip, supporting TPM 2.0
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
      (Note) Supported by 11th Generation processors only.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
    4. 1 x PCI slot
    5. 1 x M.2 Socket 1 connector for an Intel® CNVi or PCIe wireless module (M2_WIFI)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
  • CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
      (Note) Supported by 11th Generation processors only.
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    6 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    Intel® Optane™ Memory Ready
    * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.
  • USB
  • Chipset:
    1. 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    4. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 6 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x speaker header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 2 x Thunderbolt™ add-in card connectors
    14. 2 x serial port headers
    15. 1 x parallel port header
    16. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 2 x DisplayPorts
    5. 1 x USB 3.2 Gen 2 Type-A port (red)
    6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    7. 4 x USB 3.2 Gen 1 ports
    8. 2 x USB 2.0/1.1 ports
    9. 2 x RJ-45 ports
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for Q-Flash
    2. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
    • LGA1200 package:
      1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
      2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
        * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
      3. L3 cache varies with CPU
      (Please refer to "CPU Support List" for more information.)
    • Chipset
      1. Intel® Q570 Express Chipset
    • Memory
      1. 11th Generation Intel® Core™ i9/i7/i5 processors:
        Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
      2. 10th Generation Intel® Core™ i9/i7 processors:
        Support for DDR4 2933/2666/2400/2133 MHz memory modules
      3. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
        Support for DDR4 2666/2400/2133 MHz memory modules
      4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      5. Dual channel memory architecture
      6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      8. Support for Extreme Memory Profile (XMP) memory modules
      (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
    • Onboard Graphics
    • Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x D-Sub(Note) port, supporting a maximum resolution of 1920x1200@60 Hz
        (Note) Supported by 11th Generation processors only.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 1.4 version and HDCP 2.3.
      3. 2 x DisplayPorts, supporting a maximum resolution of 5120x2160@60 Hz
        * Support for DisplayPort 1.4 version and HDCP 2.3
      Support for up to 3 displays at the same time
      (Graphics specifications may vary depending on CPU support.)
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
      4. Support for S/PDIF Out
    • LAN
      1. 2 x Intel® GbE LAN chips (1 Gbps/100 Mbps)
    • TPM
      1. Infineon chip, supporting TPM 2.0
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
        (Note) Supported by 11th Generation processors only.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. 1 x PCI Express x1 slot
        (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
      4. 1 x PCI slot
      5. 1 x M.2 Socket 1 connector for an Intel® CNVi or PCIe wireless module (M2_WIFI)
    • Multi-Graphics Technology
      1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    • Storage Interface
    • CPU:
      1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
        (Note) Supported by 11th Generation processors only.
      Chipset:
      1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
      6 x SATA 6Gb/s connectors

      Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

      Intel® Optane™ Memory Ready
      * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.
    • USB
    • Chipset:
      1. 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
      2. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
      3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      4. 2 x USB 2.0/1.1 ports on the back panel
      Chipset+2 USB 2.0 Hubs:
      1. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 2 x M.2 Socket 3 connectors
      4. 6 x SATA 6Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF Out header
      10. 1 x speaker header
      11. 1 x USB 3.2 Gen 1 header
      12. 2 x USB 2.0/1.1 headers
      13. 2 x Thunderbolt™ add-in card connectors
      14. 2 x serial port headers
      15. 1 x parallel port header
      16. 1 x Clear CMOS jumper
    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x HDMI port
      4. 2 x DisplayPorts
      5. 1 x USB 3.2 Gen 2 Type-A port (red)
      6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
      7. 4 x USB 3.2 Gen 1 ports
      8. 2 x USB 2.0/1.1 ports
      9. 2 x RJ-45 ports
      10. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Fan fail warning
      5. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for Q-Flash
      2. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
    • Operating System
      1. Support for Windows 10 64-bit
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
