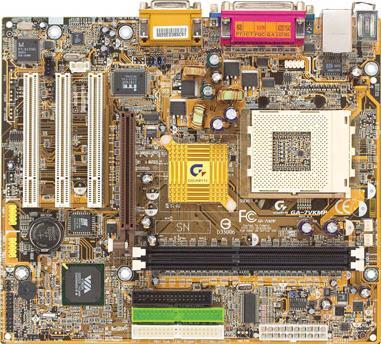

GA-7VKMP-P (Rev. 1.0)

EspecificaçãoSuporteNotícias/PrêmiosWhere to Buy

Especificação

  • CPU
    1. Socket A for AMD Athlon™/Athlon™ XP/Duron™ 200/266 MHz FSB processors
    2. Supports 500MHz ~ 2000+ and faster
  • Chipset
    1. VIA KM266 North Bridge
    2. VIA 8235 South Bridge
    3. Realtek 8100BL 10/100Mb LAN chip
    4. Realtek ALC 650 6-channel codec chip
  • Memória
    1. Supports PC1600/DDR200 or PC2100/DDR266 DDR memory
    2. Supports up to 1GB DDR memory
    3. 2 DIMMs of 184-pin DDR sockets
  • Conectores Internos I/O
  • 2 x ATA 66/100/133 bus master IDE ports
  • 1 x FDD, 2 x HDD and 1 x CD audio input
  • IrDA(1x5) and COM2 on board
  • GBT standard front panel
  • 2 x USB2.0 connectors (support 4 ports by cable)
  • Conectores Painel Traseiro
    1. 2 x USB2.0 ports
    2. 1 x COM port
    3. 1 x RJ45 LAN port
    4. 1 x LPT
    5. PS/2 Keyboard, PS/2 Mouse and
    6. 1 x VGA port
  • Monitoramento H/W
    1. System voltage detect (Vcore, VDD, Vcc,+12V)
    2. H/W detect and report power-in voltage, CPU voltage
    3. CPU/System fan revolution and temperature detect
  • BIOS
    1. 2Mbit flash ROM
    2. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    3. Supports @BIOS™ Live Update utility
    4. Auto-detect and report system health status
    5. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/ME/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
  • Form Factor
    1. Micro ATX and 4 layers PCB ( 24.3 x 21.0 cm)
  • Driver
    1. VIA 4-in-1 service pack utility
    2. Gigabyte Windows Utility Manager
    3. Realtek Audio driver
  • Outras Características
    1. Suspend-To-RAM (STR)
    2. Supports EasyTune III™, @BIOS™ and Q-Flash™
  • Energia
    1. ATX 20-pin power connector
    2. ncludes CPU, system fan control
    3. ACPI states supported
    4. Wake up from S1 and power on from S5
  • CPU
    1. Socket A for AMD Athlon™/Athlon™ XP/Duron™ 200/266 MHz FSB processors
    2. Supports 500MHz ~ 2000+ and faster
  • Chipset
    1. VIA KM266 North Bridge
    2. VIA 8235 South Bridge
    3. Realtek 8100BL 10/100Mb LAN chip
    4. Realtek ALC 650 6-channel codec chip
  • Memória
    1. Supports PC1600/DDR200 or PC2100/DDR266 DDR memory
    2. Supports up to 1GB DDR memory
    3. 2 DIMMs of 184-pin DDR sockets
  • Conectores Internos I/O
  • 2 x ATA 66/100/133 bus master IDE ports
  • 1 x FDD, 2 x HDD and 1 x CD audio input
  • IrDA(1x5) and COM2 on board
  • GBT standard front panel
  • 2 x USB2.0 connectors (support 4 ports by cable)
  • Conectores Painel Traseiro
    1. 2 x USB2.0 ports
    2. 1 x COM port
    3. 1 x RJ45 LAN port
    4. 1 x LPT
    5. PS/2 Keyboard, PS/2 Mouse and
    6. 1 x VGA port
  • Monitoramento H/W
    1. System voltage detect (Vcore, VDD, Vcc,+12V)
    2. H/W detect and report power-in voltage, CPU voltage
    3. CPU/System fan revolution and temperature detect
  • BIOS
    1. 2Mbit flash ROM
    2. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    3. Supports @BIOS™ Live Update utility
    4. Auto-detect and report system health status
    5. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/ME/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
  • Form Factor
    1. Micro ATX and 4 layers PCB ( 24.3 x 21.0 cm)
  • Driver
    1. VIA 4-in-1 service pack utility
    2. Gigabyte Windows Utility Manager
    3. Realtek Audio driver
  • Outras Características
    1. Suspend-To-RAM (STR)
    2. Supports EasyTune III™, @BIOS™ and Q-Flash™
  • Energia
    1. ATX 20-pin power connector
    2. ncludes CPU, system fan control
    3. ACPI states supported
    4. Wake up from S1 and power on from S5

* Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida
