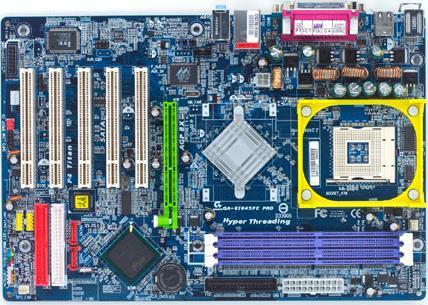

GA-8I845PE Pro (Rev. 1.0)

EspecificaçãoSuporteNotícias/PrêmiosWhere to Buy

Especificação

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 800(OC) / 533 / 400 MHz FSB
  • Chipset
    1. Norht Bridge : Intel® 865P MCH
    2. South Bridge : Intel® ICH5
    3. Integrated Peripherals :
      1. Realtek ALC850 CODEC
      2. Integrated Marvel Gigabit Ethernet controller
  • Memória
    1. Type: DDR 400(OC) / 333 / 266 support
    2. Max capacity: 2 GB
    3. DIMM slots: 3
  • Conectores Internos I/O
    1. 2 x Serial ATA ports
    2. 2 x USB 2.0 (supports 4 ports by cable)
    3. 1 x S/P DIF input/output pin header
    4. 2 x UltraDMA 100/66 Bus Master IDE
    5. 1 x FDD
    6. CD in
    7. 1 x Game port pin header
  • Conectores Painel Traseiro
    1. PS/2 Keyboard / Mouse
    2. 1 x RJ45 port
    3. 2 x USB 2.0 ports
    4. 2 x COM ports
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) ports
  • Monitoramento H/W
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 2M bit flash ROM, Award BIOS
  • Pacote de Software
    1. Norton Internet Security 2003
      1. Norton Anti VirusTM
      2. NortonTM Personal Firewall
      3. NortonTM Privacy Control
      4. NortonTM Parental Control
      5. NortonTM Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. ATX
    2. 30.5cm x 20.5cm
  • Outras Características
    1. Xpress3
    2. EasyTuneTM 4
    3. @BIOS
    4. Q-FlashTM
  • Observação
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
