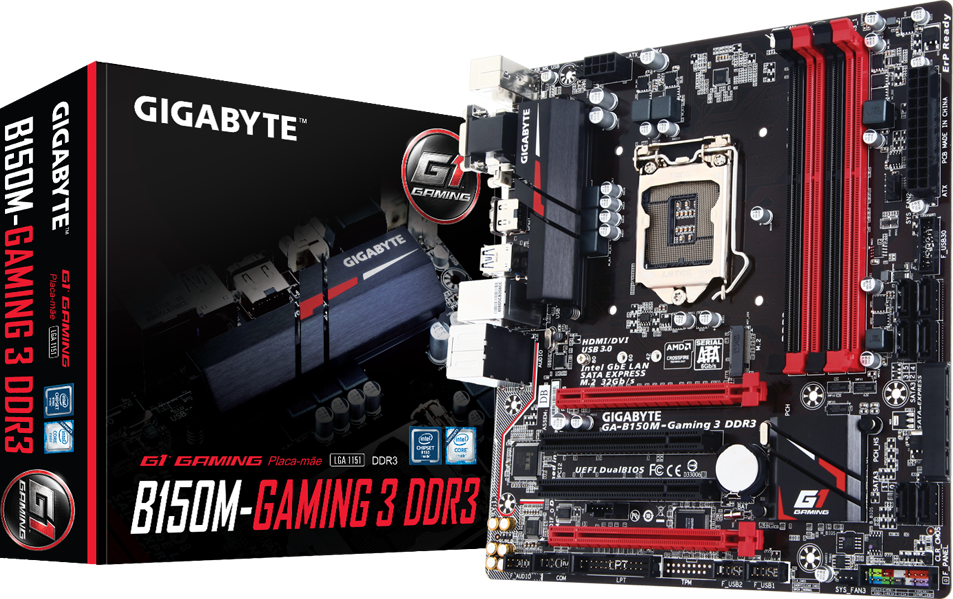

GA-B150M-Gaming 3 DDR3 (Rev. 1.0)

Intel® B150 Chipset
Visão GeralEspecificaçãoSuporteNotícias/PrêmiosSaiba maisWhere to Buy

Especificação

  • CPU
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B150 Express Chipset
  • Memória
    1. 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3/DDR3L 1866(OC)/1600/1333 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráficos Onboard
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    4. Support for up to 3 displays at the same time
    5. Maximum shared memory of 1024 MB
  • Áudio
    1. Realtek® ALC892 codec
    2. Support for Sound Blaster X-Fi MB5
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
    • LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Slots de Expansão
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        (All of the PCI Express slots conform to PCI Express 3.0 standard.)
        3. 2 x PCI slots
    • Tecnologia Multi-Graphics
      1. Support for 2-Way AMD CrossFire™ technology
    • Interface de Armazenamento
    • Chipset:
      1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
      2. 1 x SATA Express connector
        * Not compatible with regular SATA devices.
      3. 6 x SATA 6Gb/s connectors
    • USB
    • Chipset:
      1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    • Conectores Internos I/O
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x M.2 Socket 3 connector
      4. 1 x SATA Express connector
      5. 6 x SATA 6Gb/s connectors
      6. 1 x CPU fan header
      7. 3 x system fan headers
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x S/PDIF Out header
      11. 1 x USB 3.0/2.0 header
      12. 2 x USB 2.0/1.1 headers
      13. 1 x Thunderbolt™ add-in card connector
      14. 1 x serial port header
      15. 1 x parallel port header
      16. 1 x Clear CMOS jumper
    • Conectores Painel Traseiro
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 4 x USB 3.0/2.0 ports
      6. 2 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    • Controlador I/O
      1. iTE® I/O Controller Chip
    • Monitoramento H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Características Exclusivas
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        @BIOS
        AutoGreen
        Cloud Station
        EasyTune
        Fast Boot
        Smart TimeLock
        Smart Keyboard
        Smart Backup
        System Information Viewer
        USB Blocker
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
    • Pacote de Software
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
    • Sistema Operacional
      1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
      2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 22.5cm
    • Observação
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
      • CPU
        1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
          * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
        2. L3 cache varies with CPU
        (Please refer "CPU Support List" for more information.)
      • Chipset
        1. Intel® B150 Express Chipset
      • Memória
        1. 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
          * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
        2. Dual channel memory architecture
        3. Support for DDR3/DDR3L 1866(OC)/1600/1333 MHz memory modules
        4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        5. Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
        (Please refer "Memory Support List" for more information.)
      • Gráficos Onboard
      • Integrated Graphics Processor-Intel® HD Graphics support:
        1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
        2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
          * The DVI-D port does not support D-Sub connection by adapter.
        3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
          * Support for HDMI 1.4 version.
        4. Support for up to 3 displays at the same time
        5. Maximum shared memory of 1024 MB
      • Áudio
        1. Realtek® ALC892 codec
        2. Support for Sound Blaster X-Fi MB5
        3. High Definition Audio
        4. 2/4/5.1/7.1-channel
        5. Support for S/PDIF Out
        • LAN
          1. Intel® GbE LAN chip (10/100/1000 Mbit)
        • Slots de Expansão
          1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
            * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
          2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
            (All of the PCI Express slots conform to PCI Express 3.0 standard.)
            3. 2 x PCI slots
        • Tecnologia Multi-Graphics
          1. Support for 2-Way AMD CrossFire™ technology
        • Interface de Armazenamento
        • Chipset:
          1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
          2. 1 x SATA Express connector
            * Not compatible with regular SATA devices.
          3. 6 x SATA 6Gb/s connectors
        • USB
        • Chipset:
          1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
          2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
        • Conectores Internos I/O
          1. 1 x 24-pin ATX main power connector
          2. 1 x 8-pin ATX 12V power connector
          3. 1 x M.2 Socket 3 connector
          4. 1 x SATA Express connector
          5. 6 x SATA 6Gb/s connectors
          6. 1 x CPU fan header
          7. 3 x system fan headers
          8. 1 x front panel header
          9. 1 x front panel audio header
          10. 1 x S/PDIF Out header
          11. 1 x USB 3.0/2.0 header
          12. 2 x USB 2.0/1.1 headers
          13. 1 x Thunderbolt™ add-in card connector
          14. 1 x serial port header
          15. 1 x parallel port header
          16. 1 x Clear CMOS jumper
        • Conectores Painel Traseiro
          1. 1 x PS/2 keyboard/mouse port
          2. 1 x D-Sub port
          3. 1 x DVI-D port
          4. 1 x HDMI port
          5. 4 x USB 3.0/2.0 ports
          6. 2 x USB 2.0/1.1 ports
          7. 1 x RJ-45 port
          8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
        • Controlador I/O
          1. iTE® I/O Controller Chip
        • Monitoramento H/W
          1. System voltage detection
          2. CPU/System temperature detection
          3. CPU/System fan speed detection
          4. CPU/System overheating warning
          5. CPU/System fan fail warning
          6. CPU/System fan speed control
            * Whether the fan speed control function is supported will depend on the cooler you install.
        • BIOS
          1. 2 x 64 Mbit flash
          2. Use of licensed AMI UEFI BIOS
          3. Support for DualBIOS™
          4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
        • Características Exclusivas
          1. Support for APP Center
            * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
            3D OSD
            @BIOS
            AutoGreen
            Cloud Station
            EasyTune
            Fast Boot
            Smart TimeLock
            Smart Keyboard
            Smart Backup
            System Information Viewer
            USB Blocker
          2. Support for Q-Flash
          3. Support for Smart Switch
          4. Support for Xpress Install
        • Pacote de Software
          1. Norton® Internet Security (OEM version)
          2. cFosSpeed
        • Sistema Operacional
          1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
          2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
            * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
        • Form Factor
          1. Micro ATX Form Factor; 24.4cm x 22.5cm
        • Observação
          1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
          2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

          * Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.
          * Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
          * Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
          * Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida
