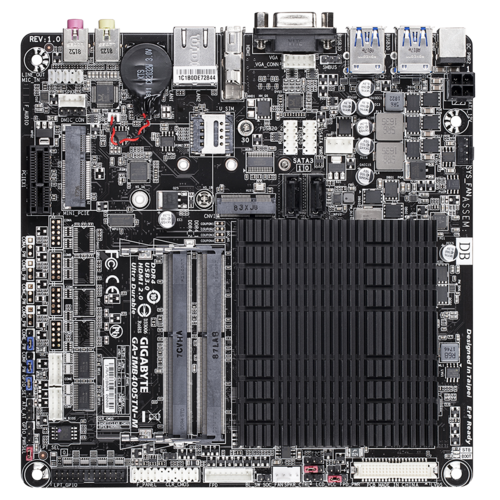

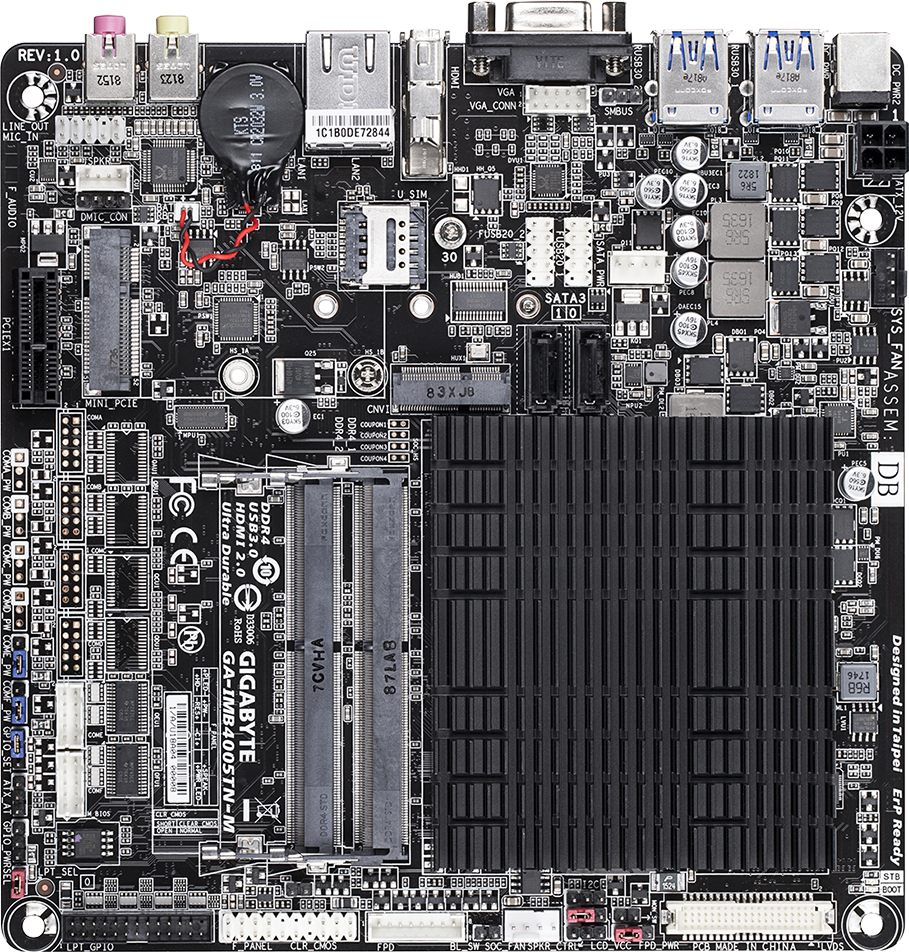

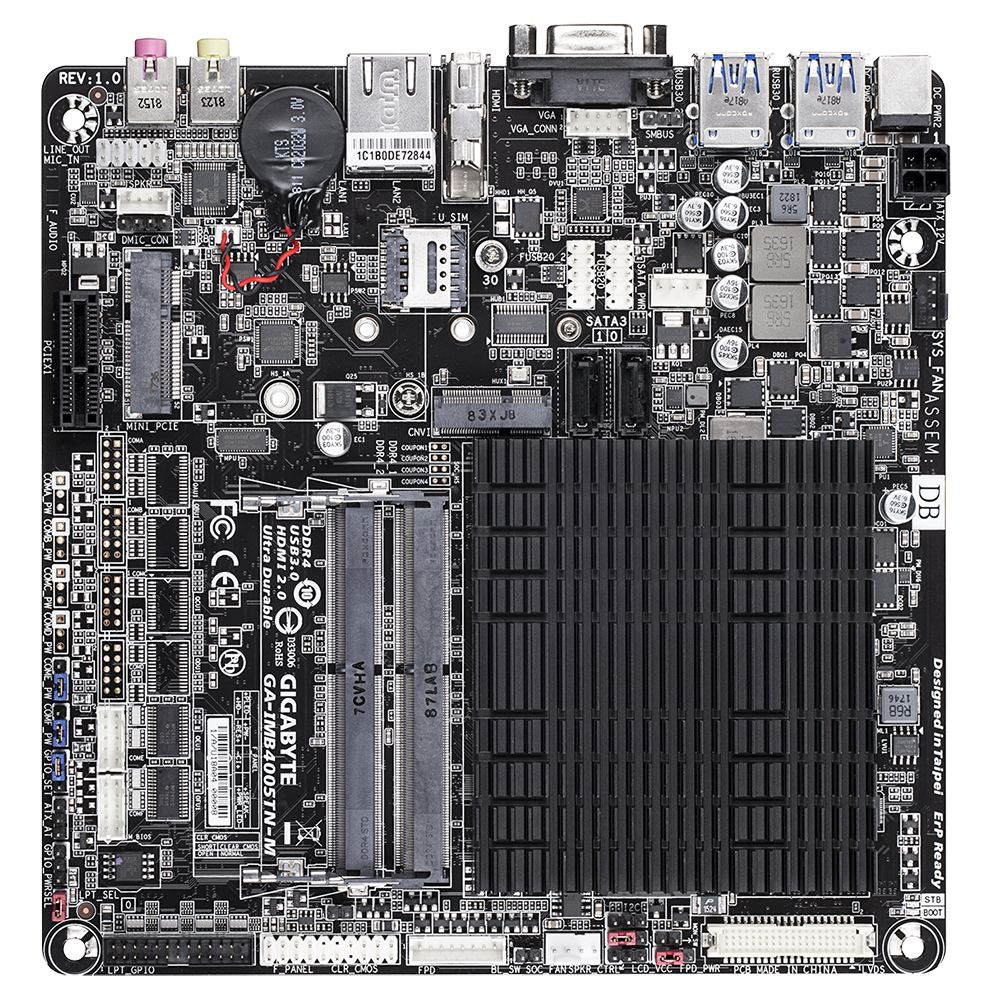

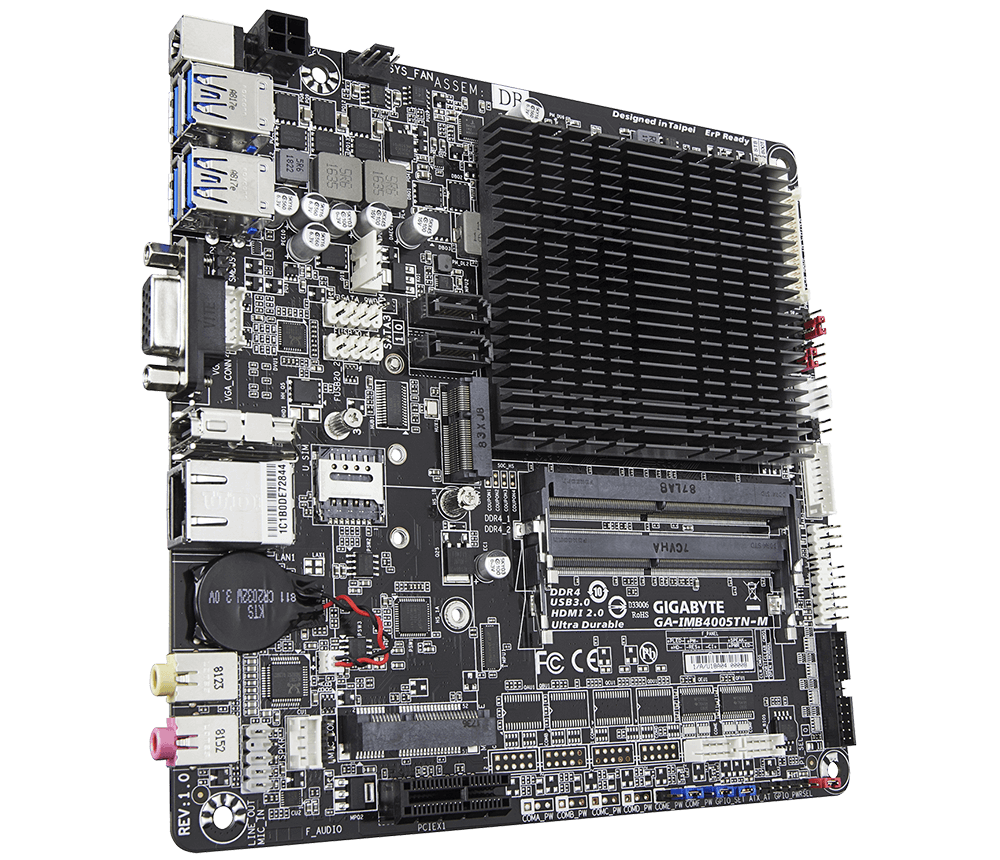

GA-IMB4005TN-M (Rev. 1.0)

Compare

1/3

Built-in Intel^® Celeron™ J4005 (up to 2.7 GHz) dual-core processor
GIGABYTE Ultra Durable™ Technology
Dual channel DDR4 SO-DIMM slot support
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
GbE LAN with WOL/PXE support and high ESD Protection
2 x RS232, Digital I/O 8-in/8-out
M.2 Socket 3 Key-M for PCIe NVMe or SATA Storage Support
Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
LVDS Header for System Integrated Flat Panel Display Support

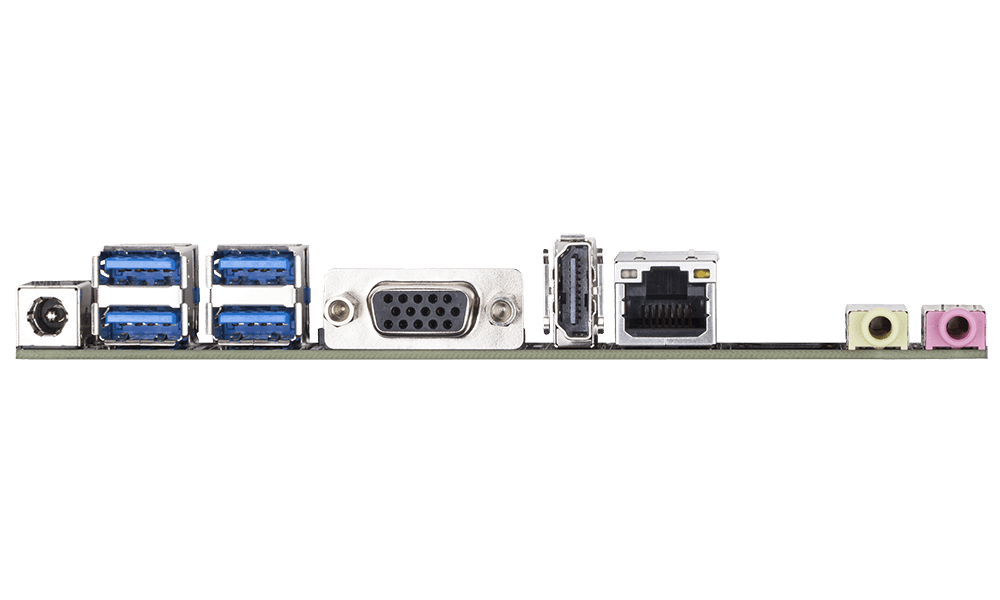

Rear Panel HDMI 2.0 & D-sub connectors for Multi-Display Connection
Amplified Speaker Header Able to Drive Up to 2W System Integrated Speaker
Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design
Compatible with GIGABYTE Thin mini ITX Chassis

Visão Geral

Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Electrostatic Protection
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel^® HD Graphics via HDMI.
HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

GIGABYTE @BIOS

The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.

GIGABYTE Ultra Durable™
GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
Intel^® Celeron™ J4005 Processor
The Intel^® Celeron™ J4005 Dual-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 14nm manufacturing process, the Intel^® Celeron™ J4005 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts. The Intel^® Celeron™ J4005 boasts excellent performance including DX12 on Intel^® HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback.
Gigabit LAN com suporte para WOL e PXE

Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.

* Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.

* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida.
