GA-Z170X-Designare (Rev. 1.0)
Intel® Z170 Chipset
1/4
- Supports 7th / 6th Generation Intel® Core™ Processor
- Dual Channel, Non-ECC Unbuffered DDR4, 4 DIMMs

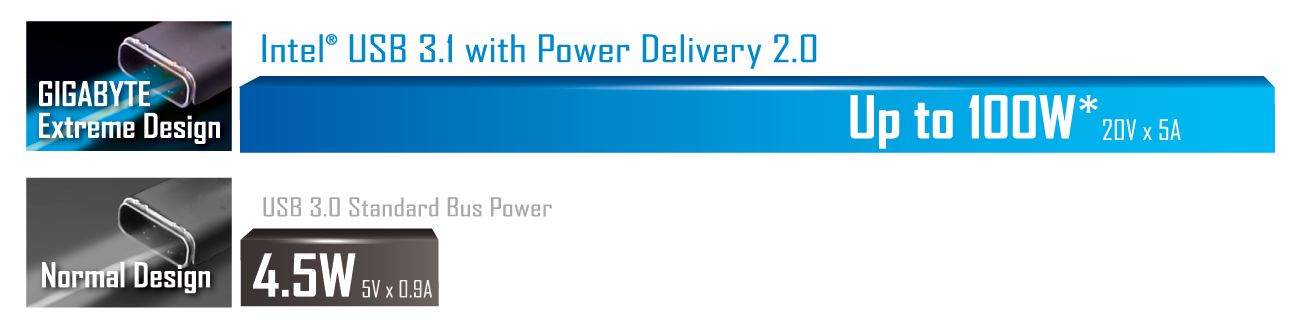

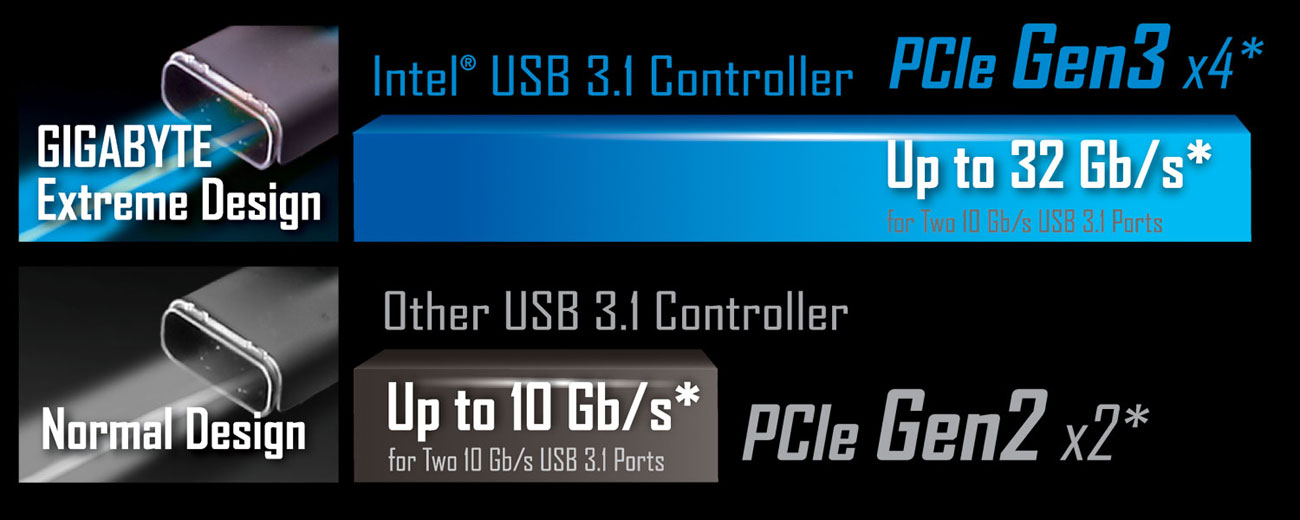

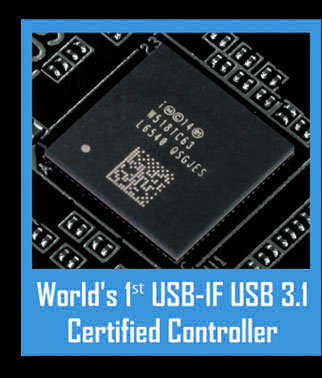

- Intel® USB 3.1 with 2 USB Type-C™ & PD 2.0 100W Support

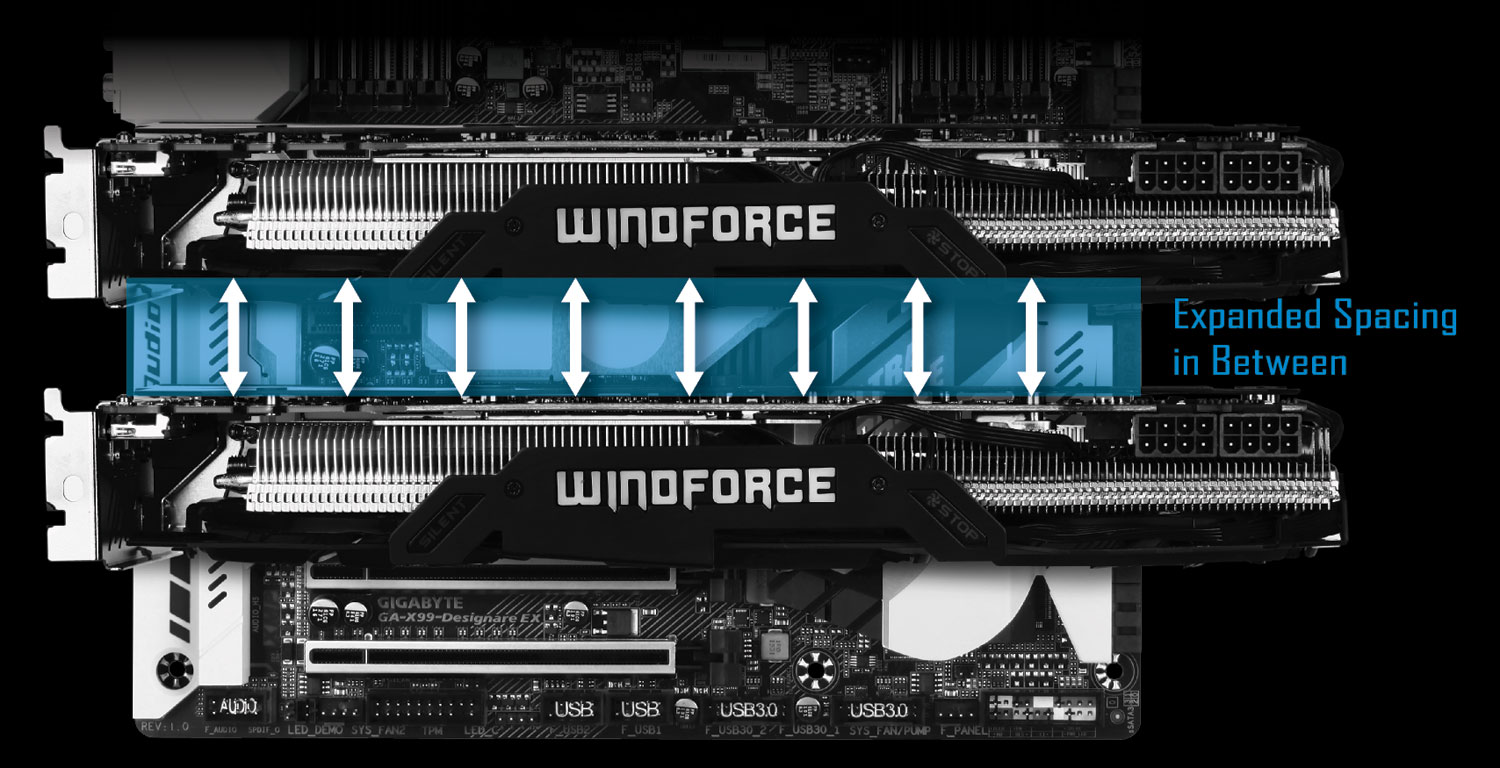

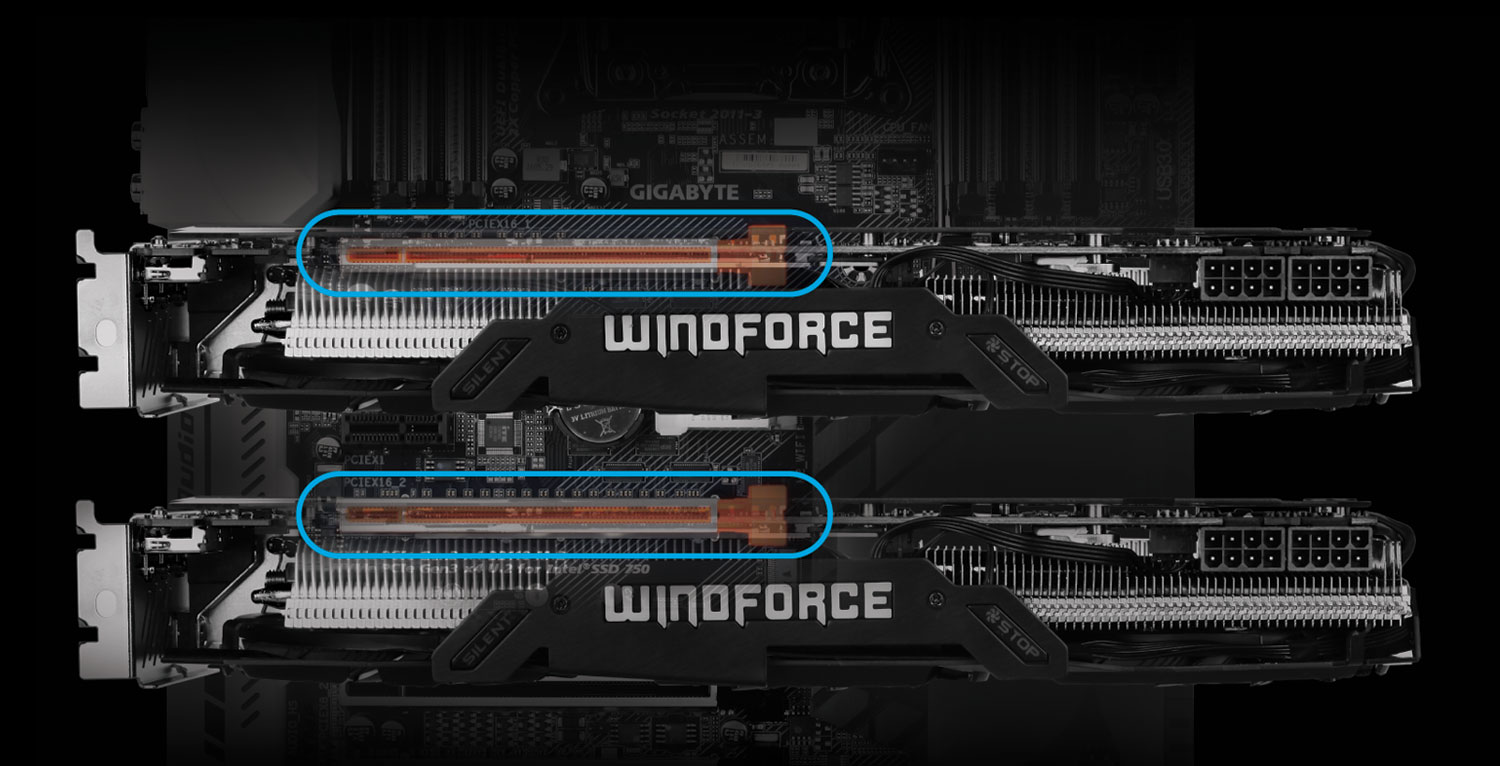

- 2-Way SLI™ & CrossFire™ Multi-Graphics Support

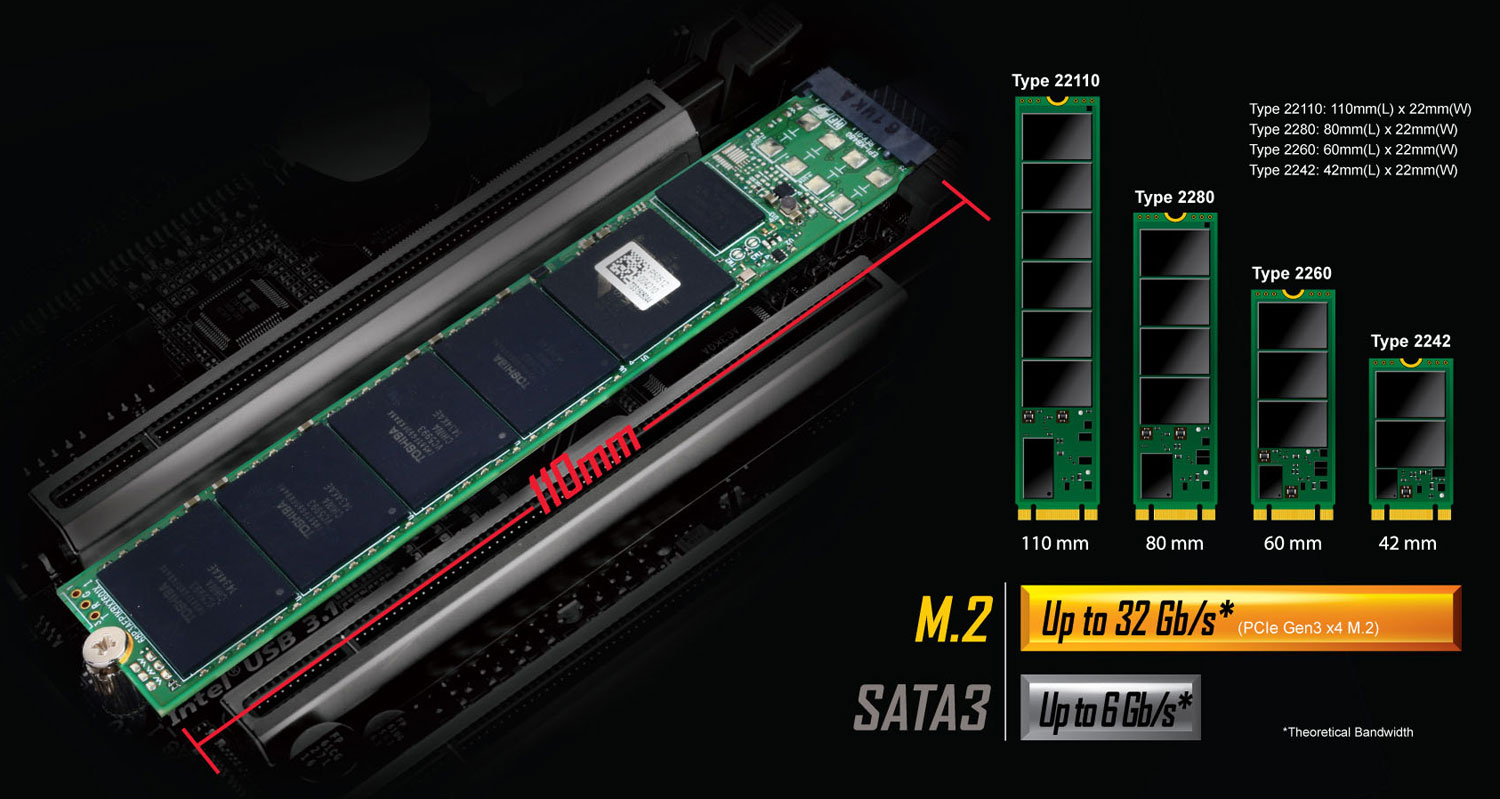

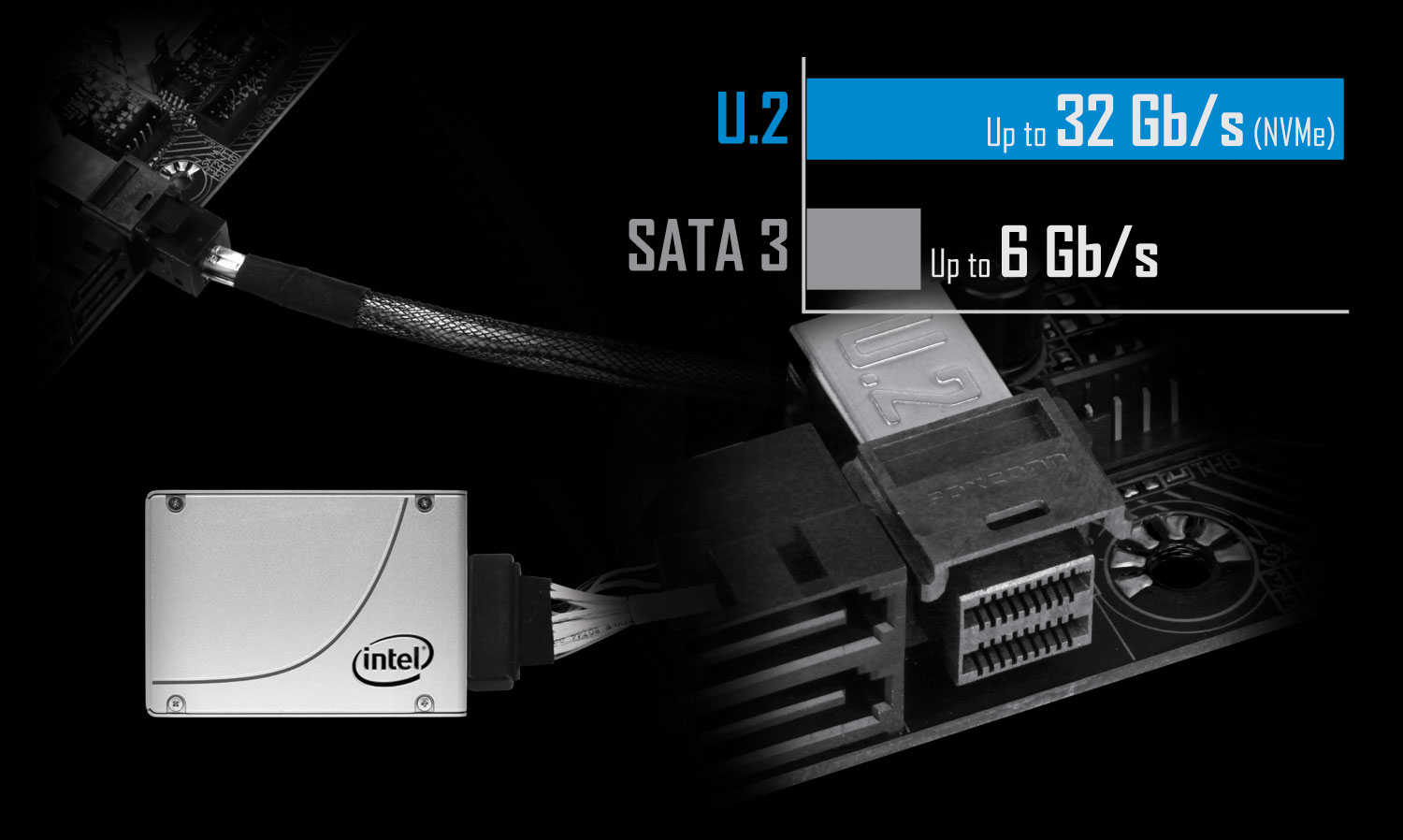

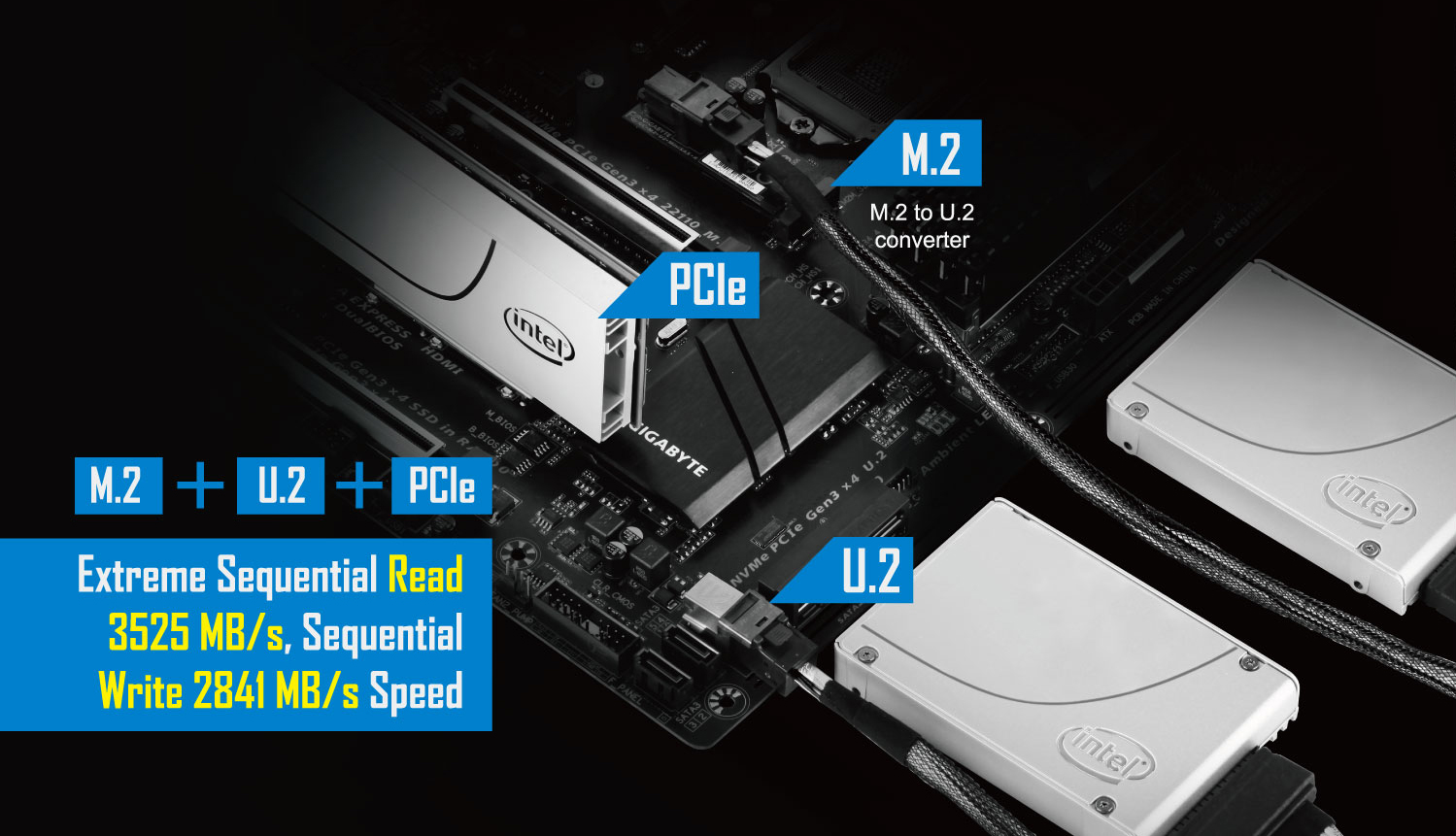

- NVMe PCIe Gen3 x4 22110 M.2 Interface & U.2 Interface for Intel® SSD 750
- Best Support for 3 Intel® SSD 750 Devices in RAID 0
- 2 SATA Express Connectors for Up to 16Gb/s Data Transfer
- Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- 115dB SNR HD Audio with Built-in Rear Audio Amplifier
- Ambient Surround LED with RGB Multi-Color Choices
- Ultra Durable Metal Shielding over PCIe and DDR Slots
- Ultra Durable Anti-Sulfur Resistors for Longer Lifespan
- Ultra Durable Anti-Rust Rear I/O Connectors

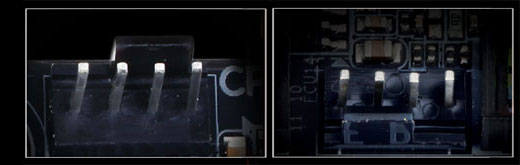

- Dual Hybrid Fan Headers with Precise PWM / Voltage Control for Water Pump & Fan
- GIGABYTE UEFI DualBIOS™ Technology
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- Rear Panel Mini DisplayPort-In for Future Feature Upgrade
Visão Geral

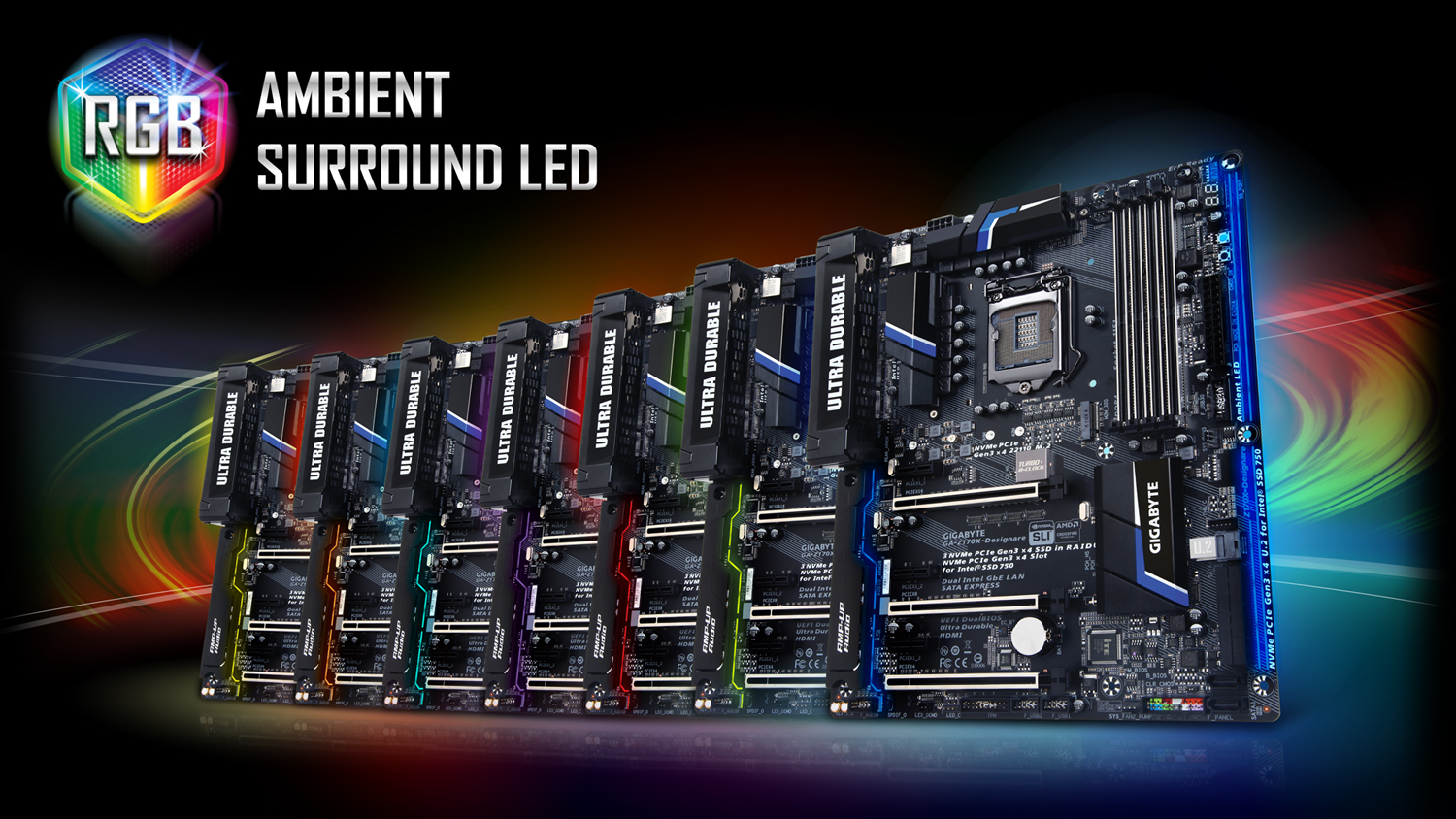

Ambient Surround LEDSet the Color that Matches Your Style
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned Ambient LED application, the user has complete control over the LEDs which surround the motherboard.
Light Up Your Case to Match your Motherboard

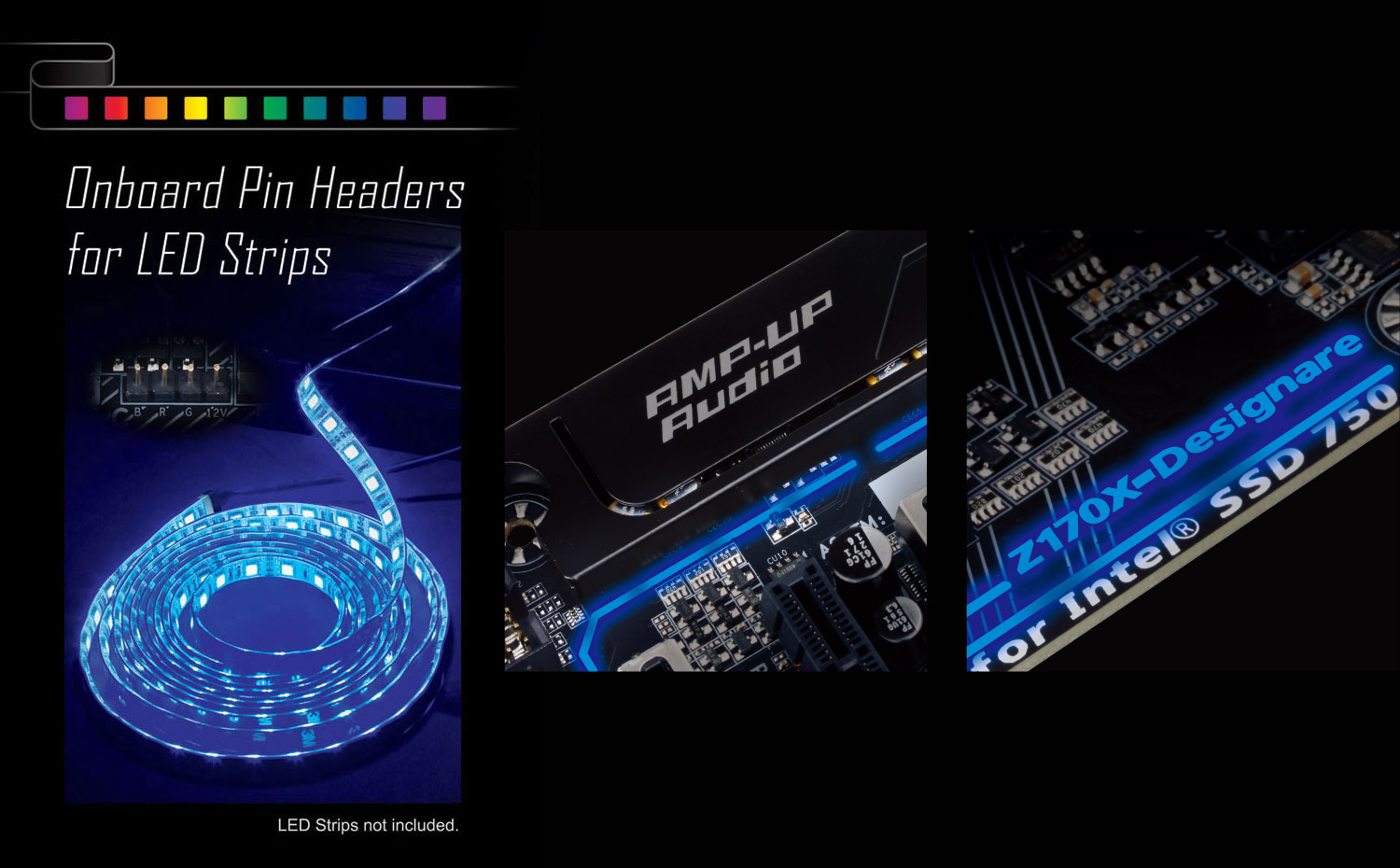

With an onboard Pin Header for aftermarket LED Strips, users now have the ability to sync the lighting in their computer case with the lighting on their motherboard. By using the Ambient LED Application, included in GIGABYTE APP Center, users are also able to specify the lighting modes available and ensure that everything is illuminating their system in harmony.- NVIDIA® QUADRO® Professional Graphics Supports

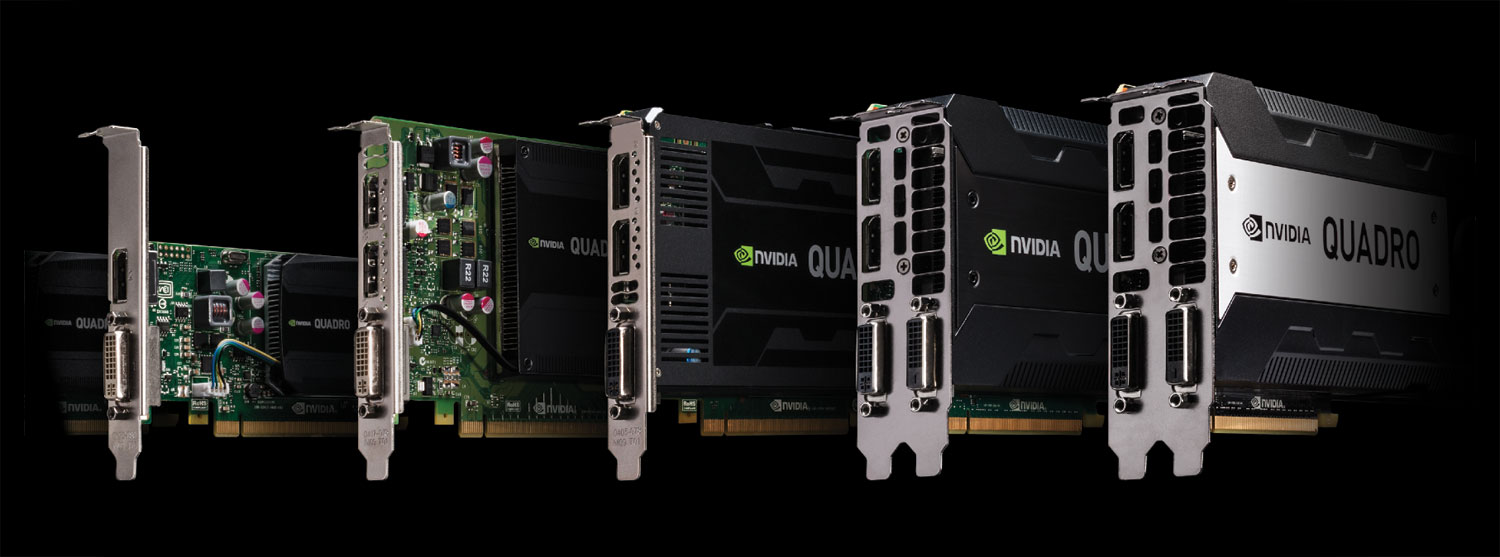

NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.
- Immersive VR
Gaming Experience> VR requires 30% more performance than Full HD graphics for a steady 60FPS or greater.
> Only Gaming PCs can provide the best VR experience.To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality.
With technologies such as Thunderbolt™ 3 to transfer data and video, NVMe support via M.2 or U.2, and a one piece metal shielding to brace for heavier discrete graphics cards its obvious that GIGABYTE has the tools you need to start your journey in VR. To set the mood GIGABYTE Motherboards include Ambient Surround LED to put you in the center of action.Recommended configuration for VR Gaming PC- Graphics Card: NVIDIA GTX 970 / AMD R9 290 or greater, Compatible HDMI 1.3 video output
- CPU: Intel i5-6600K equivalent or greater
- Motherboard: GIGABYTE X99/Z170/H170/B150 motherboards
- Memory: 8GB RAM or greater
- USB Ports:3x USB 3.0 ports plus 1x USB 2.0 port or greater

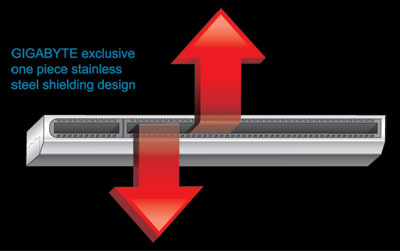

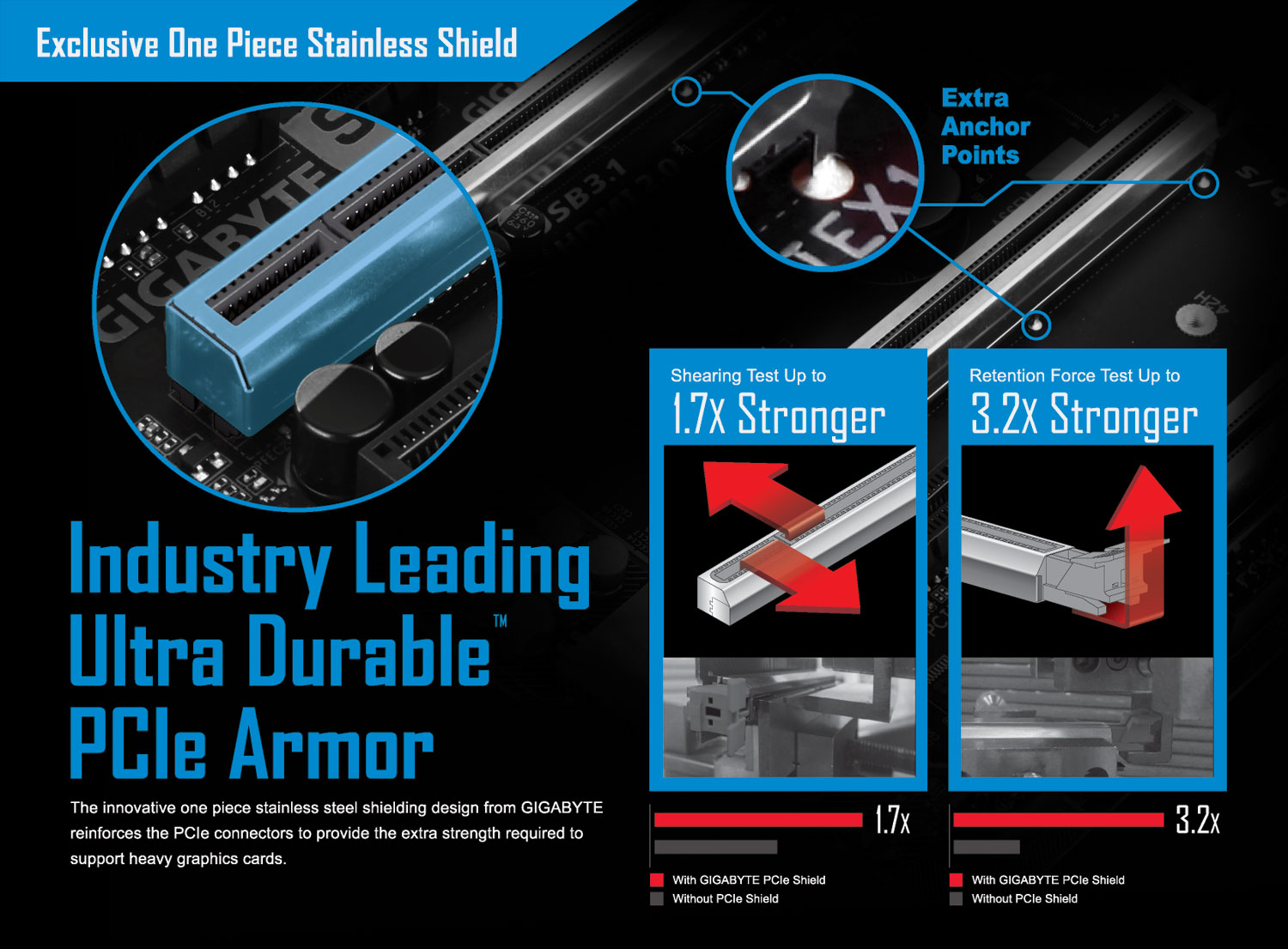

- OS: Windows 7 SPI 64-bit or newerAny copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only. - Ultra Durable™ Memory ArmorGIGABYTE’s exclusive one piece stainless steel shielding design prevents against PCB distortion and twist (Plate bending) in addition to preventing any possible ESD interference.
Product features may vary by model.Photo for reference only. - Proteção Anti-Enxofre
nos ResistoresOs compostos de enxofre no ar podem penetrar nos pequenos resistores da placa e criar uma reação química fazendo com que estes resistores se abram ou sofram curtos. Se qualquer uma dessas situações acontecer a placa-mãe deixará de funcionar. Ao equipar os resistores com um anti-enxofre, a GIGABYTE oferece às placas-mãe Ultra Durable um significado totalmente inovador.Product features may vary by model.
Anti-sulfur product: An alloy layer has been
added to protect the silver layer and prevents
the sulfurization reaction from taking place.
Without the anti-sulfur layer: The electrode terminals
lack a protective layer, which means that oxygen or other environmental elements can penetrate the Ni (Nickel) layer causing a sulfurization reaction and degrade the ability for the electrode to conduct electricity properly.
Projeto patenteado DualBIOS ™ (UEFI) GIGABYTEAs placas-mãe GIGABYTE Ultra Durable ™ possuem o GIGABYTE DualBIOS ™, uma tecnologia exclusiva da GIGABYTE que protege indiscutivelmente um dos componentes mais importantes do seu PC, o BIOS. O GIGABYTE DualBIOS ™ significa que sua placa-mãe possui um "BIOS principal" e um "BIOS de backup", tornando os usuários protegidos da falha do BIOS devido a ataques de vírus, mau funcionamento do hardware, configurações de OC inadequadas ou falha de energia durante o processo de atualização.
Long Lifespan Durable Black™ Solid CapsGIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.
15μ Gold Plated CPU Socket DesignGIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
Turbo B-Clock

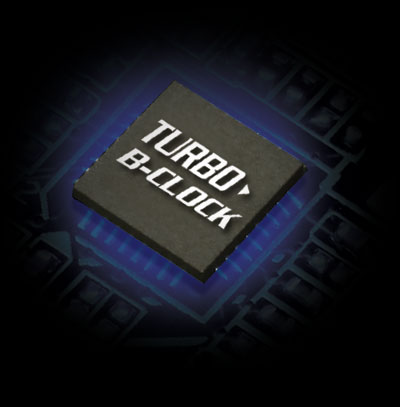

Built-in Advanced Performance Tuning ICThanks to the onboard Turbo B-Clock Tuning IC, GIGABYTE Z170X-Designare motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
*Turbo B-Clock overclocking range may vary according to CPU capabilities.
- Support for DDR4 XMP Up to 4000MHz and Beyond*GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
What is XMP?DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.
* XMP Profile support may vary depending on memory module. Please visit www.gigabyte.com to see the complete validated memory support list. - High Definition Audio DesignThe Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

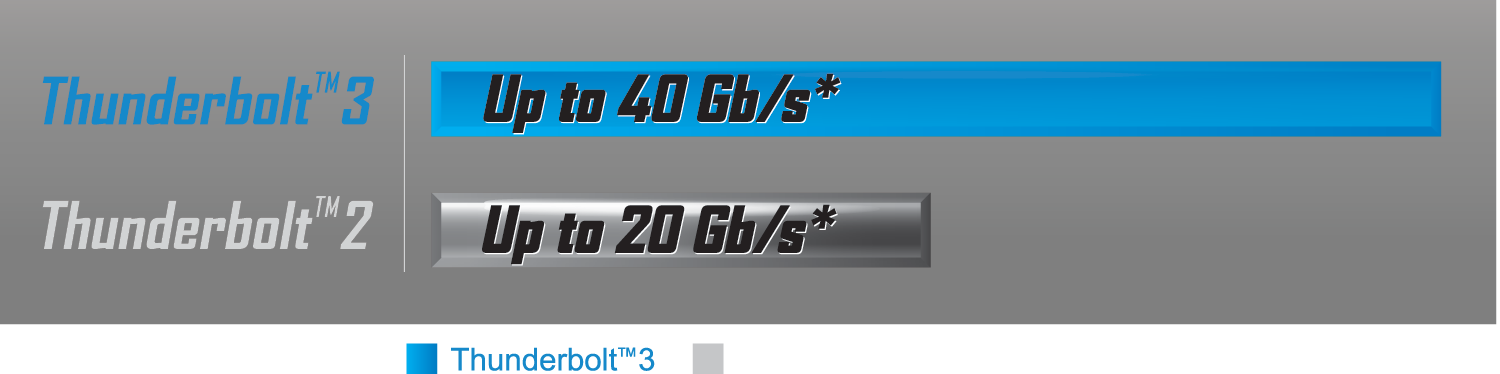

- Next Generation 40 Gb/s Thunderbolt™ 3Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection
Intel® Thunderbolt™ 3 Certified MotherboardPowered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over a USB Type-C™ connector on the back I/O of the GIGABYTE Z170X-Designare, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.
To upgrade the Z170X-Designare, go to : Free Upgrade to Thunderbolt™ 3

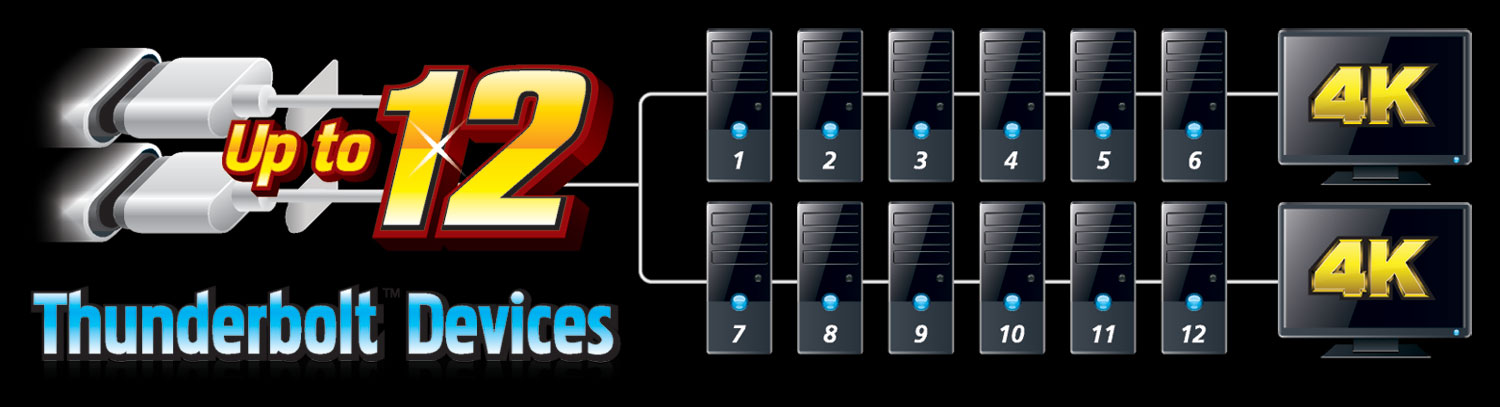

Daisy-chain Multiple DevicesSupport for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z170X-Designare is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the Z170X-Designare’s dual USB Type-C™ ports.
Compatibility may vary according to system configuration and device specifications. - NVIDIA® / AMD® / Intel®
Graphics Support for
Thunderbolt™ 3*GIGABYTE implementing Thunderbolt™ 3 allows users to utilize all facets of this technology. GIGABYTE’s unique design of incorporating a video input port, via Mini DisplayPort, allows users to take full advantage of their discrete NVIDIA or AMD Graphics Cards. By merging the performance of these discrete cards with Thunderbolt™ 3 users can now leverage the fast data transfer speeds and latest gaming technologies into a single Thunderbolt™ (USB Type-C™) cable.Note: Product features may vary by model. Photo for reference only.
