• Suporte para processadores da 7ª / 6ª Geração Intel® Core™
  • Dual Channel DDR4, 4 DIMMs
  • Intel® USB 3.1 com USB Type-C™ - O próximo conector universal
  • Suporte Gráfico 3-Way com revestimento metálico Ultra Durable no PCIe
  • Dual PCIe Gen3 x4 M.2 Connectors com taxa de transferência de até 32Gb/s (suporte a PCIe & SATA SSD)
  • 3 conectores SATA Express com velocidade de transferência de dados de até 16Gb/s
  • Amplificador de áudio de 115dB SNR HD Audio Built-in
  • Rede Killer™ E2200 e Intel® para jogos
  • Capacitores de áudio de alta qualidade e Caminho de LED
  • APP Center incluindo o EasyTune™ e o Cloud Station™
  • UEFI DualBIOS™ da GIGABYTE
  • The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16Gb/s, which means you have extra bandwidth to take full control of the 10Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
    Intel USB 3.1

  • Connecting the Future - USB Type-C™:
    The World's Next Universal Connector
    Reversible USB Type-C™ with USB 3.1
    The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.


    * Display feature may vary by model.


    Connecting the Future - USB Type-C™
  • Realtek ALC1150 115dB SNR HD Audio
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.


    Realtek ALC1150 115dB SNR HD Audio

  • Additional Sound Blaster X-Fi MB3

    GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.


    X-Fi MB3
  • GIGABYTE Exclusive : Upgradable OP-AMP
    Customizable
    + Users can choose audio quality based on individual listening preferences.
    + Wide availability of additional OP-AMPs.


    Low Cost way to dramatically improve audio quality
    + Improve audio dynamics and overall sound-quality with little cost.
    + No need for expensive speakers or high-end audio equipment.



    Exclusive onboard 'Gain Boost' selector switches
    + Select either standard 2.5x or high-amplification 6x mode.
    + 6x mode is ideal for high impedance speakers and headphones


    OP-AMP
  • High End Audio Capacitors
    GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

    High End Audio Capacitors

  • USB DAC-UP


    The above photos are for reference only.

    Clean, low-noise power for your Digital-to-Analog Audio converter

    GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.


    Dual USB DAC-UP Ports

  • Killer™ E2200 Gaming Network / Intel® Gigabit LAN
    Killer™ E2200 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.
    Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

    Killer™ E2200 Gaming Network
  • Killer Youtube Video
  • 2-Way SLI™/3-Way CrossFire™ Multi-Graphics
    Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.



    2-Way SLI™/3-Way CrossFire™ Multi-Graphics




  • Industry Leading Ultra Durable™ PCIe Metal Shielding
    The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.


    Industry Leading Ultra Durable™ PCIe Metal Shieldi



  • Dual PCIe Gen3 x4 M.2
    With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

    The above photos are for reference only.

    Dual PCIe Gen3 x4 M.2
  • Turbo B-Clock:
    Built-in Advanced Performance Tuning IC

    Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 200MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
    Turbo B-Clock
  • Next Generation SATA Express
    SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.



    The above photos are for reference only. Features may vary by model.

    Next Generation SATA Express

  • All New GIGABYTE™ App Center Including EasyTune™, Cloud Station™ Utilities and More…

    GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.


    APP Center

    GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.





    Easy Tune™
    Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
    Cloud Station™
    GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
    App Center
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.


    Long Lifespan Durable Black™ Solid Caps
  • 15 Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
    15μ Gold Plated CPU Socket Design

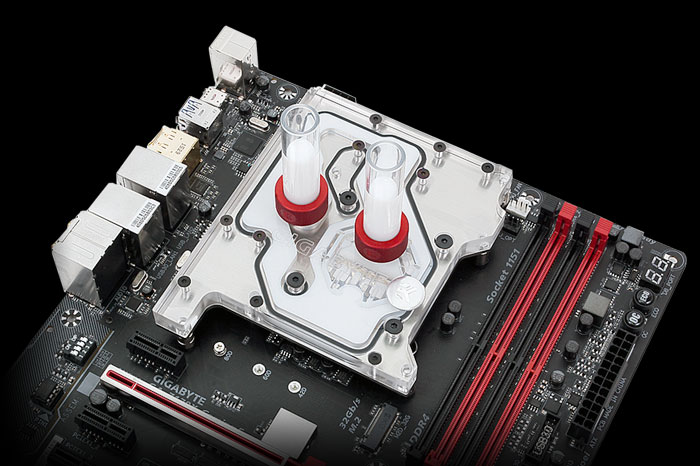

  • EKWB Water Cooling Ready
    Designed and engineered in co-operation with GIGABYTE®, this monoblock uses award winning EK-Supremacy EVO cooling engine to ensure best possible CPU cooling. This water block directly cools Intel LGA-1151 socket type CPU and power regulation (MOSFET) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with the system using weaker water pumps. Unlike other solution on the market, this is a true one-piece, sturdy and reliable liquid cooling product which requires only two connector fittings for proper operation.

    Note: EKWB water block and it’s accessories are not included with the motherboard and are not covered by the motherboard warranty. For more information about EK’s water block, please visit: https://shop.ekwb.com/ek-fb-ga-z170x-monoblock-nickel

  • 4K Suporte para Ultra HD
    Resolução de 4K é o próximo marco tecnológico na produção de conteúdo de alta definição, utilizando aproximadamente 4.000 pixels no eixo horizontal, mais de quatro vezes de densidade de pixels HD no padrão de hoje. Mplacas-mãe GIGABYTE da suporte para nativo 4K com graáficos HD integrados da Intel® via HDMI.
    4K Ultra HD Support

* Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida.
