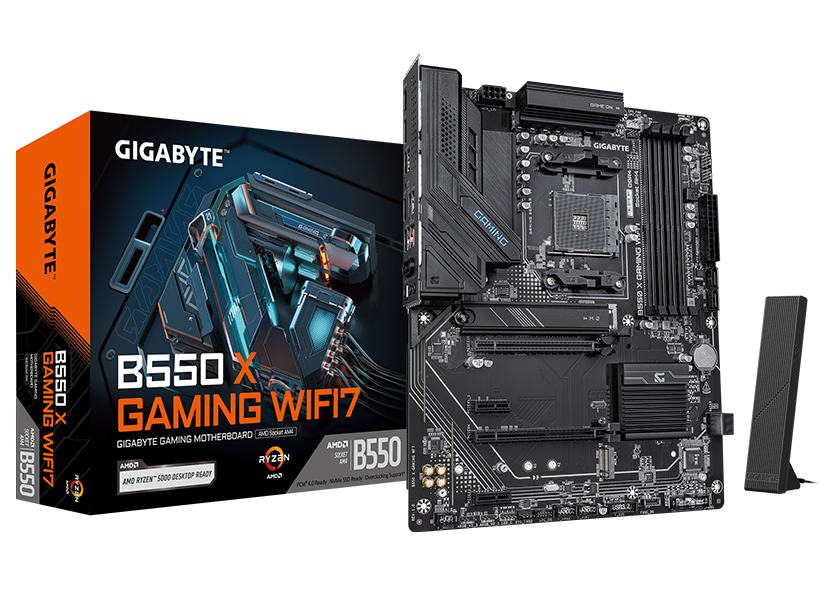

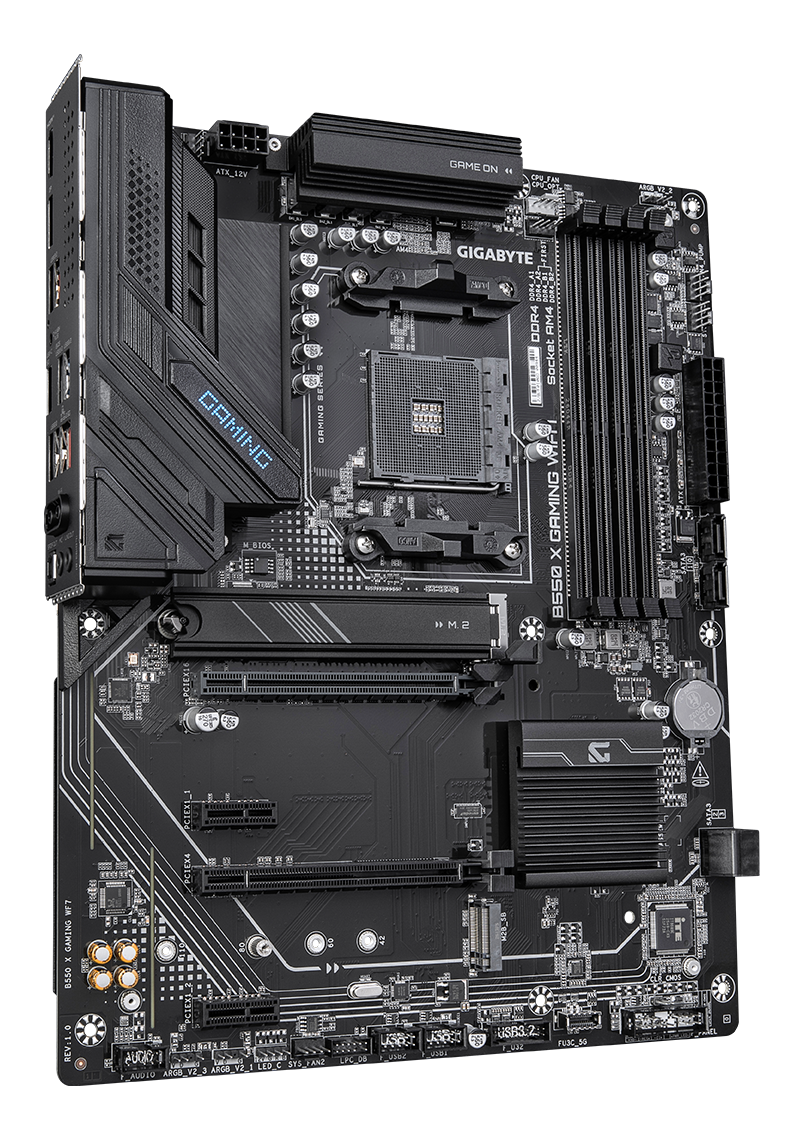

B550 X GAMING WIFI7 (Rev. 1.x)
Key Features
-

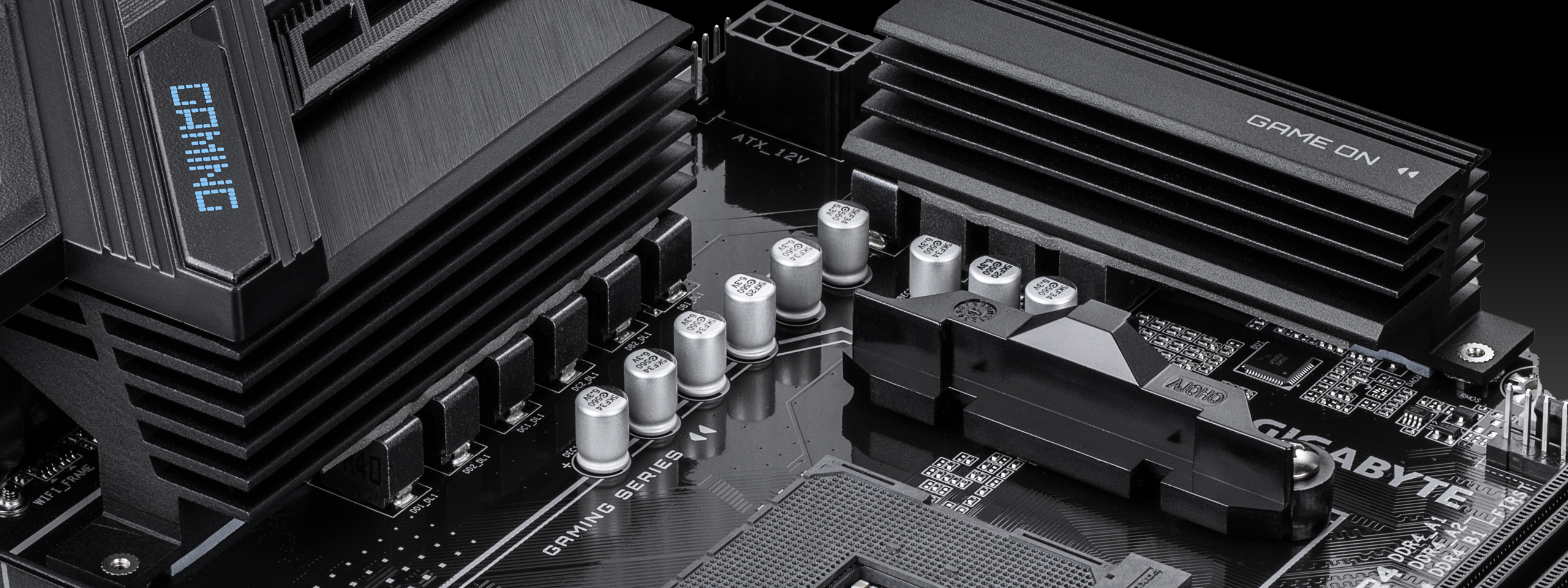

8+2 Twin Hybrid Digital VRM Design
- Premium Choke and Capacitor
-
Socket AM4 Supports AMD Ryzen™ Series Processors
-
UD Power Connector
- 24 pin ATX Power Connector
- 8 pin CPU with UD Solid Pin
-
4 x DIMMs, Dual Channel DDR4
-
2 x M.2 Slots
- 1 x PCIe 4.0 M.2 Slot
- 1 x PCIe 3.0 M.2 Slot
-
Full-length PCIe slots
- 2 x PCIe 4.0 x16
- 2 x PCIe 3.0 x1
-

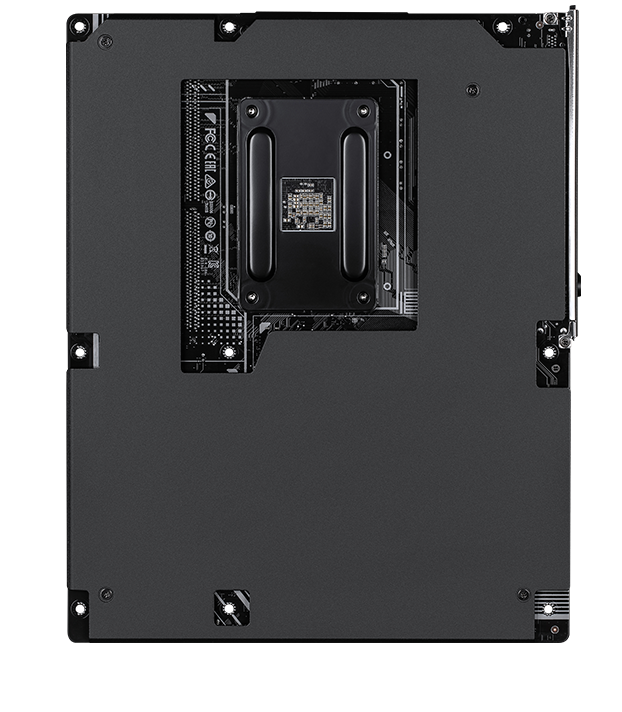

UD Base Plate
-
VRM Thermal Armor Advanced
- 5 W/mk Thermal Pad

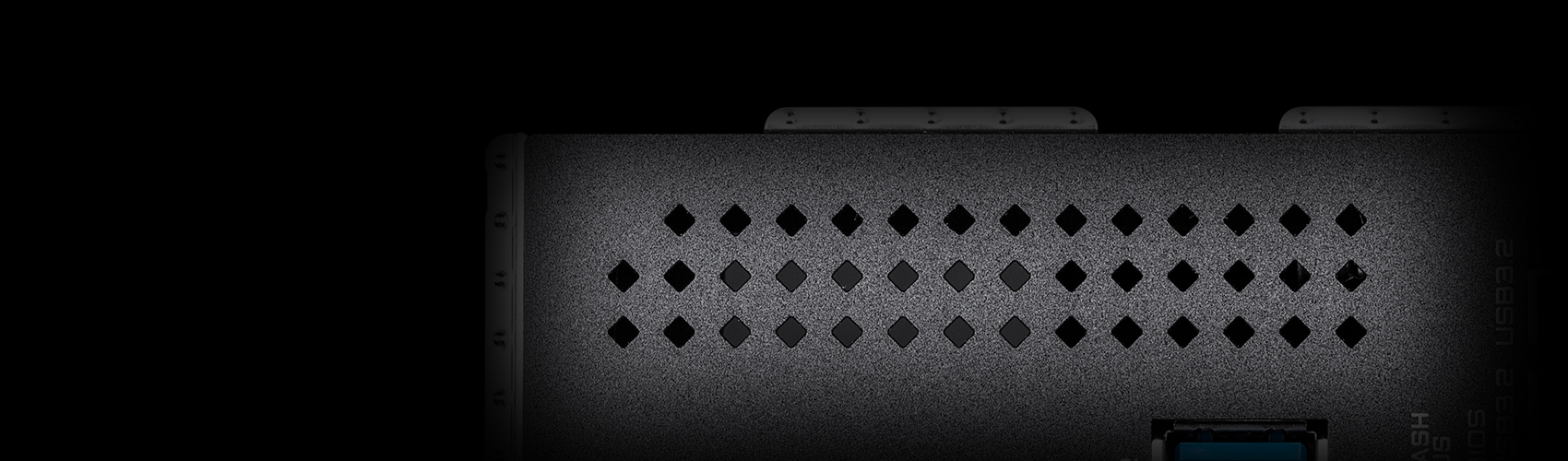

- Integrated IO Shield
-
Smart Fan 6
- Total 6* PWM / DC Fan Headers
- Dual Fan Curve Mode
-

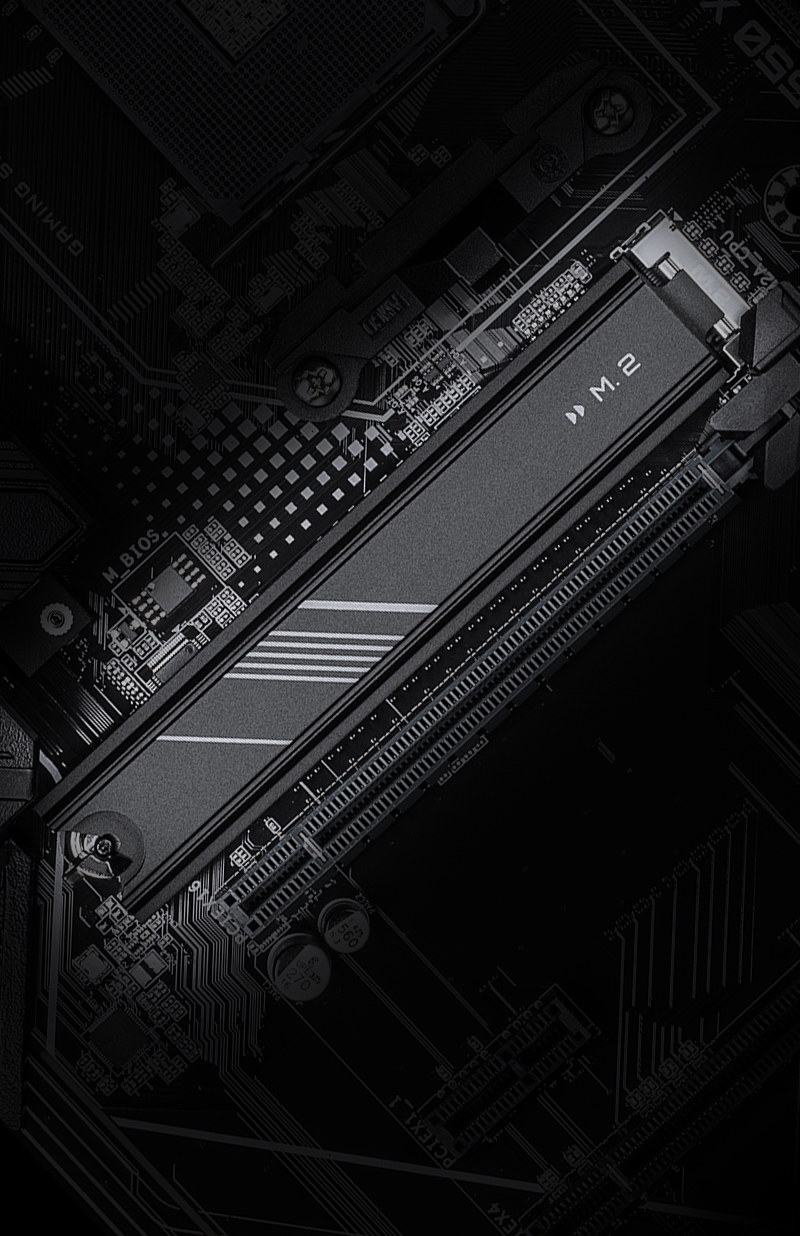

M.2 Thermal Guard
-
1 x HDMI
-
1 x Displayport
-
1 x USB 3.2 Gen 2
-
Q-FLASH PLUS Button
-
1 x USB 3.2 Gen 1 Type-C®
-
1 x USB 3.2 Gen 2/ Gen 1
-
2.5 GbE LAN
-
WIFI EZ-Plug & Wi-Fi 7
-
4 x SATA 6Gb/s
-
Hi-Fi Audio
- 8-CH HD Audio
- High-End Audio Capacitor
-
Front USB-C 5Gb/s
-
RGB FUSION
- 1 x RGB LED Header
- 3 x ARGB LED Headers
-
WIFI EZ-Plug
-
PCIe EZ-Latch
-
M.2 EZ-Latch Plus
M.2 EZ-Latch Click
EZ-Latch Un-Install Angle
Gaming Series with steady power unleash the best gaming performance.
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Unlock the full power of your multi-core CPU for unmatched performance.
*4+4 phases parallel power design
Optimized for integrated GPU performance and memory management within the CPU.

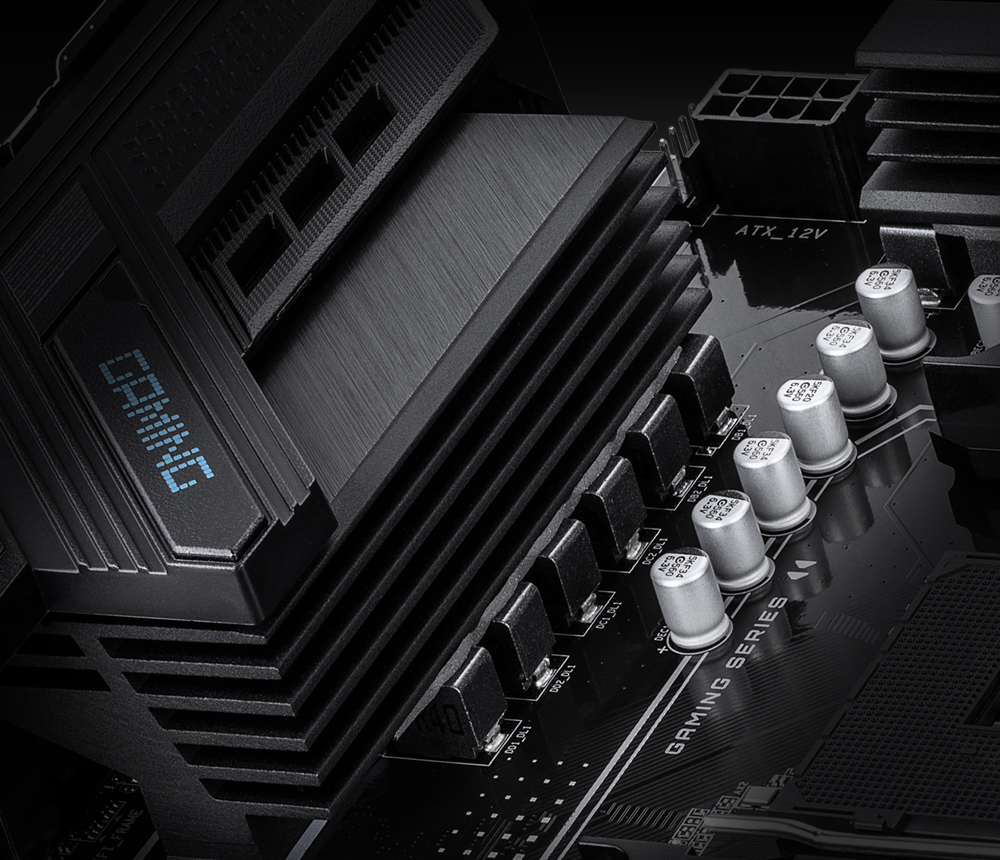

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Exceptional heat dissipation
for efficient thermal conductivity

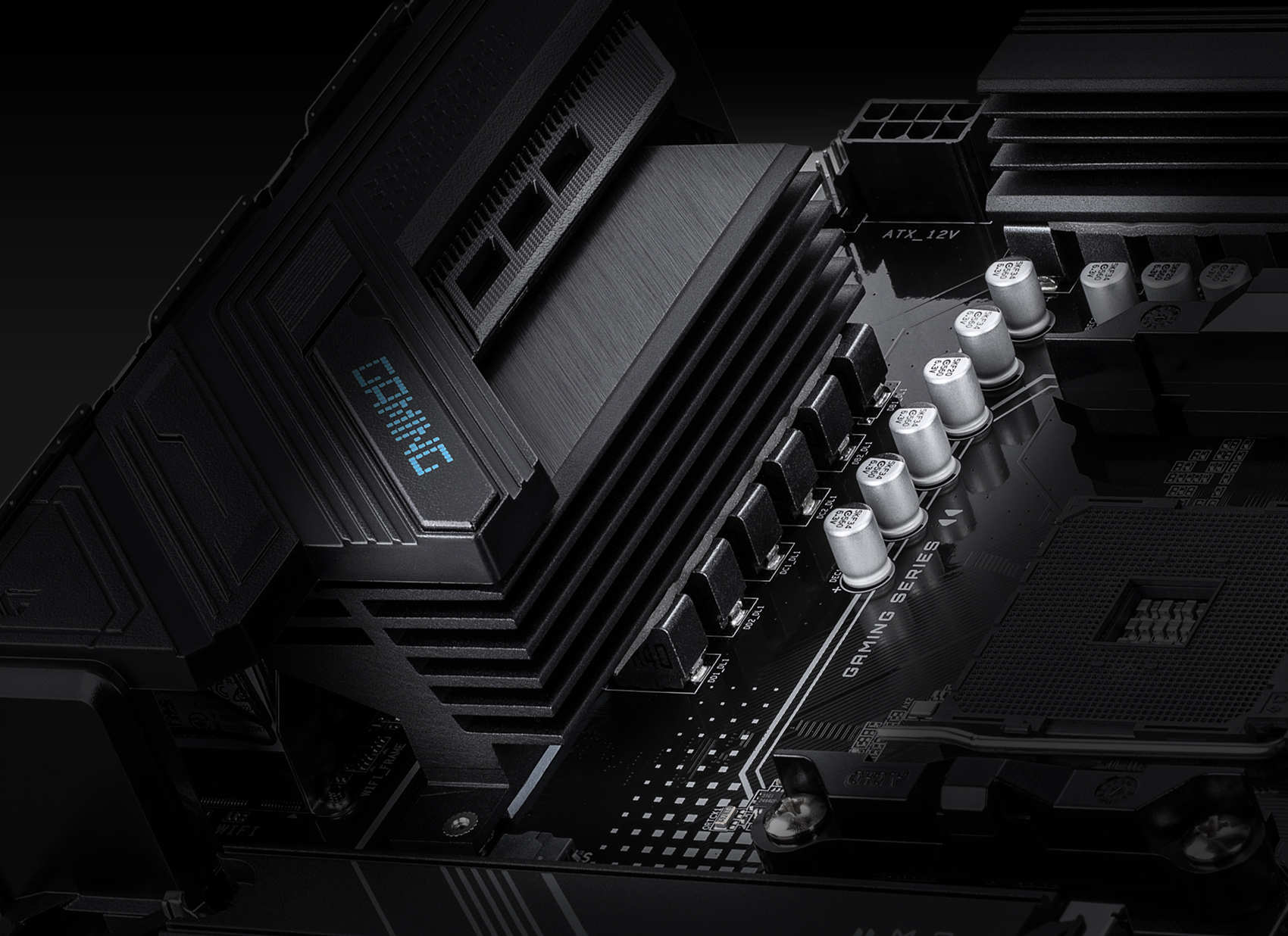

High-coverage MOSFETs with integrated molded heatsinks
- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency
- More grooves, more airflow.
- Better airflow, cooler system.
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
Big Cooling Power
Cool. Quiet. Customized.
Superior cooling performance and whisper-quiet operation for your gaming rig.
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Note: Images are for illustrative purposes and may differ based on your model.

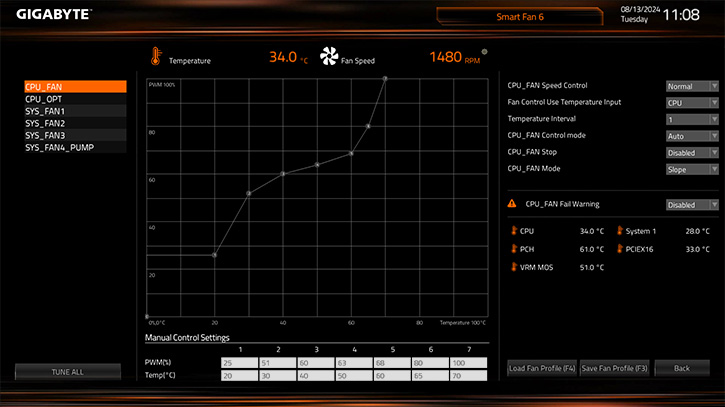

- 7 adjustable control points
- Expanded speed graph for precise adjustments
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts

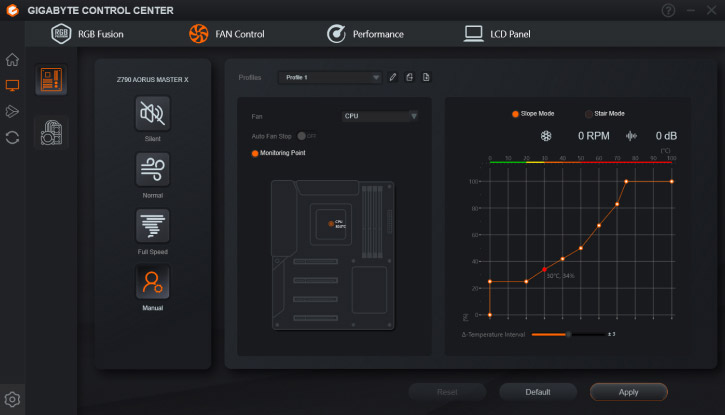

- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates
Our cutting-edge motherboard is designed for the ultimate DIY experience.

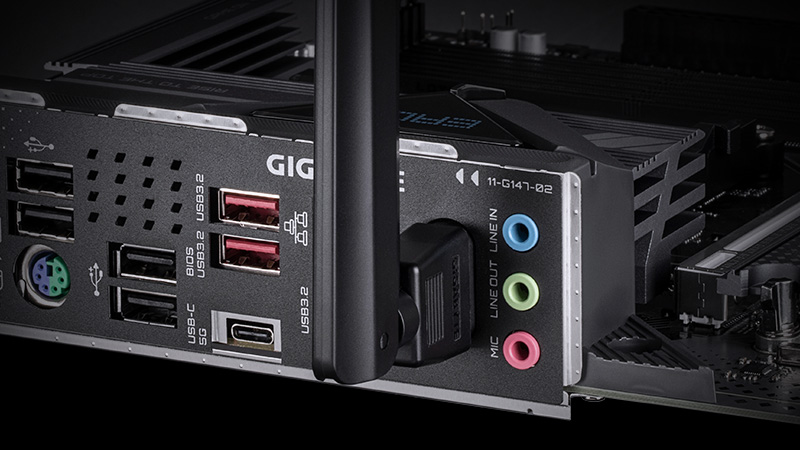

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

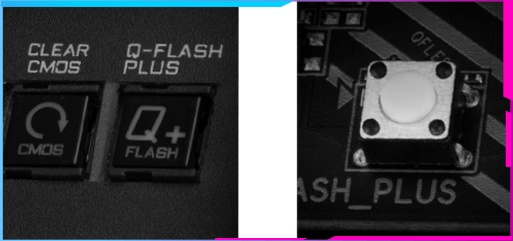

Handy, Revert, Refresh
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

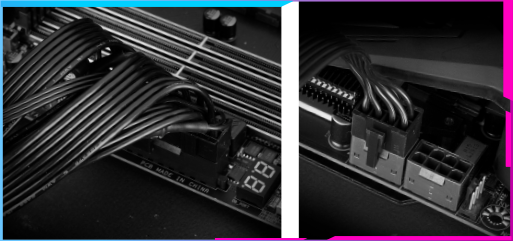

Connect the 24-pin and 8-pin power cables directly to the motherboard.

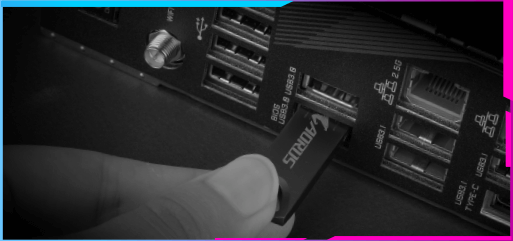

Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.

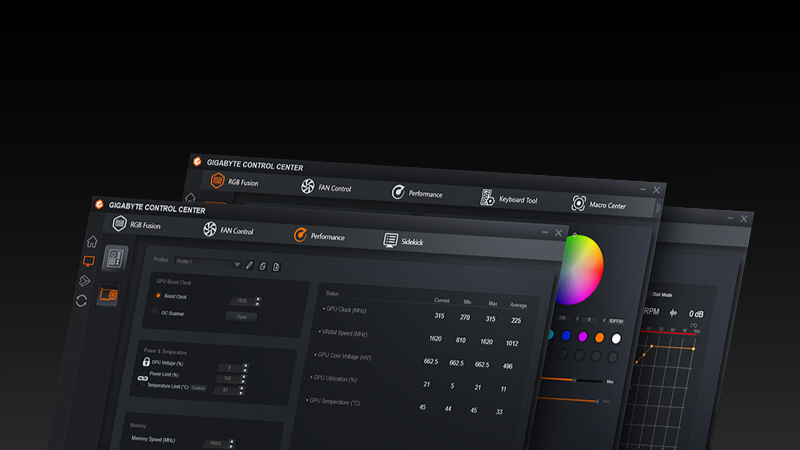

A unified software platform encompassing multiple GIGABYTE product.
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

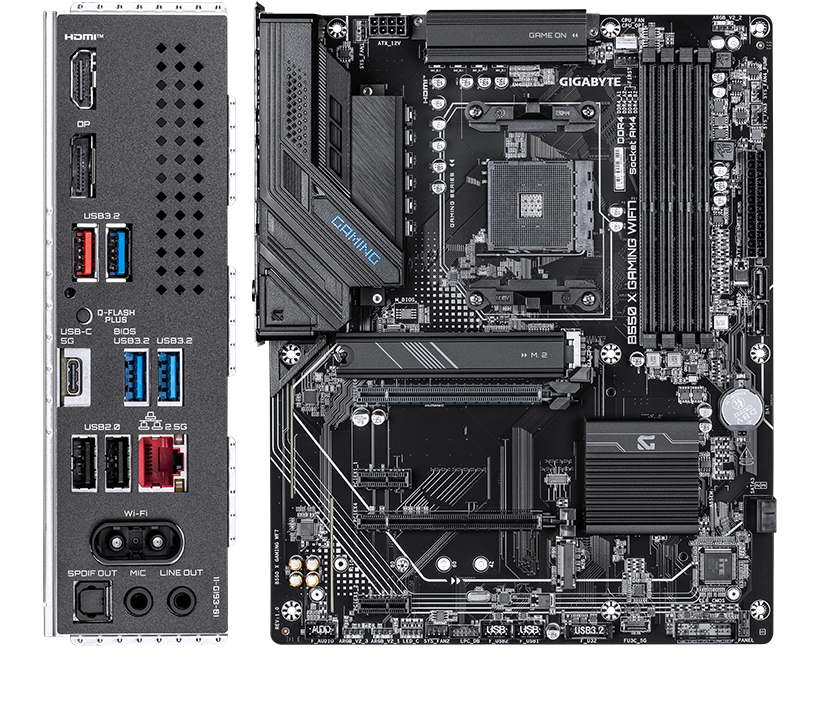

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
2.5GbE LAN
Wi-Fi 7
Directional Ultra-high Gain Antenna
design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
Wi-Fi 7 introduces support for expansive 160 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.
Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.
With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.

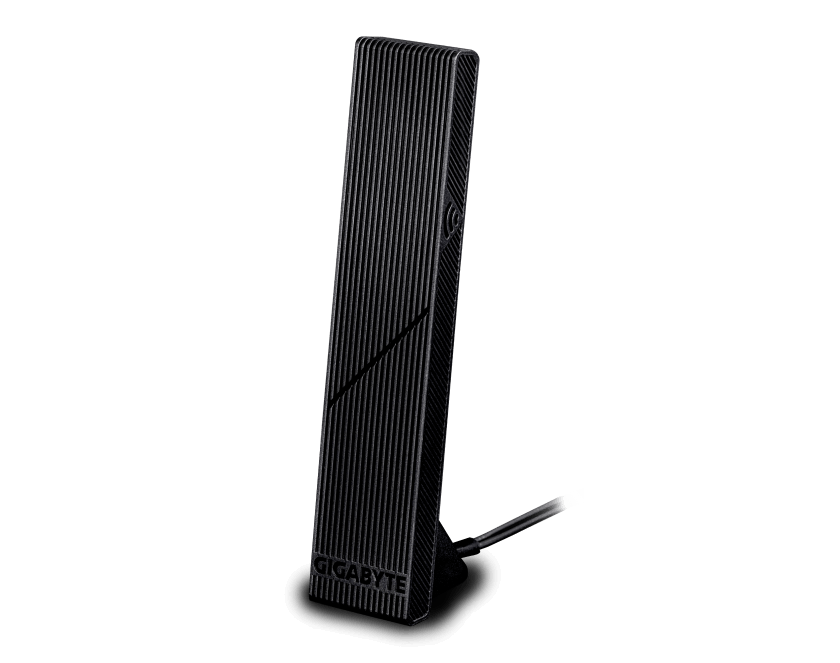

Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimized Wi-Fi signal transmission.
Direction signal
up to 5dBi
Omnidirectional signal
up to 4dBi
Magnetic Base

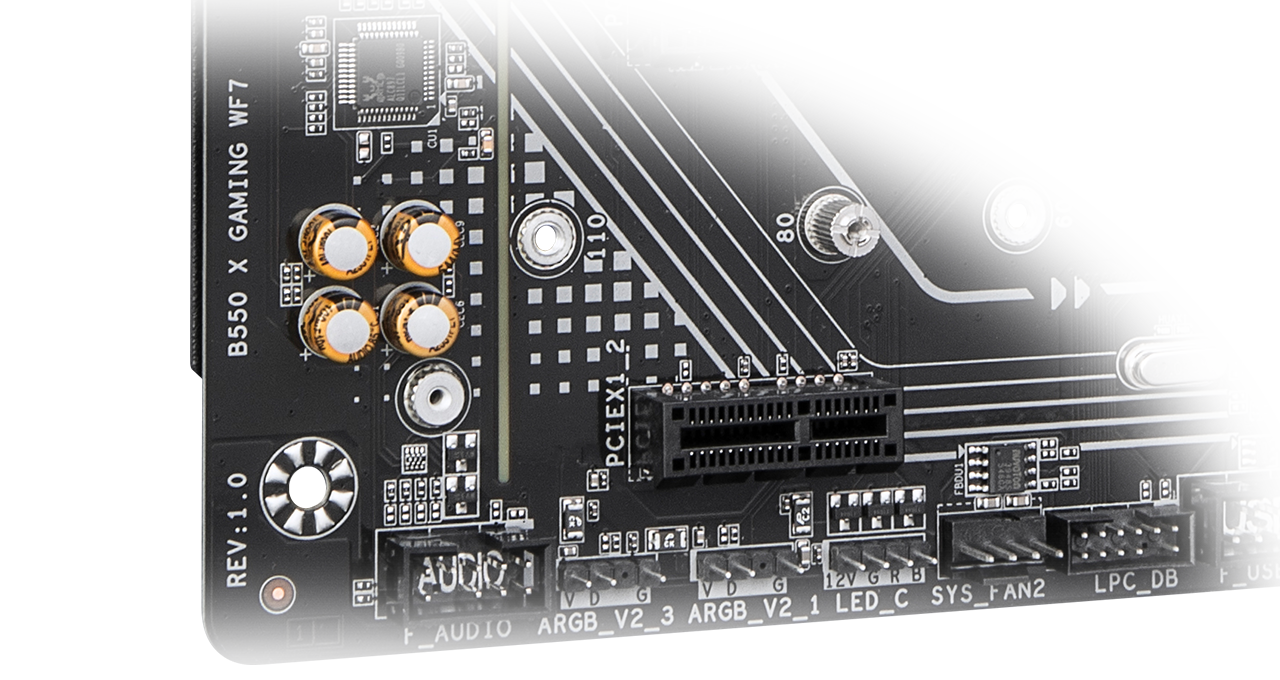

High-End Audio Capacitors
Audio Noise Guard
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

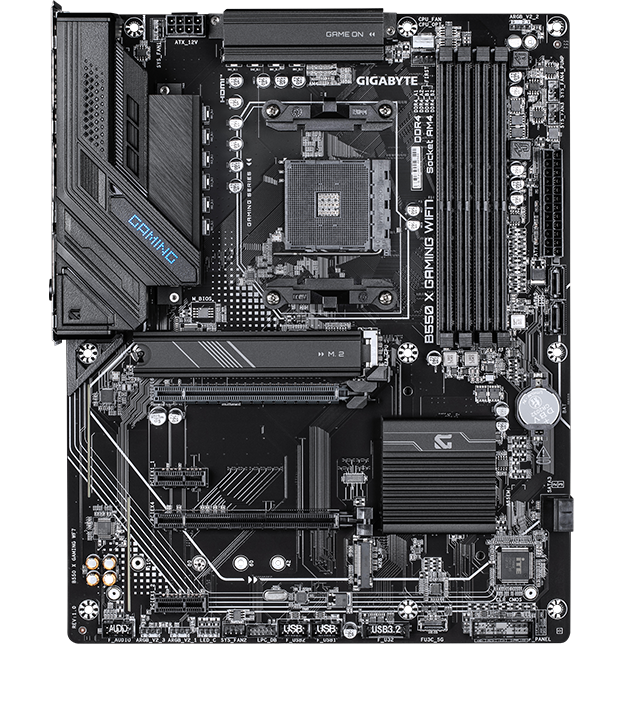

- AMD Socket AM4: Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Hybrid Digital twin 8+2 phases VRM solution
- Dual Channel DDR4: 4*DIMMs with EXPO™ Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch: PCIe slot with Quick Release & Screwless Design
- M.2 EZ-Latch Plus/ Click: M.2 slots and heatsinks with screwless design
- Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 7

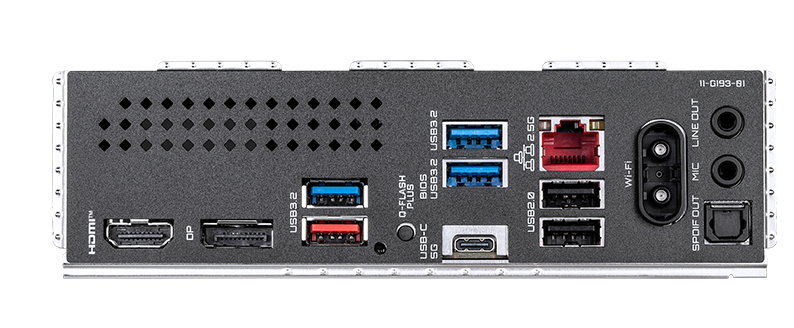

- Extended Connectivity: HDMI, Displayport
