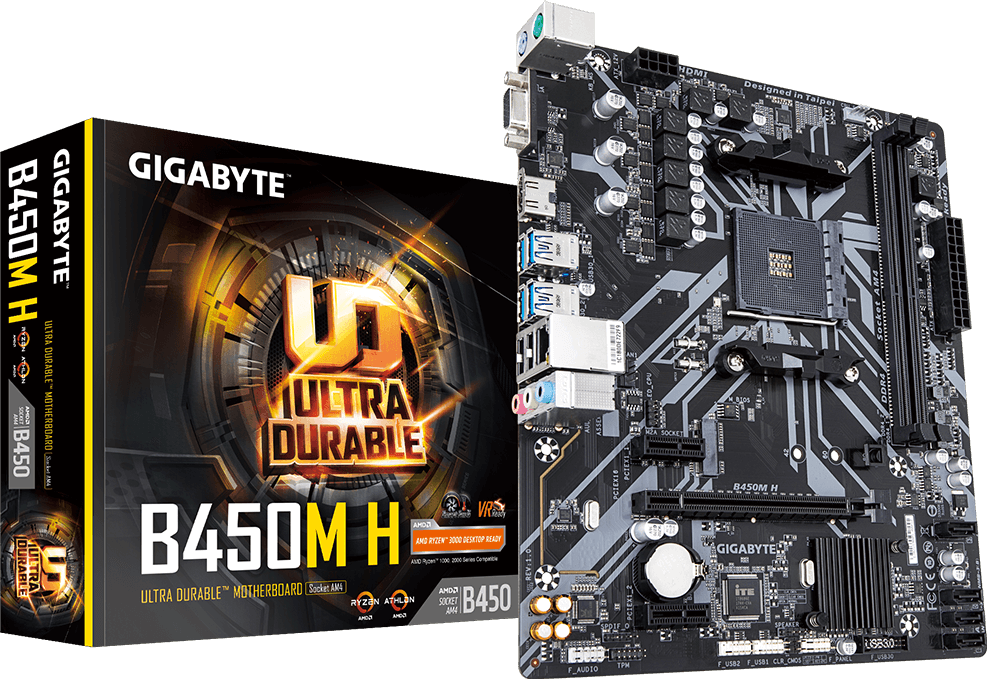

B450M H (Rev. 1.x)

AMD B450 chipset
Key FeaturesSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Processeur
    1. AMD Socket AM4, support for: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B450
  • Mémoire
    1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Carte Graphique Intégrée
  • Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
      * Support for HDMI 2.0 version and HDCP 2.2.(Note)
    Maximum shared memory of 16 GB

    (Note) Actual support may vary by CPU.
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • Réseau
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Port d'expansion
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slots
      (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
  • Interface de Stockage
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
      * Actual support may vary by CPU.
      * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
  • USB
  • Chipset:
    1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Connecteurs d'entrées/sorties internes
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x CPU cooler LED strip/RGB LED strip header
    11. 1 x USB 3.1 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    14. 1 x speaker header
    15. 1 x Clear CMOS jumper
    16. 1 x chassis intrusion header
  • Connecteur du Panneau Arrière
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x HDMI port
    5. 4 x USB 3.1 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks
  • Contrôleur d'Entrée/Sortie
    1. iTE® I/O Controller Chip
  • Monitorage Matériel
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Fonctionnalités Exclusives
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart Survey
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Logiciels Fournis
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Système d'Exploitation
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Dimensions
    1. Micro ATX Form Factor; 24.4cm x 20.5cm
  • Remarque
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Processeur
      1. AMD Socket AM4, support for: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD B450
    • Mémoire
      1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
      2. Dual channel memory architecture
      3. Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Carte Graphique Intégrée
    • Integrated Graphics Processor:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
        * Support for HDMI 2.0 version and HDCP 2.2.(Note)
      Maximum shared memory of 16 GB

      (Note) Actual support may vary by CPU.
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
      4. Support for S/PDIF Out
    • Réseau
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Port d'expansion
      1. 1 x PCI Express x16 slot, running at x16
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      2. 2 x PCI Express x1 slots
        (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
    • Interface de Stockage
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
        * Actual support may vary by CPU.
        * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
      2. 4 x SATA 6Gb/s connectors
      3. Support for RAID 0, RAID 1, and RAID 10
    • USB
    • Chipset:
      1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      CPU:
      1. 4 x USB 3.1 Gen 1 ports on the back panel
    • Connecteurs d'entrées/sorties internes
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 1 x system fan header
      5. 1 x M.2 Socket 3 connector
      6. 4 x SATA 6Gb/s connectors
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF Out header
      10. 1 x CPU cooler LED strip/RGB LED strip header
      11. 1 x USB 3.1 Gen 1 header
      12. 2 x USB 2.0/1.1 headers
      13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      14. 1 x speaker header
      15. 1 x Clear CMOS jumper
      16. 1 x chassis intrusion header
    • Connecteur du Panneau Arrière
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port
      4. 1 x HDMI port
      5. 4 x USB 3.1 Gen 1 ports
      6. 2 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks
    • Contrôleur d'Entrée/Sortie
      1. iTE® I/O Controller Chip
    • Monitorage Matériel
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Fonctionnalités Exclusives
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        AutoGreen
        Cloud Station
        EasyTune
        Fast Boot
        ON/OFF Charge
        RGB Fusion
        Smart Backup
        Smart Keyboard
        Smart Survey
        System Information Viewer
        USB Blocker
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Logiciels Fournis
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Système d'Exploitation
      1. Support for Windows 10 64-bit
      2. Support for Windows 7 64-bit
        * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Dimensions
      1. Micro ATX Form Factor; 24.4cm x 20.5cm
    • Remarque
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
