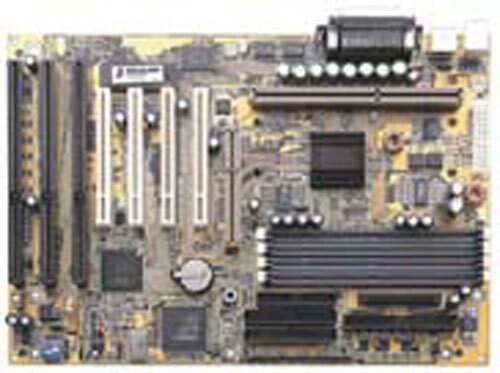

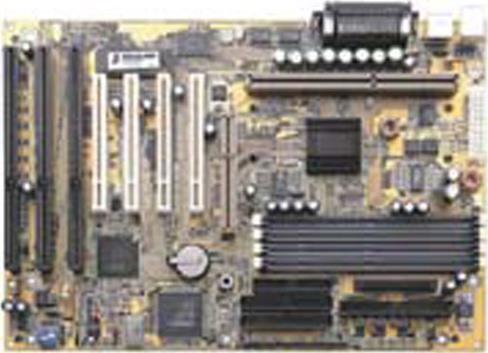

GA-6BXS

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Processeur
    1. Intel Pentium ® II / III Processor 350MHz-550MHz (for 100MHz system Bus)
    2. 233-333MHz (for 66MHz system buse setting)
    3. Slot 1 Socket for Future Expansion
  • Chipset
    1. Intel 82440 BX AGPset
    2. Winbond 83977 I/O (1Mb/S)
    3. Winbond 83781 Health Chip
    4. Adaptec 7880 Ultra Wide SCSI
  • Mémoire
    1. CPU Built-in 256KB/512KB L2 cache System Memory
    2. 4 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 1GB DRAM Size
  • Port d'expansion
    1. 4 x PCI 32-bit slots, PCI 2.2 compliant
    2. 3 x ISA 16-bit slots
    3. 1 x AGP (1x & 2x Mode,66/133MHz) slot
    4. Support Cretive PCI Sound Card SB-Link™
  • Contrôleur d'Entrée/Sortie
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. 2x USB
  • Monitorage Matériel
    1. Temperature Sensor Under Processor Heatsink
    2. Speaker Alarm When CPU Overheats or CPU Fan Failure
    3. Auto Speed Down When CPU Overheats
    4. System Health Status Detect & Report by BIOS, LDCMR & SIV
    5. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4) and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
    4. Auto-detect & Report System Health Status
  • Dimensions
    1. ATX Form Factor, 4 layer PCB
    2. ATX Connector on Board
    3. Double Deck ATX Back Panel
  • Pilote
    1. Intel LDCM ® Utility
    2. SIV
    3. Triones Ultra DMA/33 Bus Master IDE Driver
    4. Intel Ultra DMA/33 Bus Master IDE Driver
  • Puissance
    1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
    2. Power Off by Windows ® 95 Shut down & Soft-Power Switch
    3. AC Recovery On/Off Control
    4. Supports Fan Stop During Suspend Mode
    5. Supports 3 Level ACPI LED
  • Processeur
    1. Intel Pentium ® II / III Processor 350MHz-550MHz (for 100MHz system Bus)
    2. 233-333MHz (for 66MHz system buse setting)
    3. Slot 1 Socket for Future Expansion
  • Chipset
    1. Intel 82440 BX AGPset
    2. Winbond 83977 I/O (1Mb/S)
    3. Winbond 83781 Health Chip
    4. Adaptec 7880 Ultra Wide SCSI
  • Mémoire
    1. CPU Built-in 256KB/512KB L2 cache System Memory
    2. 4 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 1GB DRAM Size
  • Port d'expansion
    1. 4 x PCI 32-bit slots, PCI 2.2 compliant
    2. 3 x ISA 16-bit slots
    3. 1 x AGP (1x & 2x Mode,66/133MHz) slot
    4. Support Cretive PCI Sound Card SB-Link™
  • Contrôleur d'Entrée/Sortie
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. 2x USB
  • Monitorage Matériel
    1. Temperature Sensor Under Processor Heatsink
    2. Speaker Alarm When CPU Overheats or CPU Fan Failure
    3. Auto Speed Down When CPU Overheats
    4. System Health Status Detect & Report by BIOS, LDCMR & SIV
    5. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4) and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
    4. Auto-detect & Report System Health Status
  • Dimensions
    1. ATX Form Factor, 4 layer PCB
    2. ATX Connector on Board
    3. Double Deck ATX Back Panel
  • Pilote
    1. Intel LDCM ® Utility
    2. SIV
    3. Triones Ultra DMA/33 Bus Master IDE Driver
    4. Intel Ultra DMA/33 Bus Master IDE Driver
  • Puissance
    1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
    2. Power Off by Windows ® 95 Shut down & Soft-Power Switch
    3. AC Recovery On/Off Control
    4. Supports Fan Stop During Suspend Mode
    5. Supports 3 Level ACPI LED

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
