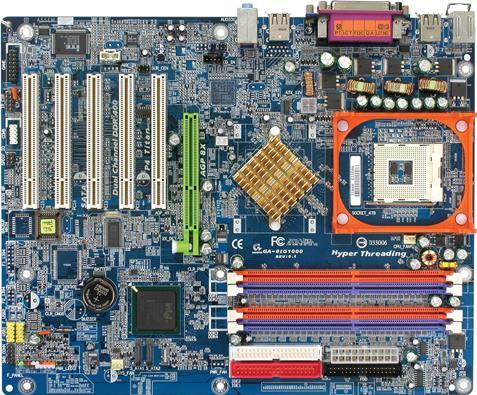

  4. GA-8IG1000

GA-8IG1000 (Rev. 3.x)

Rev. 3.xRev. 1.xRev. 2.x
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Processeur
    1. Socket 478 for Intel® Pentium® 4 processor.
  • FSB
    1. 800 / 533 / 400 MHz FSB
  • Chipset
    1. North Bridge : Intel® 865G GMCH
    2. South Bridge : Intel® ICH5
    3. Integrated Peripherals :
      1. Realtek ALC850 CODEC
  • Mémoire
    1. Type: Dual Channel DDR 400 / 333 / 266 support
    2. Max capacity: 4 GB (Please read FAQ for further information)
    3. DIMM slots: 4
  • Port d'expansion
    1. 1 x AGP 8x slot
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Connecteurs d'entrées/sorties internes
    1. 2 x Serial ATA ports
    2. 2 x USB 2.0 (supports 4 ports by cable)
    3. 2 x UltraDMA 100/66 Bus Master IDE
    4. 1 x FDD
    5. CD in
    6. 1 x COM port
    7. 1 x Game port pin header
  • Connecteur du Panneau Arrière
    1. 4 x USB 2.0 ports
    2. 1 x LPT port
    3. 1 x VGA port
    4. 1 x COM port
    5. 3 x Audio ports(Line-in / Line-out / MIC)
    6. 2 x PS/2 ports (Keyboard/Mouse)
  • Monitorage Matériel
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 1 x 3M bit flash ROM, Award BIOS
  • Logiciels Fournis
    1. Norton Internet Security 2003
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Dimensions
    1. ATX
    2. 30.5cm x 24.4cm
  • Pilote
    1. Intel® chipset software installation utility
    2. Intel® Graphics driver
    3. Realtek audio driver
    4. USB2.0 driver
  • Autres Caractéristiques
    1. Xpress Install
    2. Xpress Recovery
    3. Xpress BIOS Rescue
    4. EasyTune™ 4
    5. @BIOS
    6. Q-Flash™
  • Remarque
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Processeur
      1. Socket 478 for Intel® Pentium® 4 processor.
    • FSB
      1. 800 / 533 / 400 MHz FSB
    • Chipset
      1. North Bridge : Intel® 865G GMCH
      2. South Bridge : Intel® ICH5
      3. Integrated Peripherals :
        1. Realtek ALC850 CODEC
    • Mémoire
      1. Type: Dual Channel DDR 400 / 333 / 266 support
      2. Max capacity: 4 GB (Please read FAQ for further information)
      3. DIMM slots: 4
    • Port d'expansion
      1. 1 x AGP 8x slot
      2. 5 x PCI slots (PCI 2.3 compliant)
    • Connecteurs d'entrées/sorties internes
      1. 2 x Serial ATA ports
      2. 2 x USB 2.0 (supports 4 ports by cable)
      3. 2 x UltraDMA 100/66 Bus Master IDE
      4. 1 x FDD
      5. CD in
      6. 1 x COM port
      7. 1 x Game port pin header
    • Connecteur du Panneau Arrière
      1. 4 x USB 2.0 ports
      2. 1 x LPT port
      3. 1 x VGA port
      4. 1 x COM port
      5. 3 x Audio ports(Line-in / Line-out / MIC)
      6. 2 x PS/2 ports (Keyboard/Mouse)
    • Monitorage Matériel
      1. ITE 8712F
      2. System health status auto-detect and report by BIOS
      3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
    • BIOS
      1. 1 x 3M bit flash ROM, Award BIOS
    • Logiciels Fournis
      1. Norton Internet Security 2003
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Dimensions
      1. ATX
      2. 30.5cm x 24.4cm
    • Pilote
      1. Intel® chipset software installation utility
      2. Intel® Graphics driver
      3. Realtek audio driver
      4. USB2.0 driver
    • Autres Caractéristiques
      1. Xpress Install
      2. Xpress Recovery
      3. Xpress BIOS Rescue
      4. EasyTune™ 4
      5. @BIOS
      6. Q-Flash™
    • Remarque
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
