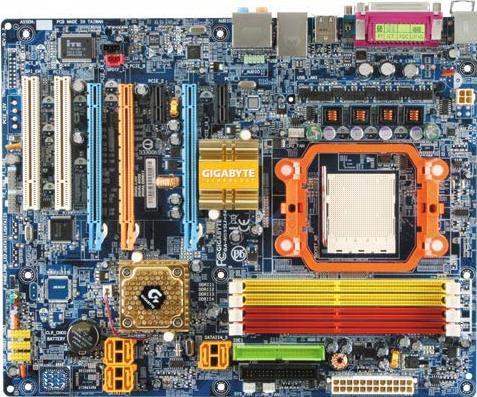

GA-M59SLI-S4 (Rev. 1.0)

NVIDIA® nForce 590 SLI chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Processeur
    1. Socket AM2 for AMD Athlon™ 64 FX / Athlon™ 64 X2 Dual-Core / Athlon™ 64 / Sempron™ processor
  • Chipset
    1. NVIDIA® nForce 590-SLI
    2. Super I/O: ITE IT8716 chip.
    3. Integrated Peripherals
      1. T.I. IEEE1394 controller
      2. Marvell 88E1116 Gigabit Ethernet controller
      3. Realtek ALC883 Audio Codec
  • Mémoire
    1. 4 DDR2 DIMM memory slots (supports up to 16GB memory)(Note 1)
    2. Supports dual channel DDR2 800/667/533/400 DIMMs
    3. Supports 1.8V DDR2 DIMMs
    4. Support ECC Memory
    (Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation.
  • Port d'expansion
    1. 2 PCI Express x 16 slot
    2. 1 PCI Express x 8 slot
    3. 2 PCI Express x 1 slot
    4. 2 PCI slots
  • Connecteurs d'entrées/sorties internes
    1. 1 24-pin ATX power connector
    2. 1 4-pin ATX 12V power connector
    3. 1 4-pin PCIE 12V power connector
    4. 1 floppy connector
    5. 1 IDE connectors
    6. 6 SATA 3Gb/s connectors
    7. 1 CPU fan connector
    8. 1 system fan connector
    9. 1 power fan connector
    10. 1 SB fan connector
    11. 1 front panel connector
    12. 1 front audio connector
    13. 1 CD In connector
    14. 1 power LED connector
    15. 1 SPDIF In connector
    16. 3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cables
    17. 2 IEEE1394a connectors for additional 2 port by cable
    18. 1 Chassis Intrusion connector
  • Connecteur du Panneau Arrière
  • 1 PS/2 keyboard port
  • 1 PS/2 mouse port
  • 1 parallel port
  • 1 SPDIF out port (optical)
  • 1 COMA port
  • 4 USB 2.0/1.1 ports
  • 1 IEEE1394a port
  • 1 RJ-45 port
  • 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out) / Center / Subwoofer Speaker Out / Side Speaker Out)
  • Monitorage Matériel
    1. System voltage detection
    2. CPU /System temperature detection
    3. CPU / Power / System fan speed detection
    4. CPU fan failure warning
    5. Supports CPU Smart Fan function(Note 2)
    (Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
  • BIOS
    1. 4Mbit flash ROM
    2. Use of licensed AWARD BIOS
    3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
  • Fonctionnalités Exclusives
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune (Note 3)
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Xpress BIOS Rescue
    (Note 3) EasyTune functions may vary depending on different motherboards.
  • Dimensions
    1. ATX form factor; 30.5cm x 24.4 cm
  • Remarque
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Processeur
      1. Socket AM2 for AMD Athlon™ 64 FX / Athlon™ 64 X2 Dual-Core / Athlon™ 64 / Sempron™ processor
    • Chipset
      1. NVIDIA® nForce 590-SLI
      2. Super I/O: ITE IT8716 chip.
      3. Integrated Peripherals
        1. T.I. IEEE1394 controller
        2. Marvell 88E1116 Gigabit Ethernet controller
        3. Realtek ALC883 Audio Codec
    • Mémoire
      1. 4 DDR2 DIMM memory slots (supports up to 16GB memory)(Note 1)
      2. Supports dual channel DDR2 800/667/533/400 DIMMs
      3. Supports 1.8V DDR2 DIMMs
      4. Support ECC Memory
      (Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation.
    • Port d'expansion
      1. 2 PCI Express x 16 slot
      2. 1 PCI Express x 8 slot
      3. 2 PCI Express x 1 slot
      4. 2 PCI slots
    • Connecteurs d'entrées/sorties internes
      1. 1 24-pin ATX power connector
      2. 1 4-pin ATX 12V power connector
      3. 1 4-pin PCIE 12V power connector
      4. 1 floppy connector
      5. 1 IDE connectors
      6. 6 SATA 3Gb/s connectors
      7. 1 CPU fan connector
      8. 1 system fan connector
      9. 1 power fan connector
      10. 1 SB fan connector
      11. 1 front panel connector
      12. 1 front audio connector
      13. 1 CD In connector
      14. 1 power LED connector
      15. 1 SPDIF In connector
      16. 3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cables
      17. 2 IEEE1394a connectors for additional 2 port by cable
      18. 1 Chassis Intrusion connector
    • Connecteur du Panneau Arrière
    • 1 PS/2 keyboard port
    • 1 PS/2 mouse port
    • 1 parallel port
    • 1 SPDIF out port (optical)
    • 1 COMA port
    • 4 USB 2.0/1.1 ports
    • 1 IEEE1394a port
    • 1 RJ-45 port
    • 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out) / Center / Subwoofer Speaker Out / Side Speaker Out)
    • Monitorage Matériel
      1. System voltage detection
      2. CPU /System temperature detection
      3. CPU / Power / System fan speed detection
      4. CPU fan failure warning
      5. Supports CPU Smart Fan function(Note 2)
      (Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
    • BIOS
      1. 4Mbit flash ROM
      2. Use of licensed AWARD BIOS
      3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
    • Fonctionnalités Exclusives
      1. Supports @BIOS
      2. Supports Download Center
      3. Supports Q-Flash
      4. Supports EasyTune (Note 3)
      5. Supports Xpress Install
      6. Supports Xpress Recovery2
      7. Supports Xpress BIOS Rescue
      (Note 3) EasyTune functions may vary depending on different motherboards.
    • Dimensions
      1. ATX form factor; 30.5cm x 24.4 cm
    • Remarque
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
