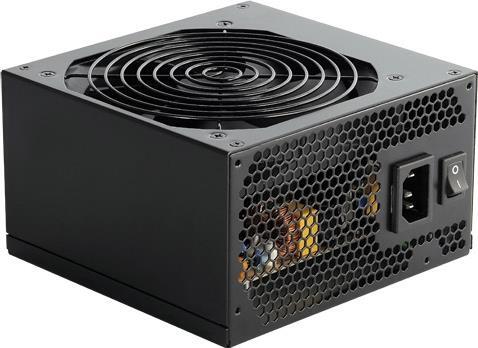

Superb E620

Key FeaturesSpecifications

Specifications

  • Model
  • GE-E620A-C3
  • Dimension
  • 86 x 140 x 150mm
  • Connectors
  • (20+4)-pin Motherboard Connector 1
    (4+4) +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connector 2
    SATA Connectors 4
    4-pin Peripheral Connectors 4
    4-pin Floppy Connector 1
  • Weight
  • 2 kg
  • Info
  • AC INPUT 100-240Vac 7.5-4A
    FREQUENCY 50-60Hz
    PFC TYPE Active PFC
    DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5Vsb
    OUTPUT CURRENT 24A 24A 18A 18A 0.5A 2.5A
    123W 36A
    Max Combined Wattage 500W（Peak 620W）
  • Certifications
  • 80Plus, SLI
  • Safety Approval
  • cUL, CSA, TUV, CB, CE, FCC, BSMI, CCC, C-Tick
  • Model
  • GE-E620A-C3
  • Dimension
  • 86 x 140 x 150mm
  • Connectors
  • (20+4)-pin Motherboard Connector 1
    (4+4) +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connector 2
    SATA Connectors 4
    4-pin Peripheral Connectors 4
    4-pin Floppy Connector 1
  • Weight
  • 2 kg
  • Info
  • AC INPUT 100-240Vac 7.5-4A
    FREQUENCY 50-60Hz
    PFC TYPE Active PFC
    DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5Vsb
    OUTPUT CURRENT 24A 24A 18A 18A 0.5A 2.5A
    123W 36A
    Max Combined Wattage 500W（Peak 620W）
  • Certifications
  • 80Plus, SLI
  • Safety Approval
  • cUL, CSA, TUV, CB, CE, FCC, BSMI, CCC, C-Tick
