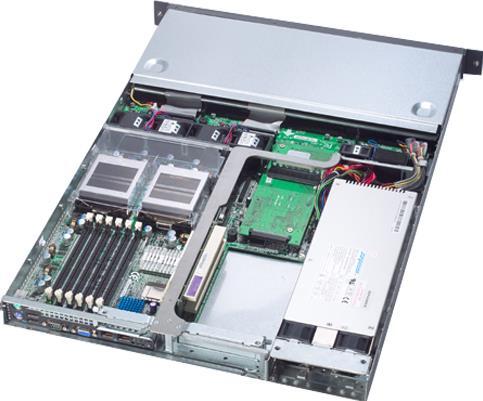

    GS-SR125E

    Legacy | Software updates supported

    Rev. 1.0
    • Dimensions: 19"W x 1.73"H x 25.6"D (1U)
    • Four Hot-Swap Ultra 320 SCA/80-Pin 3.5" SCSI Drives
    • Four Redundant/Programmable FAN with Max. 8000RPM
    • Innovative Modularized Design to Provide Storage I/O Flexibility and Increase I/O Expansion
    • Intel® E7501, ICH3-S, P64H2*2, ATI® Rage XL 8MB
    • Dual Intel® Xeon™ Processors with 512K L2 Cache (Socket 604/533MHz FSB/3.2GHz+)
    • Max. 12 GB Registered (ECC) Dual channels DDR-266
    • Storage I/O Bridge Card - Adaptec® 7902W Dual U320 SCSI Channels
    • Build in Intel® 82546EB single chip with Dual ports Gigabit Ethernet controller
    • 1 PCI-X/100MHz Full-Height Slot, 1 PCI-X/100MHz Full-Height/Half-Length Slot
    • 1 PCI-X/66MHz Low-Profile Slot (Enabled ZCR)

    SPECIFICATIONS

    CPU
    • Dual Intel®Xeon™Processors with 512K L2 cache
    • Supports 3.2GHz
    • Spports 533FSB/Socket604
    Chipset
    • Intel®E7501/ICH3-S
    LAN
    • Build in Intel® 82546EB single chip with Dual ports Gigabit Ethernet controller (Server Adapter)
    • Adapter Fault Tolerance (AFT)
    • Adaptive Load Balancing (ALB)
    • EtherChannel* (GEC)
    Video
    • Built-In ATI® Rage XL video chip with 8MB memory
    RAID
    • Adatpec ZCR Enabled Low-Profile PCI Slot
    Expansion Slots
    • 1 PCI-X/100MHz Full-Height Slot, 1 PCI-X/100MHz Full-Height / Half-Length Slot
    • 1 PCI-X/66MHz Low-Profile Slot (Enabled ZCR)
    Power Supply[#1]
    • 460W
    • 100V~240V (Plus or minus 10 percent)
    • 50~60Hz(Plus or minus 6 percent)
    [#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
    [#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
    [#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
    [#4] All trademarks and logos are the property of their respective owners.

    SUPPORT

    • Downloads
      • Treiber
      • BIOS
      • Utility
    • Handbuch
    • Kompatibilitätsliste
      • QVL
    Online Support
    Treiber
    BIOS
    Utility
    QVL
    • All
    • All
    • Windows XP 32bit
    • Windows Server 2003 32bit
    • Windows NT
    • Windows Me
    • Windows 98
    • Windows 95
    • Windows 2000
    • Novell Netware
    • Default
    Chipset Update Patch
    Chipset Update Patch
    Version
    Größe
    Datum
    Driver for Interl®82852/82855 GM/GME Chipset
    Version : 4.30.1006
    1.55 MB
    Aug 11, 2003
    Download
    Betriebssystem: Windows 95,Windows 98,Windows Me,Windows 2000,Windows XP 32bit
    Host RAID
    Host RAID
    Version
    Größe
    Datum
    1. Release Date: 11/23/20042
    2. For both of Adaptec A4 & B0 chip ( Please refer to FAQ description )
    Version : 1.02.063
    0.33 MB
    Nov 24, 2004
    Download
    Betriebssystem: Windows NT,Windows 2000,Windows XP 32bit,Windows Server 2003 32bit
    SAF-TE
    SAF-TE
    Version
    Größe
    Datum
    SAF-TE Drivers & Utilities
    Version : 0.04A
    2.21 MB
    Aug 11, 2003
    Download
    Betriebssystem: Default
    SCSI
    SCSI
    Version
    Größe
    Datum
    Adaptec 7902W U320 SCSI Driver
    Version : 1.30.1
    21 MB
    Aug 11, 2003
    Download
    Betriebssystem: Windows NT,Windows 2000,Windows XP 32bit,Windows Server 2003 32bit,Novell Netware
    1. Release Date: 11/23/2004
    2. For both of Adaptec A4 & B0 chip ( Please refer to FAQ description )
    3. Support Windows Server 2003 IA32
    Version : 3.00S4
    0.48 MB
    Nov 24, 2004
    Download
    Betriebssystem: Windows NT,Windows 2000,Windows XP 32bit,Windows Server 2003 32bit
    VGA
    VGA
    Version
    Größe
    Datum
    VGA drivers
    Version : J5.30.0
    40.25 MB
    Aug 11, 2003
    Download
    Betriebssystem: Windows NT,Windows 2000,Windows XP 32bit
    BIOS
    Beschreibung
    Version
    Größe
    Datum
    Warning: This BIOS version uses for brideboard Adaptec A4 chip
    1. Fix system with A4 SCSI chip uses old backplane which does not have CPU0_FAN4 inverted PWN issue.
    2. Fix the issue of unable to shutdown OS when using Intel RAID card
    Version : F9A3
    0.59 MB
    Nov 24, 2004
    Download
    Warning: This BIOS version uses for brideboard Adaptec B0 chip
    1. Support B0 stepping of adatpec 7902W chip
    2. Fix system with B0 SCSI chip use old backplane with does not have CPU0-FAN4 inverted PWN issue.
    3. Fix the issue of unable to sutdown OS when using Intel RAID card.
    Version : F9B3
    0.59 MB
    Nov 24, 2004
    Download
    1. Fix Data reads error from floppy somtimes
    2. Fix The system hangs up, if no IPMI
    3. Fix Display wrong CPU temperature on setup menu
    4. Remove Console Redirection from Server in setup menu
    5. Fix Initializing IPMI module fail sometimes
    6. Include IPMI function support
    7. Fix BIOS does not detect 533 CPU temp on setup menu sometimes
    8. Fix IPMI SEL utility sometimes can not detect temperature of 533 CPU
    9. Display BMC version on setup menu
    10. Fix the Speed display of System Fan is wrong on setup menu
    Version : F7
    0.59 MB
    Apr 09, 2004
    Download
    1. Released version
    2. Modified code to adjust CPU temperature too high issue
    Version : F5
    0.58 MB
    Aug 11, 2003
    Download
    Warnung:
    Das das Flashen des BIOS ein potentielles Risiko für den PC darstellt, empfehlen wir, das BIOS nicht zu flashen wenn der PC problemlos arbeitet. Seien Sie beim Flashen bitte vorsichtig. Ein unpassendes BIOS kann zu Systemfehlern führen.

    Was ist eine BETA-Version?
    BETA steht für eine neue Version, die noch in der Entwicklungsphase ist und nicht alle Funktionen der finalen Version beinhaltet. Während der Entwicklungsphase stellen wir den Usern und Kunden Vorschau-Versionen zur Verfügung, die neueste Funktionen enthalten, um die Produkte noch weiter zu verbessern..
    • All
    • All
    • Default
    Utility
    Beschreibung
    Version
    Größe
    Datum
    Utilities of Adaptec Storage Manager
    Version : 1.0
    2.49 MB
    Aug 11, 2003
    Download
    Betriebssystem: Default
    Handbuch
    Beschreibung
    Version
    Größe
    Datum
    1. Adaptec 7902W SCSI RAID User's Guide
    Version : 1.0
    8.13 MB
    Mar 03, 2005
    Download
    English
    1. GS-SR125E System Installation Guide
    Version : 1.0
    0.85 MB
    Oct 21, 2004
    Download
    English
    IPMI manual
    Version : 1.0
    4.61 MB
    Jun 16, 2004
    Download
    English
    Beschreibung
    Version
    Größe
    Datum
    QVL-Kompatibilitätsliste
    Version : 1.1
    0.03 MB
    Apr 14, 2005
    Download
    1. QVL for GS-SR125E
