QBiX-Exp-TGLA1135G7H-A1

Intel® Core™ i5-1135G7 Processor
Industrial system with Intel® Core™ i5-1135G7 Processor / Fanless Design / Dual Channel DDR4 up to 64 GB/ 2 x HDMI
  • System size : 210.36W x 165D x 67H (mm)
  • Intel® Core™ i5-1135G7 Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x HDMI for Dual display
  • 4 x GbE LAN Ports with PoE 15W/Port
  • 2 x GbE LAN Ports

  • (For more product information, please contact us at sales@gigaipc.com)
    Save
    This model has been saved to favorite!
    Quote

    Specifications

    CPU
    Intel® Core™ i5-1135G7 Processor
    10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz
    Chipset
    SoC
    Memory
    2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
    Support Dual Channel DDR4 3200 MHz memory modules
    LAN
    2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
    4 x PoE GbE LAN Ports (Intel® I211AT)
    Video
    Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
    2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

    (2 independent display outputs)
    Audio
    Realtek® Audio Codec
    Expansion Slots
    1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
    1 x 2230 M.2 E-Key
    1 x Full-size MiniPCIe with SIM Slot

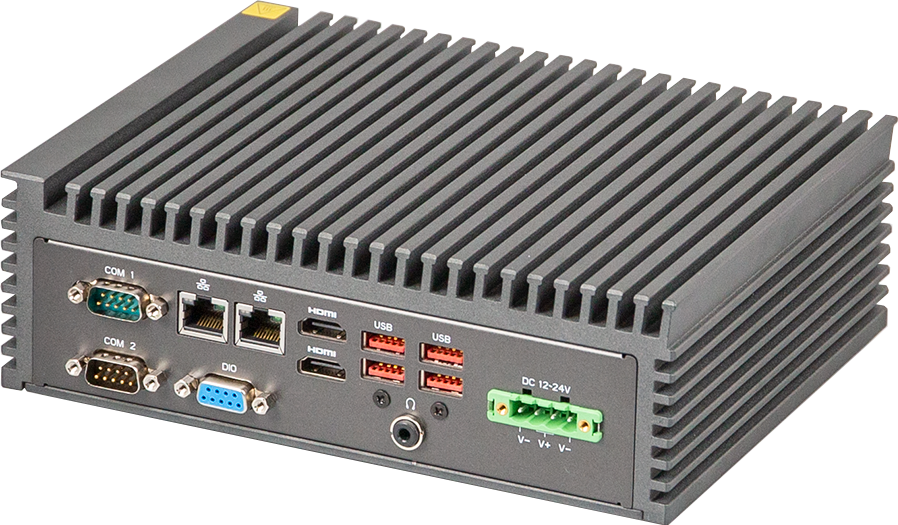

    Rear I/O
    2 x HDMI
    2 x RJ45 LAN Ports
    4 x USB 3.2 Gen 2x1
    1 x COM Port (RS-232/422/485 & RI/5V/12V)
    1 x COM Port (RS-232/422/485)
    1 x GPIO (8 bits)
    1 x Headphone Jack
    1 x 4-pin Terminal Block
    Packaging Content
    Carton size: 572 x 321 x 372 (mm)
    Packing Capacity: 4pcs

    Including:
    Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)
    Screw For 2.5" HDD M3x4L x 8 (P/N: 25984G-1C014-S00)
    Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
    Ordering Information
    6BQE1135AMR-SI (Box packing)
    Storage
    1 x Swappable 2.5" HDD/SSD (SATA 6Gb/s)
    Front I/O
    4 x RJ45 LAN Ports with PoE
    2 x USB 2.0
    1 x Power button with LED
    1 x HDD LED
    2 x COM Ports (RS-232/422/485)
    2 x External Antenna Holes (Optional)
    Dimension
    210.36W x 165D x 67H (mm)
