CLNCD42

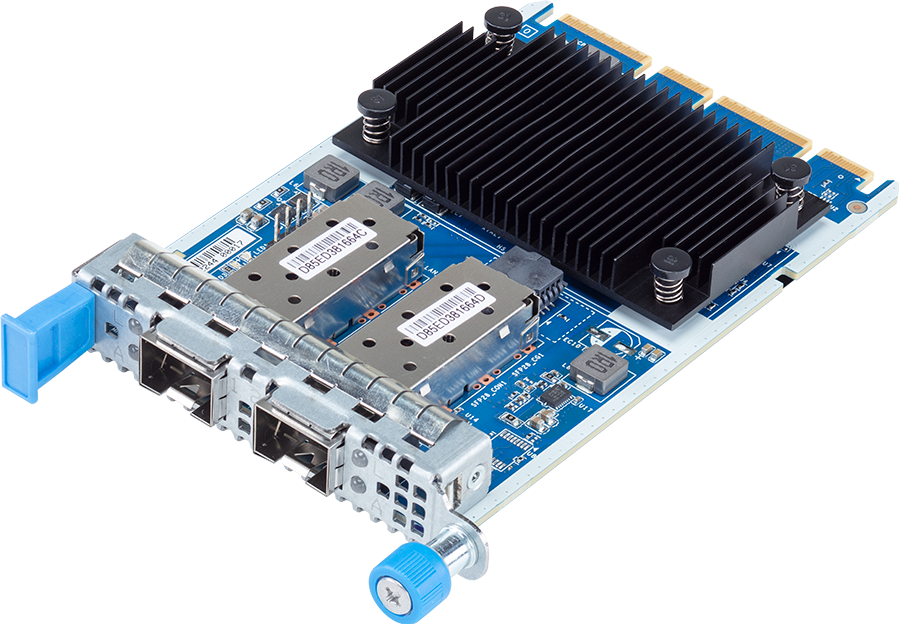

OCP LAN Card - Broadcom® BCM57414 - 25Gb/s 2-port
- 2 x 25Gb/s SFP28 LAN ports
- Supports 25Gb/s, 10Gb/s per port
- Broadcom® BCM57414
- PCIe x16 (Gen3 x8 bus)
- OCP 3.0 form factor
Specifications
Ports
2 x 25Gb/s SFP28 LAN ports
Supports 25Gb/s, 10Gb/s per port
Supports 25Gb/s, 10Gb/s per port
Controller
Broadcom® BCM57414
Interface
PCIe x16 (Gen3 x8 bus)
Dimension
76 x 115 x 14.2 mm
Format
OCP 3.0 form factor
Pull tab type
Pull tab type
Includes
N/A
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
Ordering Information
9CLNCD42MR-00-1*
- Individual packaging, 6PCS per carton
- Packaging dimensions: 305 x 251 x 220 mm
9CLNCD42NR-00-1*
- Bulk packaging, 10PCS per carton
- Packaging dimensions: 306 x 252 x 185 mm
Optional cables:
- 25CF1-3K0001-P0R/ QSFP28 to QSFP28 3000mm 100Gb/s
- 25CF1-3K0002-P0R/ SFP28 to SFP28 3000mm 25 Gb/s
- Individual packaging, 6PCS per carton
- Packaging dimensions: 305 x 251 x 220 mm
9CLNCD42NR-00-1*
- Bulk packaging, 10PCS per carton
- Packaging dimensions: 306 x 252 x 185 mm
Optional cables:
- 25CF1-3K0001-P0R/ QSFP28 to QSFP28 3000mm 100Gb/s
- 25CF1-3K0002-P0R/ SFP28 to SFP28 3000mm 25 Gb/s
