E-ATX
304.8 x 330.2

Intel^® Xeon^® 600 processors for workstations

Single processor, TDP up to 350W

^[Note] Please select Intel^® Xeon^® 690/670/650 processors to enable all functions.

1 x LGA 4710-2
Socket E2

Intel^® W890

8 x DIMM slots ^[1]
Support DDR5 RDIMM/MRDIMM
8-channel memory per processor
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8000 MT/s <sup>[2]

[1]</sup> Only 4 x DIMMs are supported with Intel^® Xeon^® 630 processors.

^[2] MRDIMMs are supported only on select SKUs.

2 x 10Gb/s LAN (1 x Intel^® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in ASPEED^® AST2600
- 1 x VGA port

Realtek^® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
3 x Audio Jacks (Audio in/Audio out/Mic)

MCIO:
2 x MCIO 8i for 4 x Gen5 NVMe, from CPU ^[1]

SlimSAS:
1 x SlimSAS 8i for 2 x Gen4 NVMe, from PCH
2 x SlimSAS 4i for 8 x SATA, from PCH

M.2:
4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU

^[1] Require Intel^® Xeon^® 690/670/650 processors.

Intel^® SATA RAID 0/1/10/5
Onboard VROC key header

Slot_7: PCIe x16 (Gen5 x16), from CPU
Slot_6: PCIe x16 (Gen5 x16), from CPU ^[1]
Slot_5: PCIe x16 (Gen5 x16), from CPU
Slot_3: PCIe x16 (Gen5 x16), from CPU
Slot_2: PCIe x16 (Gen5 x16), from CPU ^[1]
Slot_1: PCIe x16 (Gen5 x16), from CPU

2 x MCIO 8i (Gen5 x8), from CPU

^[1] Slot_2/6 require Intel^® Xeon^® 690/670/650 processors.

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 4-pin power connector (for PCIe slots)
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB 3.2 Gen2x2 header (Type-E)
1 x USB 3.2 Gen1 x2 header
4 x M.2 slots
2 x MCIO 8i connectors
1 x SlimSAS 8i connector
2 x SlimSAS 4i connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

1 x USB 3.2 Gen2x2 port (Type-C)
3 x USB 3.2 Gen2x1 ports (Type-A)
1 x VGA port
1 x Serial port
2 x RJ45 ports
1 x MLAN port
3 x Audio jacks
1 x ID button with LED

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 4-pin power connector (for PCIe slots)

Operating temperature: 10°C to 40°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

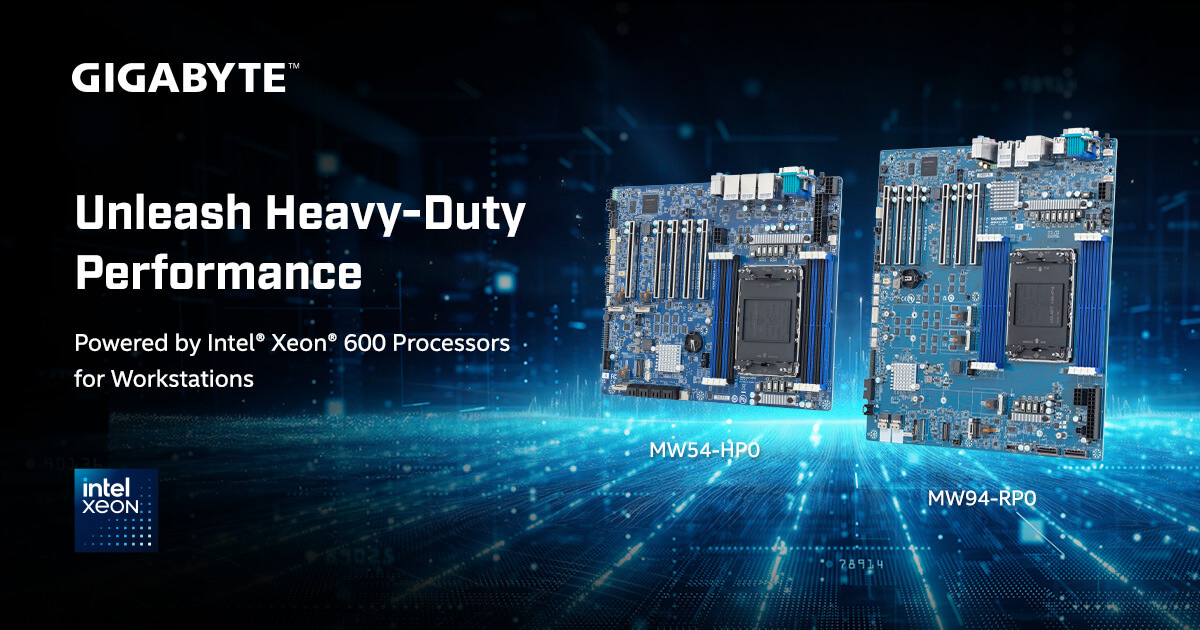

1 x MW94-RP0
1 x I/O shield
2 x Carriers
4 x M.2 heatsinks
1 x SlimSAS 4i to 4 x SATA cable (600mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

10 x MW94-RP0
10 x I/O shields

Carton dimensions: 600 x 473 x 495 mm

Retail: 9MW94RP0MR-000-1*
Bulk: 9MW94RP0NR-000-1*

Part Numbers:

- I/O shield: 12AIO-MW83RP-00R
- M.2 heatsink: 12SP2-11000E-00GR
- SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600700-A4R
