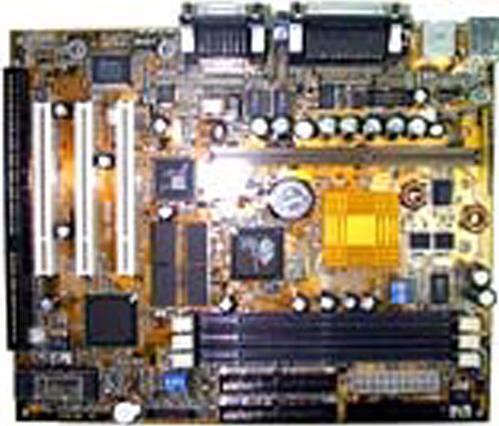

GA-6BMM

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Intel Pentium ® II / III Processor 233MHz-550MHz.
    2. Slot 1 Socket for Future Expansion
  • Chipset
    1. Intel 82440 BX AGPset
    2. Winbond 83977EF I/O (1Mb/S)
  • Memory
    1. 3 x 100MHz 168-pin 3.3v DIMM sockets support
    2. Supports 8/16/32/64/128/256 MB DIMM Module
    3. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    4. Supports 8MB to 768MB DRAM Size
    5. Supports 66/75*/83*/100/112*/133* MHz System Clock Speed Setting * These settings are not Guarantee by Giga-Byte
    6. CPU Built-in 256KB/512KB L2 cache for Pentium II Processor
    7. No L2 cache for Intel Celeron 266-300MHz Processor
  • Expansion Slots
    1. 3 x PCI 32-bit slots, PCI 2.1 compliant
    2. 1 x ISA 16-bit slots
    3. Support Cretive PCI Sound Card SB-Link
  • I/O Controller
    1. 1x floppy port (360KB-2.88MB)
    2. 1x serial ports (16550 high-speed)
    3. 1x serial ports by Cable (16550 high-speed)
    4. 1x parallel port (EPP/ECP)
    5. PS/2 Keyboard
    6. PS/2 Mouse
    7. 1x VGA(DB15), 1x Joystic, 1x Line-in, 1x Line-out, 1x MIC connector
    8. 2x USB
  • H/W Monitoring
    1. Temperature Sensor Under Processor Heatsink
    2. Speaker Alarm When CPU Overheats or CPU Fan Failure
    3. Auto Speed Down When CPU Overheats
    4. System Health Status Detect & Report by BIOS, LDCMR & SIV.
    5. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
  • Form Factor
    1. Micro ATX Form Factor, 4 layer PCB
    2. Fits in Regular ATX Case
    3. Double Deck ATX Back Panel
  • Driver
    1. Intel Ultra DMA/33 Bus Master IDE Driver
  • Power
    1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
    2. Power Off by Windows 95/98 Shut down & Soft-Power Switch
    3. AC Recovery On/Off Control by BIOS
    4. Supports Fan Stop During Suspend Mode
    5. Supports 3 Level ACPI LED
  • CPU
    1. Intel Pentium ® II / III Processor 233MHz-550MHz.
    2. Slot 1 Socket for Future Expansion
  • Chipset
    1. Intel 82440 BX AGPset
    2. Winbond 83977EF I/O (1Mb/S)
  • Memory
    1. 3 x 100MHz 168-pin 3.3v DIMM sockets support
    2. Supports 8/16/32/64/128/256 MB DIMM Module
    3. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    4. Supports 8MB to 768MB DRAM Size
    5. Supports 66/75*/83*/100/112*/133* MHz System Clock Speed Setting * These settings are not Guarantee by Giga-Byte
    6. CPU Built-in 256KB/512KB L2 cache for Pentium II Processor
    7. No L2 cache for Intel Celeron 266-300MHz Processor
  • Expansion Slots
    1. 3 x PCI 32-bit slots, PCI 2.1 compliant
    2. 1 x ISA 16-bit slots
    3. Support Cretive PCI Sound Card SB-Link
  • I/O Controller
    1. 1x floppy port (360KB-2.88MB)
    2. 1x serial ports (16550 high-speed)
    3. 1x serial ports by Cable (16550 high-speed)
    4. 1x parallel port (EPP/ECP)
    5. PS/2 Keyboard
    6. PS/2 Mouse
    7. 1x VGA(DB15), 1x Joystic, 1x Line-in, 1x Line-out, 1x MIC connector
    8. 2x USB
  • H/W Monitoring
    1. Temperature Sensor Under Processor Heatsink
    2. Speaker Alarm When CPU Overheats or CPU Fan Failure
    3. Auto Speed Down When CPU Overheats
    4. System Health Status Detect & Report by BIOS, LDCMR & SIV.
    5. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
  • Form Factor
    1. Micro ATX Form Factor, 4 layer PCB
    2. Fits in Regular ATX Case
    3. Double Deck ATX Back Panel
  • Driver
    1. Intel Ultra DMA/33 Bus Master IDE Driver
  • Power
    1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
    2. Power Off by Windows 95/98 Shut down & Soft-Power Switch
    3. AC Recovery On/Off Control by BIOS
    4. Supports Fan Stop During Suspend Mode
    5. Supports 3 Level ACPI LED

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
