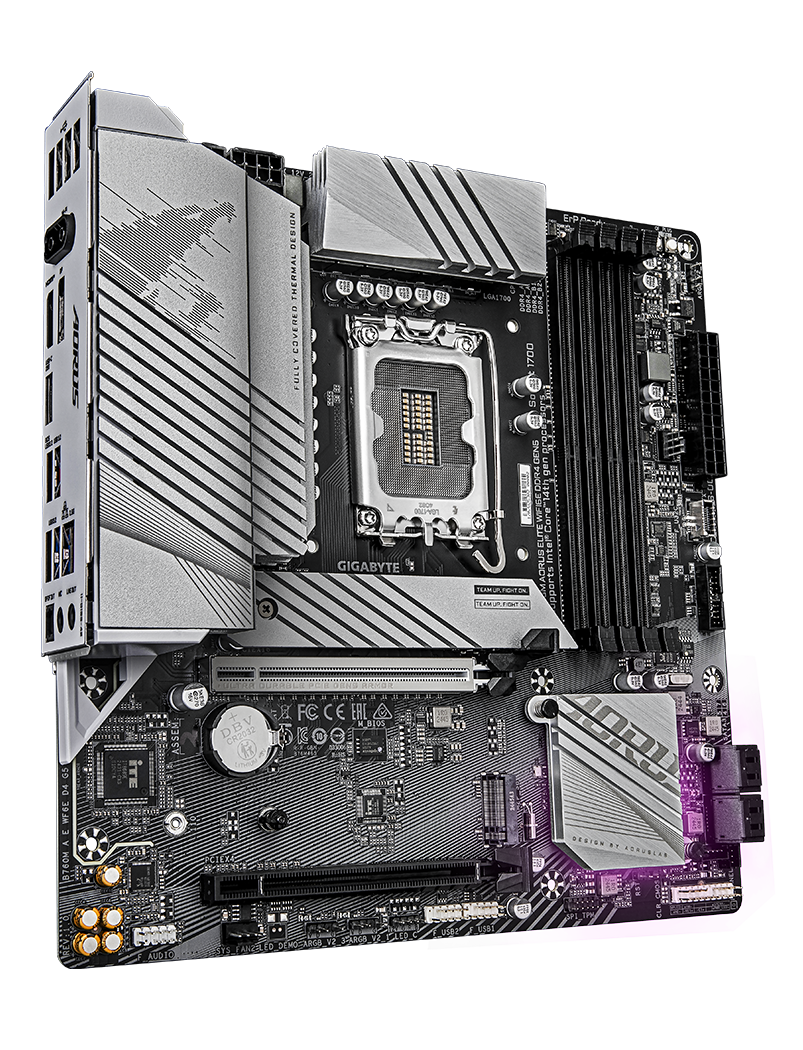

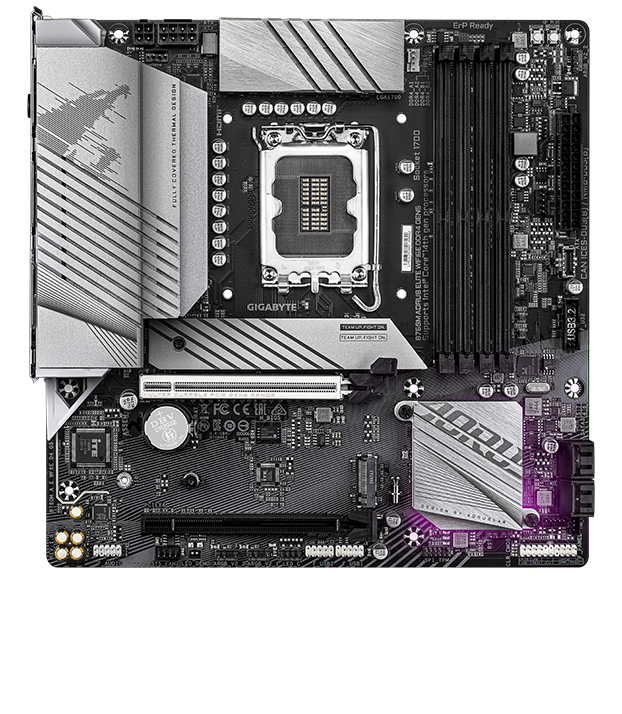

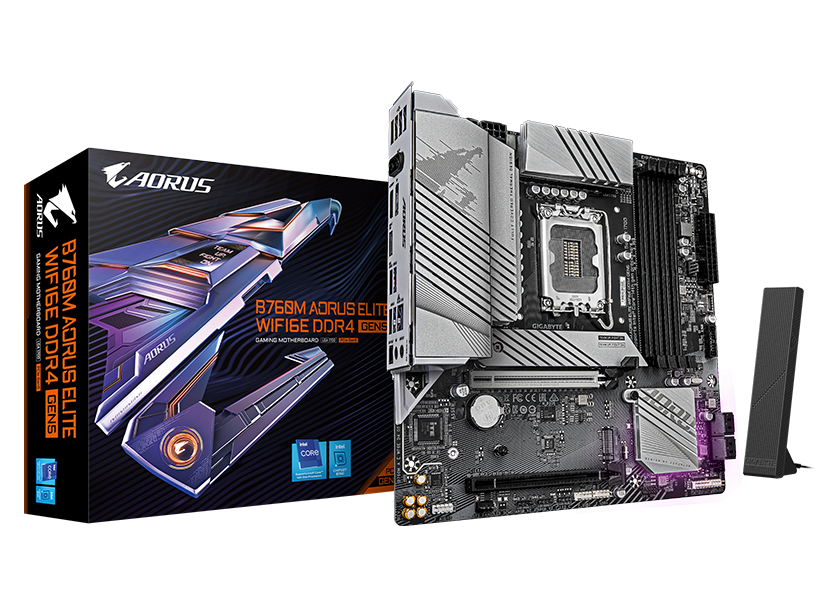

B760M AORUS ELITE WIFI6E DDR4 GEN5
-
12+1+1 Twin Hybrid Phases Digital Power
- 60A DrMOS
- PCIe 5.0 Ready PCB

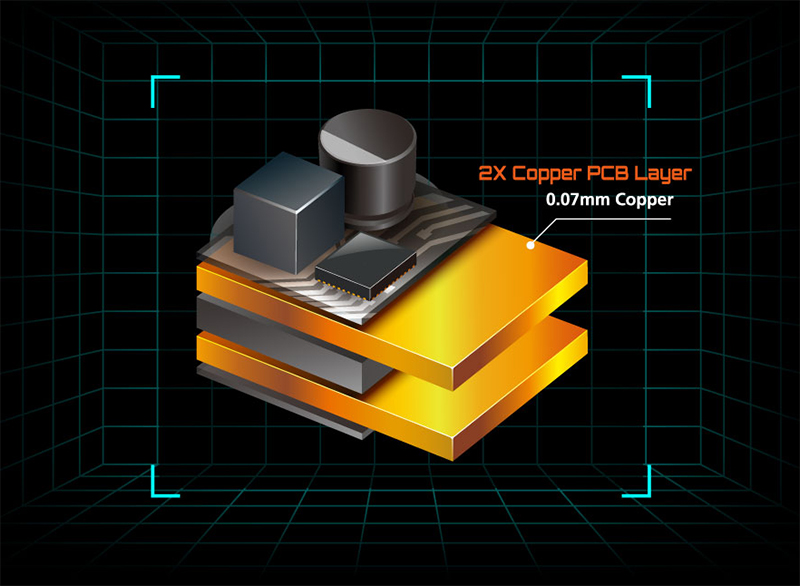

- 6-Layer & 2X Copper PCB
-
Support 14th and 13th Gen. Intel® Core™ Processors
-
UD Power Connector
- 8+4 Solid Pin CPU Power Connector
-
4 x DIMMs, Dual Channel DDR4
-
2 x M.2 Slots
- 2*PCIe 4.0 x4 M.2
-
Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot
- 1 x PCIe 4.0 x4
-
VRM Thermal Armor Advanced
-
M.2 Thermal Guard
-
4 x USB 2.0
-
1 x Display Port
-
1 x HDMI
-
USB 3.2 Gen 2x2 Type-C®
-
1 x USB 3.2 Gen 2
-
3 x USB 3.2 Gen 1
-
Wi-Fi 6E 802.11ax
-
WIFI EZ-Plug
-
2.5 GbE LAN
-
Front USB-C 10Gb/s
-
4 x SATA 6Gb/s
-
ALC1220 Hi-Fi Audio
- 8-CH HD Audio
- High-End Audio Capacitor
-
RGB FUSION
- 3 x Addressable LED Headers
- 1 x RGB LED Header
-
M.2 EZ-Latch Plus
-
PCIe EZ-Latch
-
Q-FLASH PLUS Button
-
Multi-key
-
WIFI EZ-Plug
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.

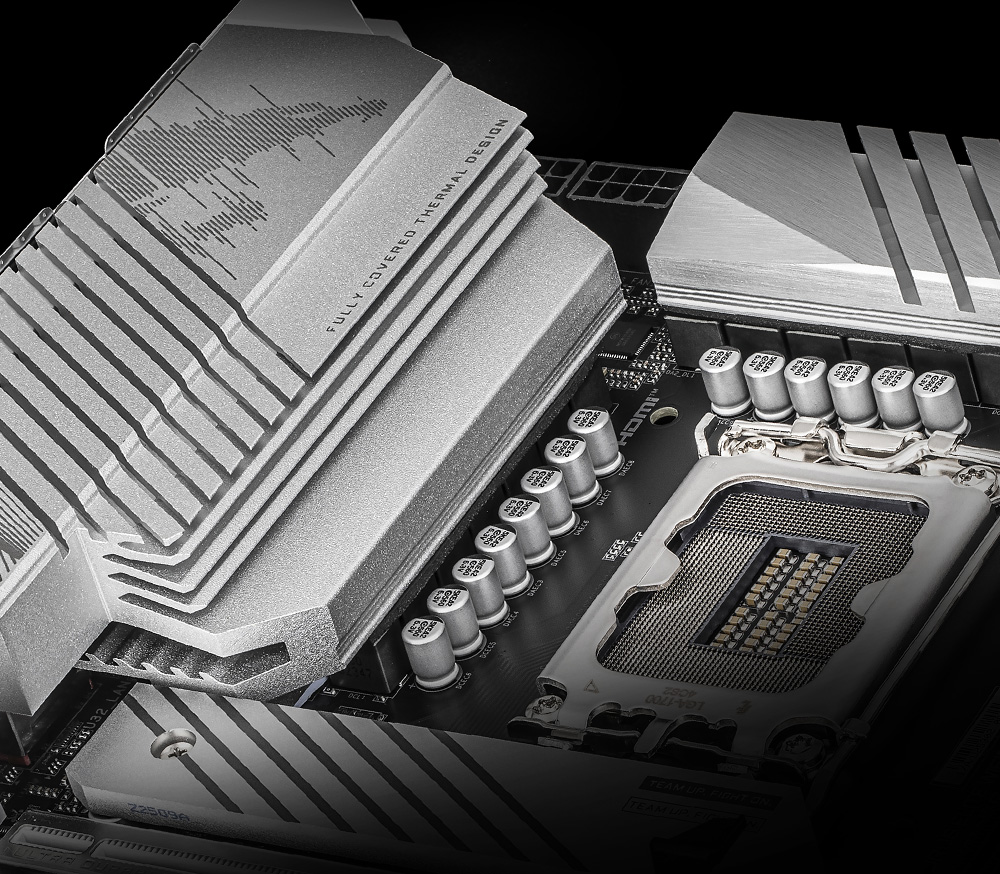

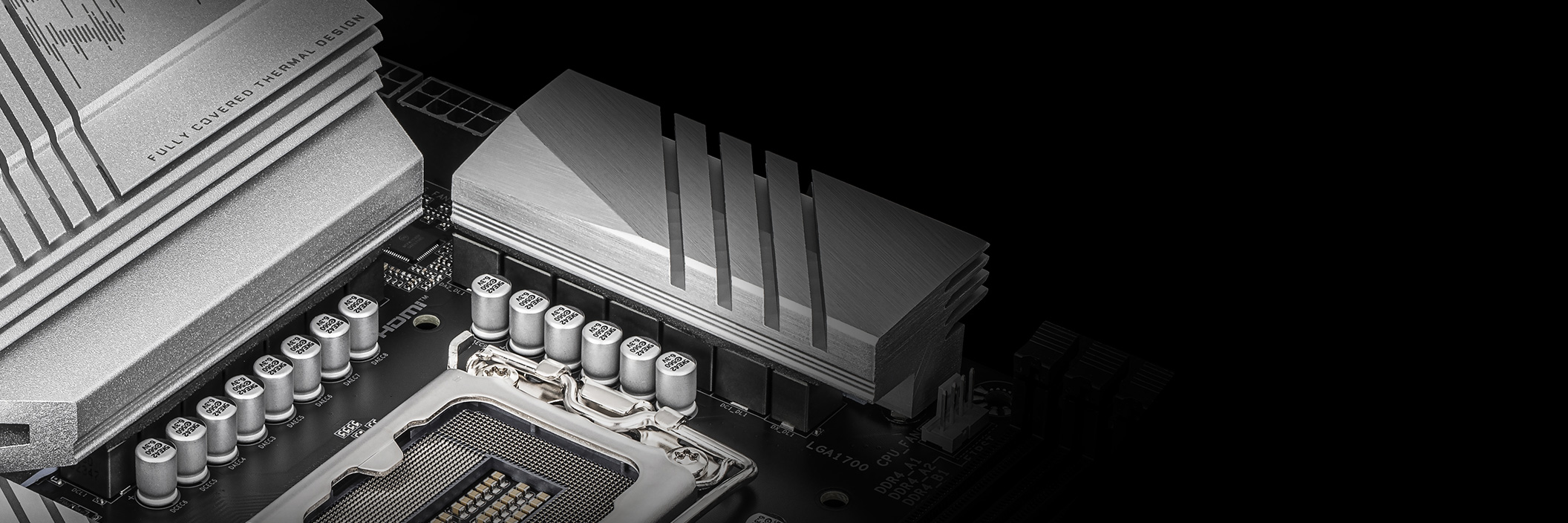

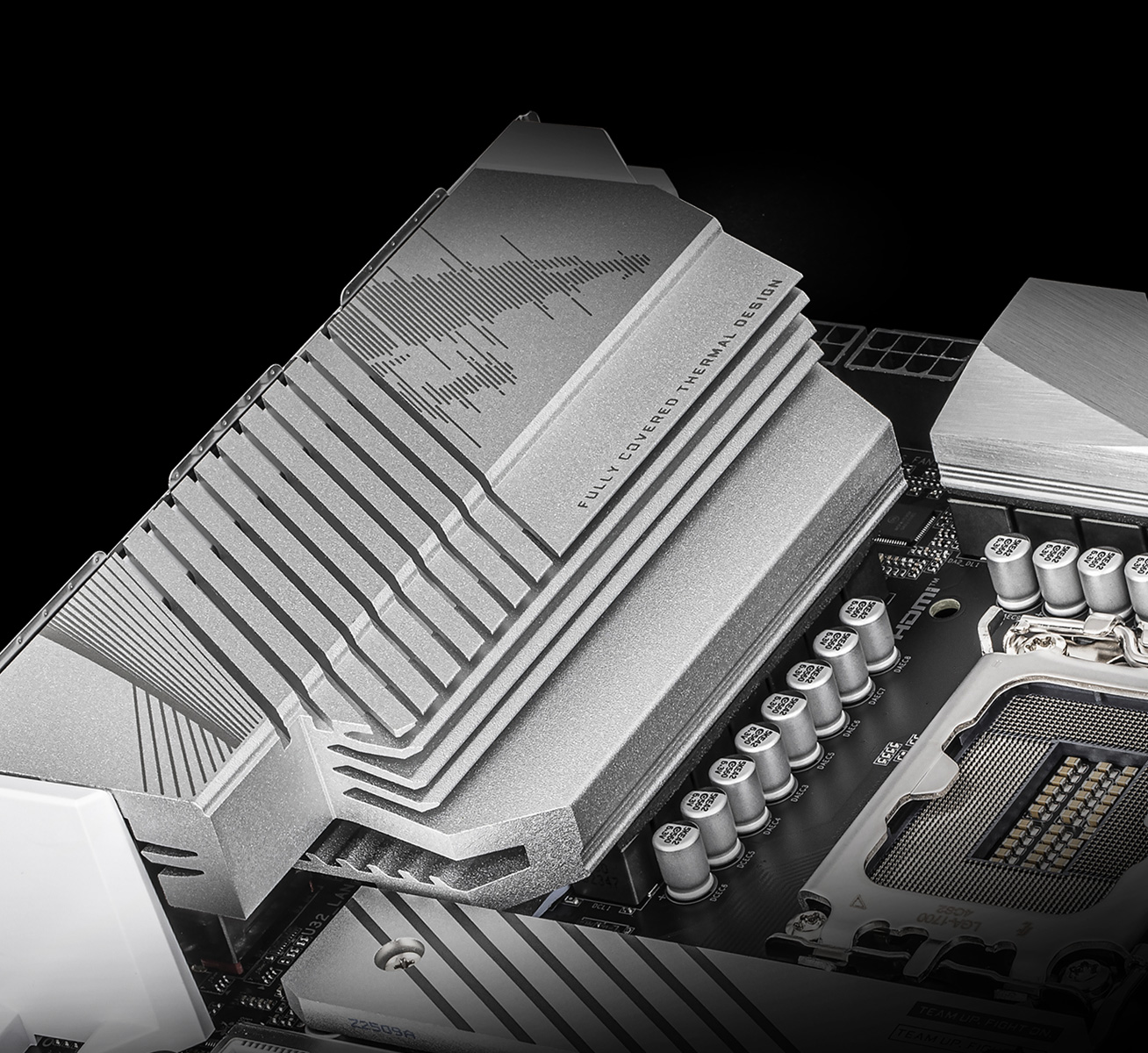

High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
Advanced heat dissipation

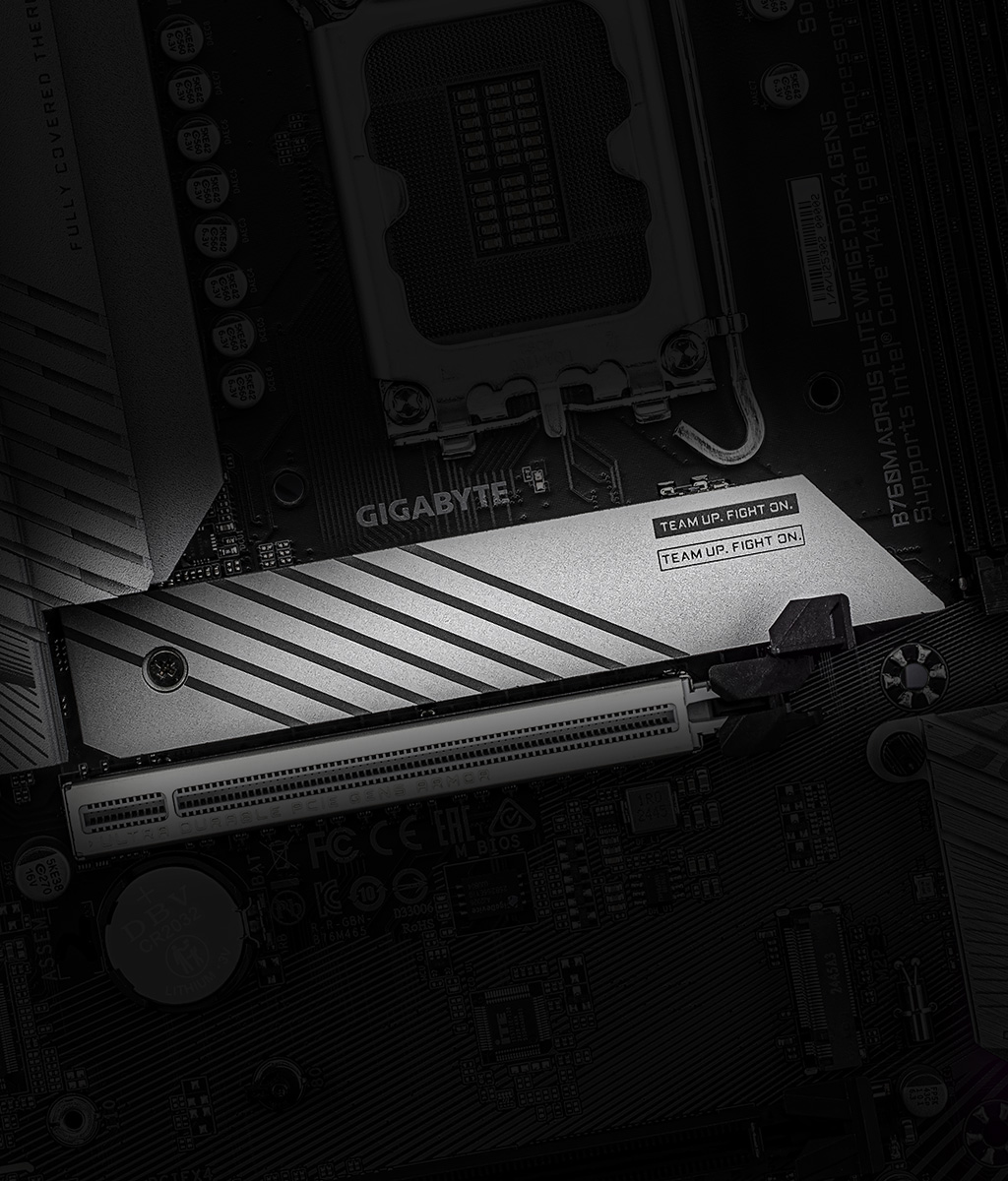

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Cool. Quiet. Customized.
Superior cooling performance and whisper-quiet operation for your gaming rig.
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Note: Images are for illustrative purposes and may differ based on your model.

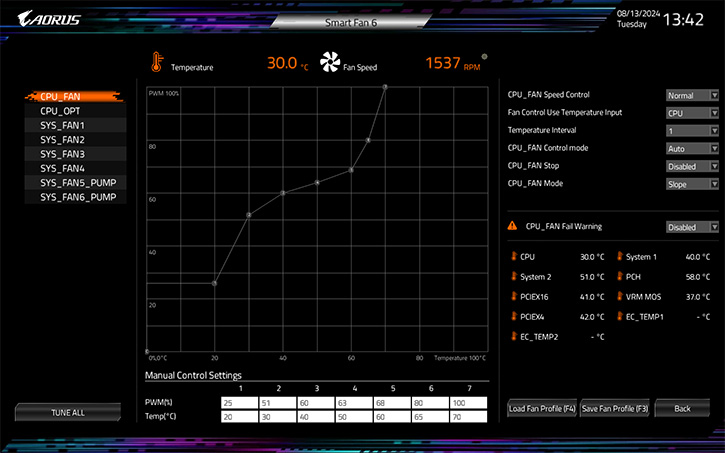

- 7 adjustable control points
- Expanded speed graph for precise adjustments
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts

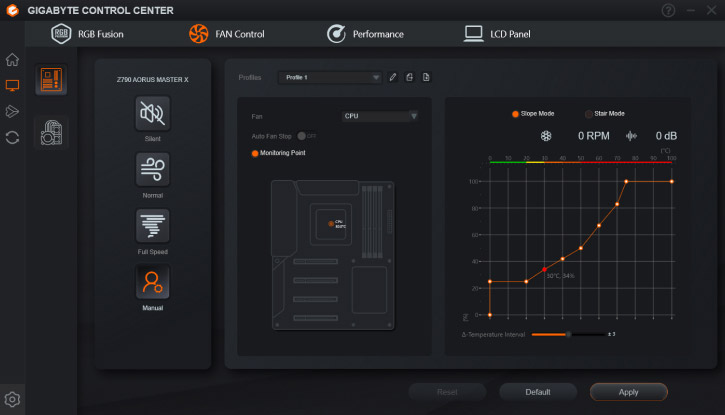

- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates
Our cutting-edge motherboard is designed for the ultimate DIY experience.

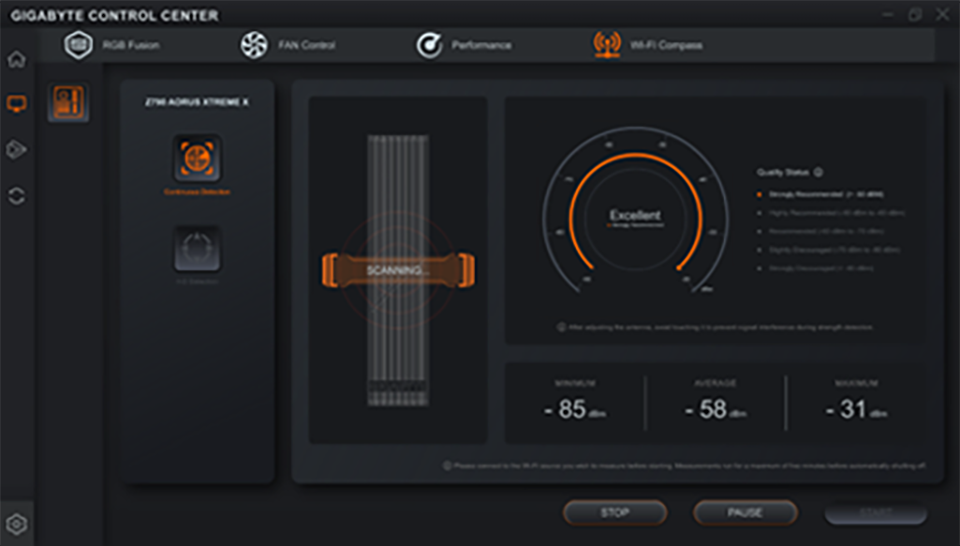

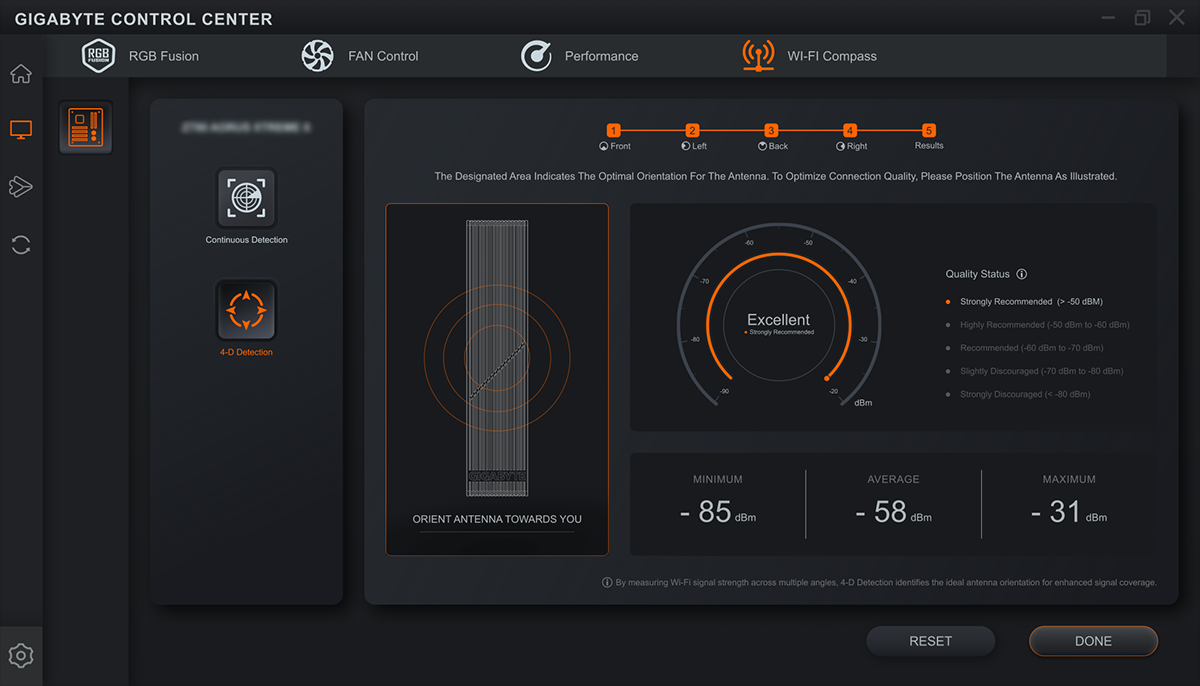

features auto detection to help users find the best antenna position for stronger Wi-Fi signal.
Built for everyday use
*Images for reference only and may vary by model.
Designed for technical enthusiasts.
*Images for reference only and may vary by model.
User-friendly designs simplifying the assembly process.

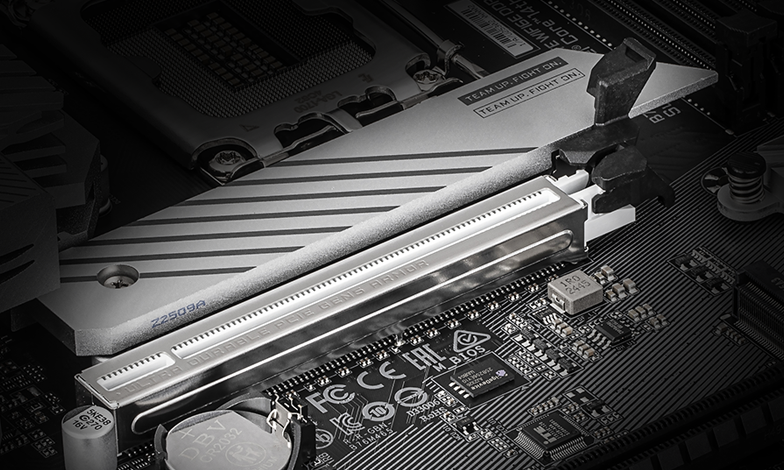

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
screwless installation for M.2 SSDs
Handy, Revert, Refresh

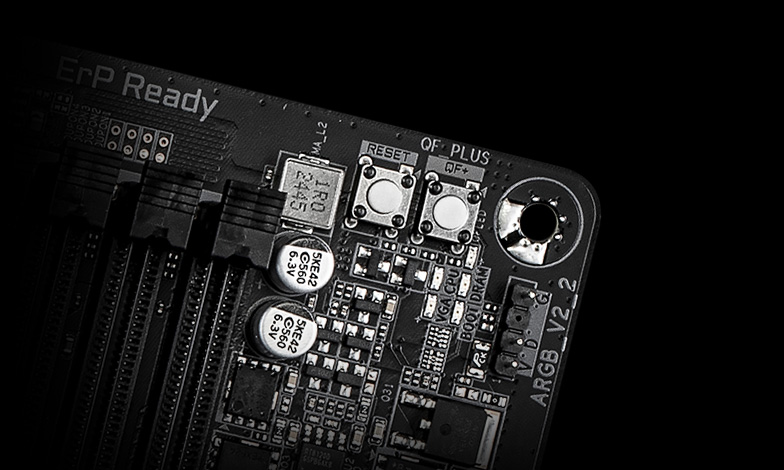

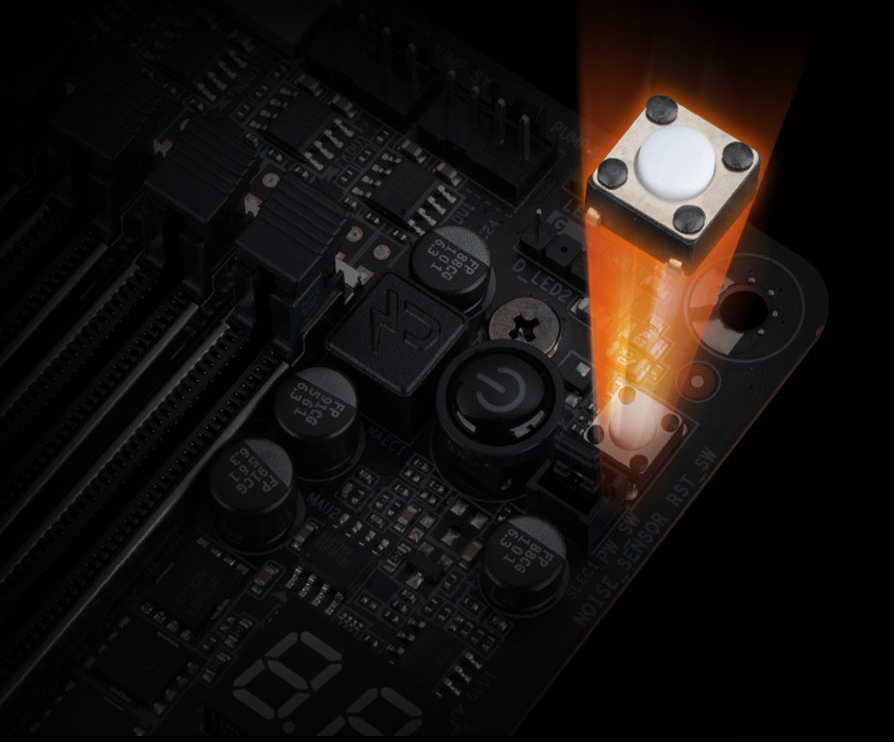

Multi-key Q-FLASH PLUS
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
Disable all light displays on the motherboard.
Access the BIOS settings directly without keyboard inputs.
Access BIOS safe mode to modify select settings while preserving other configurations.
* Photo for reference only.
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

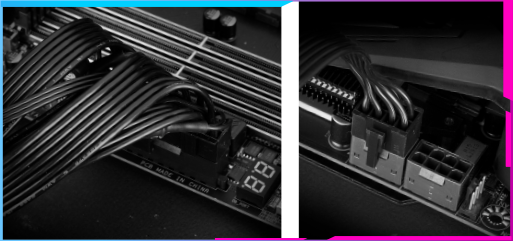

Connect the 24-pin and 8-pin power cables directly to the motherboard.

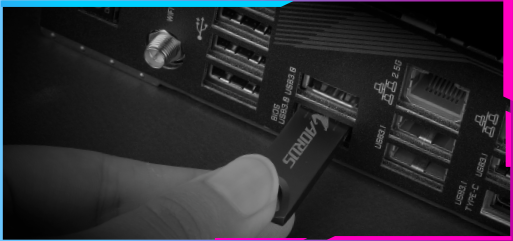

Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.

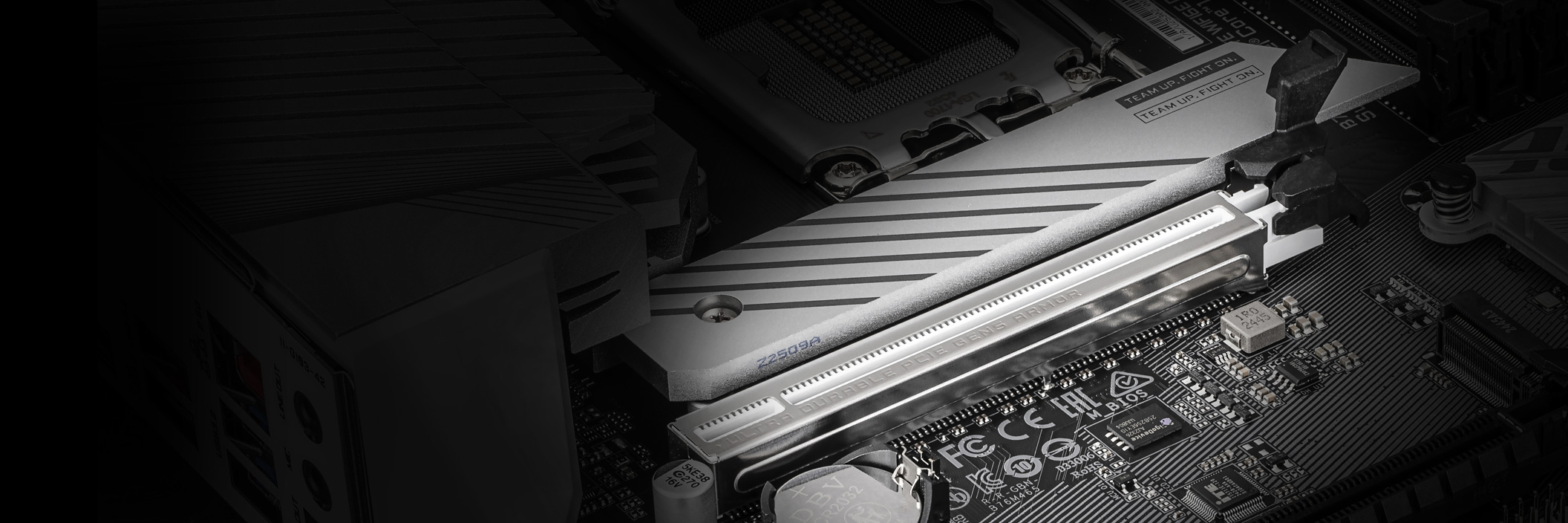

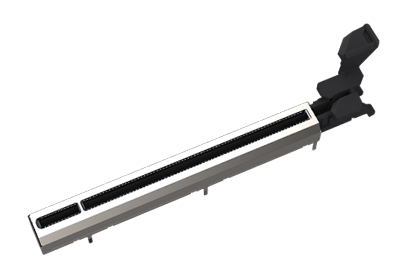

PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

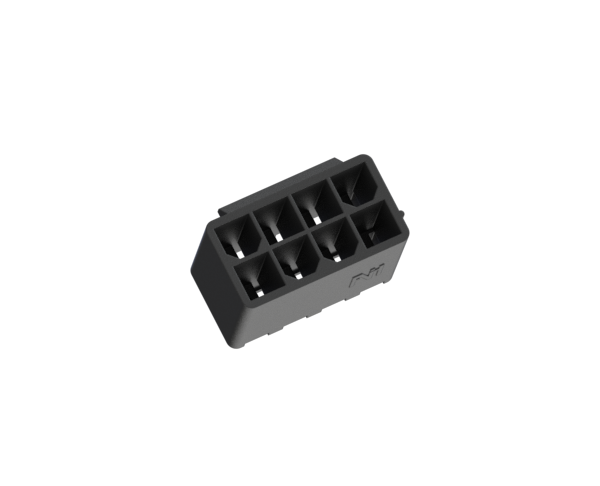

UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
* Picture is for reference only.
* Memory overlocking and XMP profile support may vary depending on hardware configuration. * Please see the complete validated memory support list. Product features may vary by model.
Maximum Turbo Boost and overclocking performance

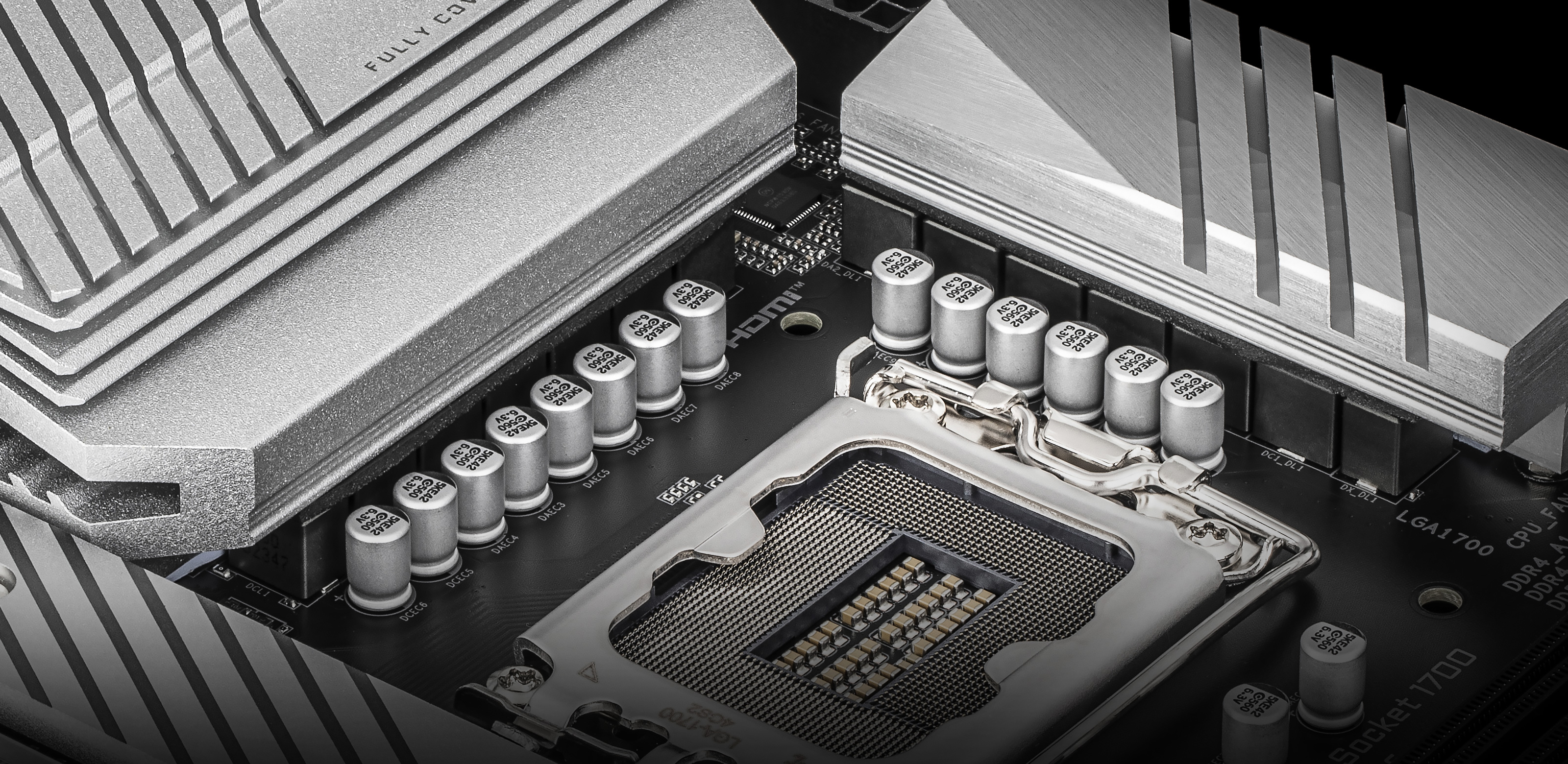

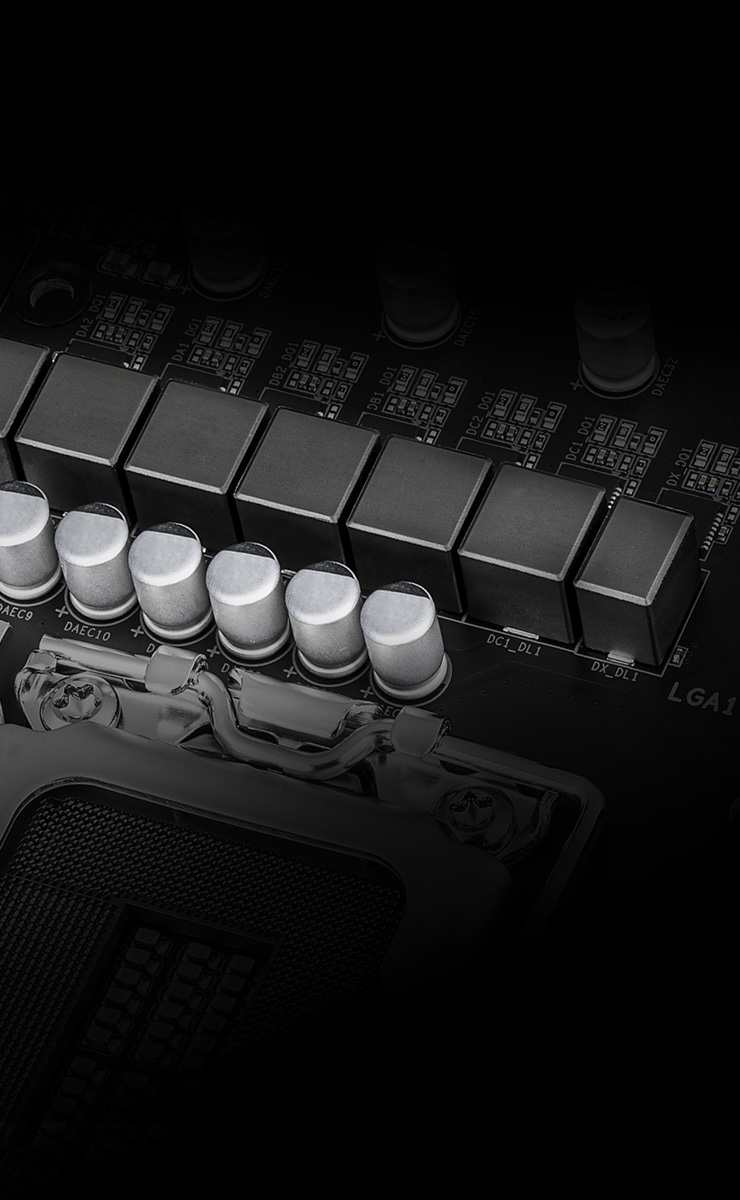

To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, AORUS series motherboard equip the best VRM design ever built with the highest quality components.
To unleash full potential of multi-cores CPU performance.
*6+6 phases parallel power design
For CPU integrated GPU performance.
Provide stable power for CPU integrated PCIe & Memory controller.

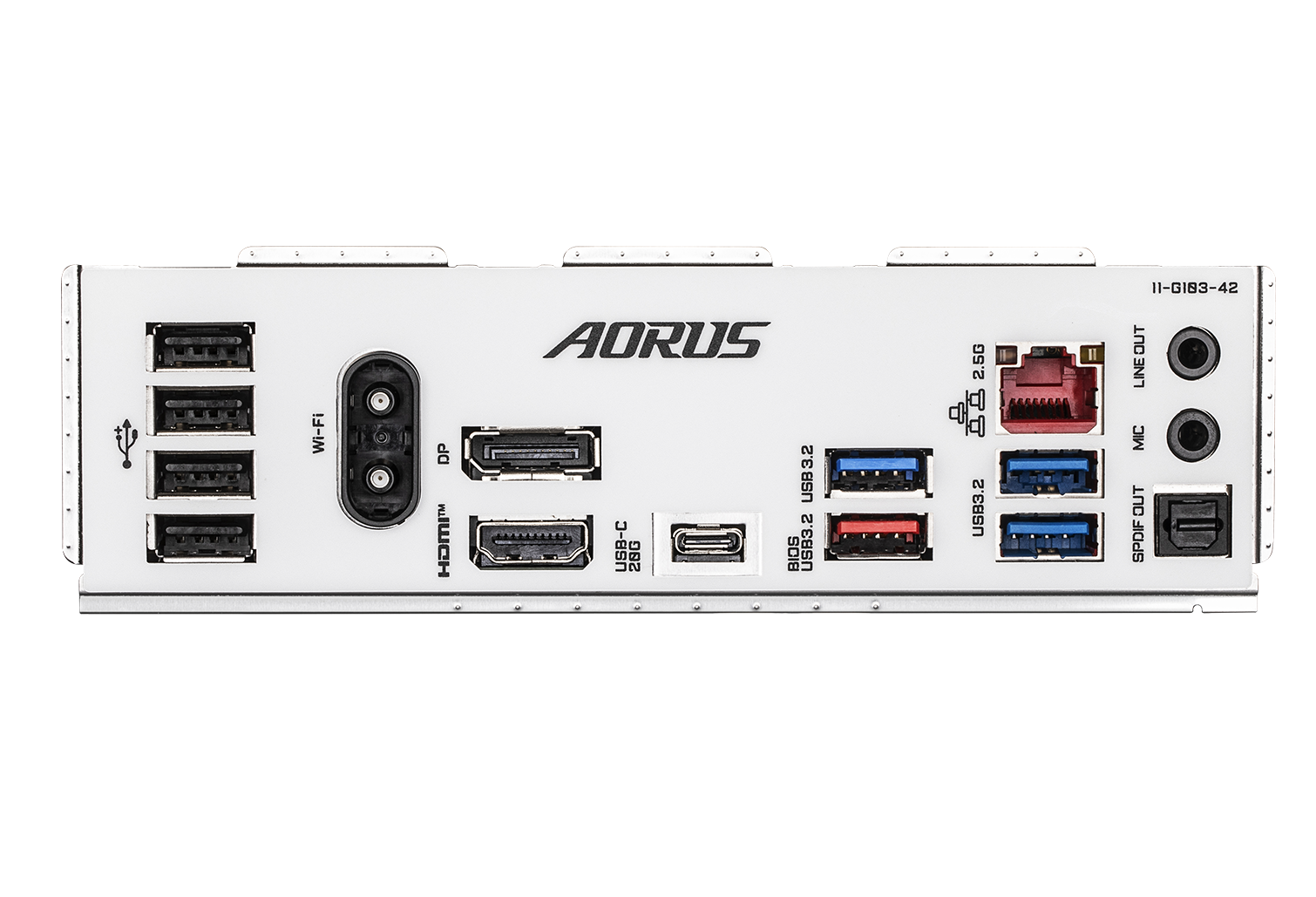

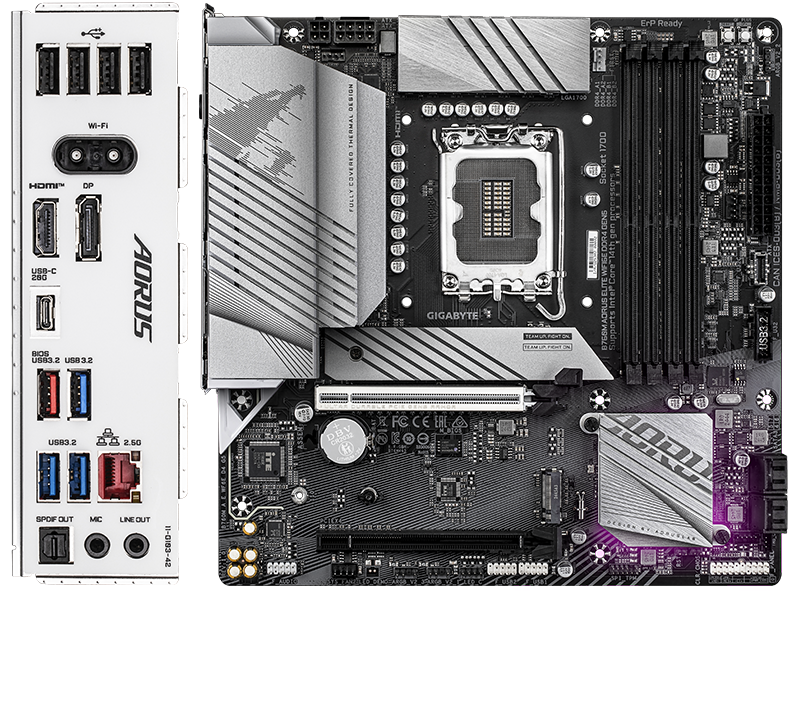

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Wi-Fi 6E
2.5GbE LAN
Rear USB-C® 20Gb/s
Front USB-C® 10Gb/s
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
* Photo for reference only.
- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
- 40% faster speed for smoother gaming/streaming experience
- 50% higher resolution for video game related content
- Better battery life for VR devices
Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.
design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.

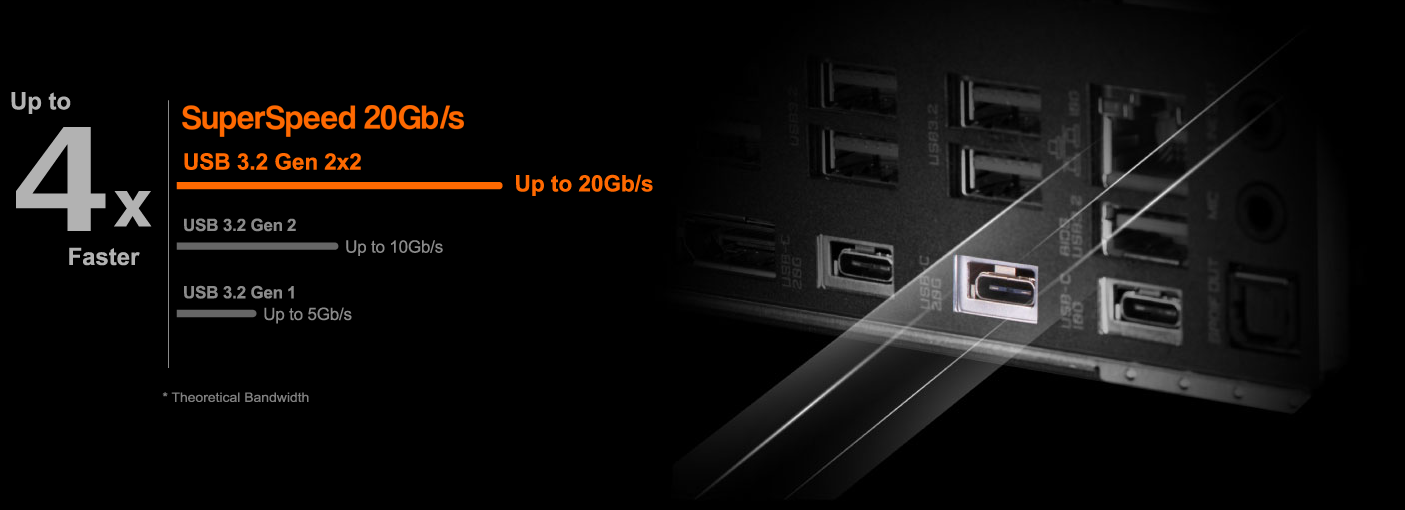

Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
* Photo for reference only.

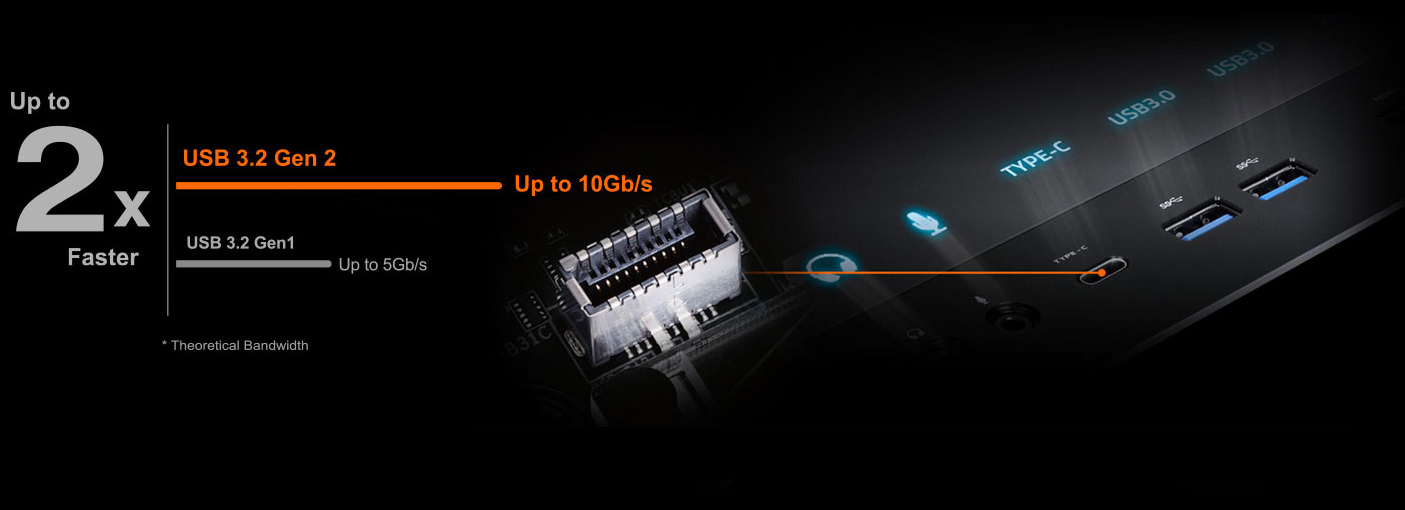

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
* Photo for reference only.

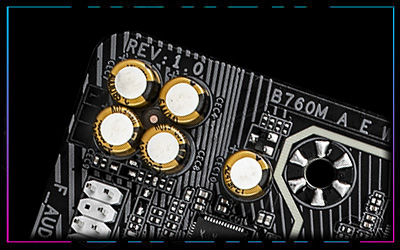

High-End Audio Capacitors

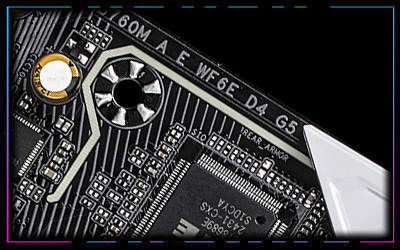

Audio Noise Guard
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

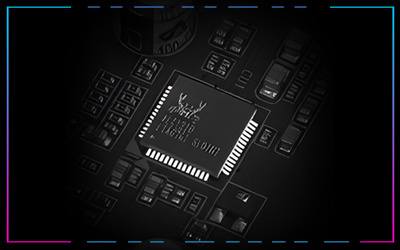

Dive into enveloping surround sound and enjoy DSD audio playback with the Realtek ALC1220 Codec.
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

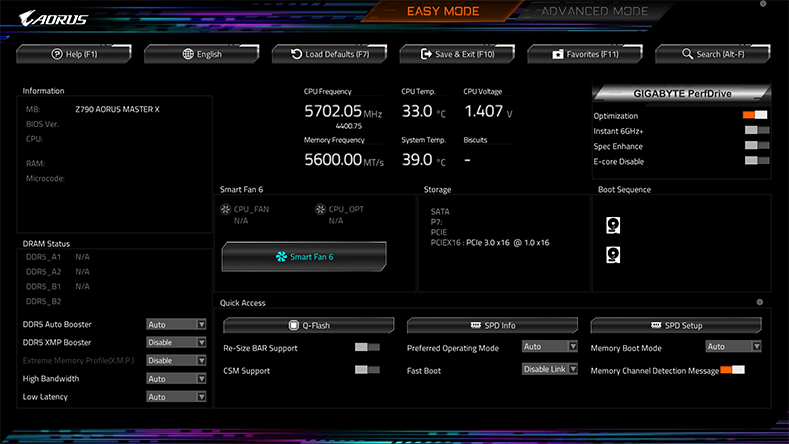

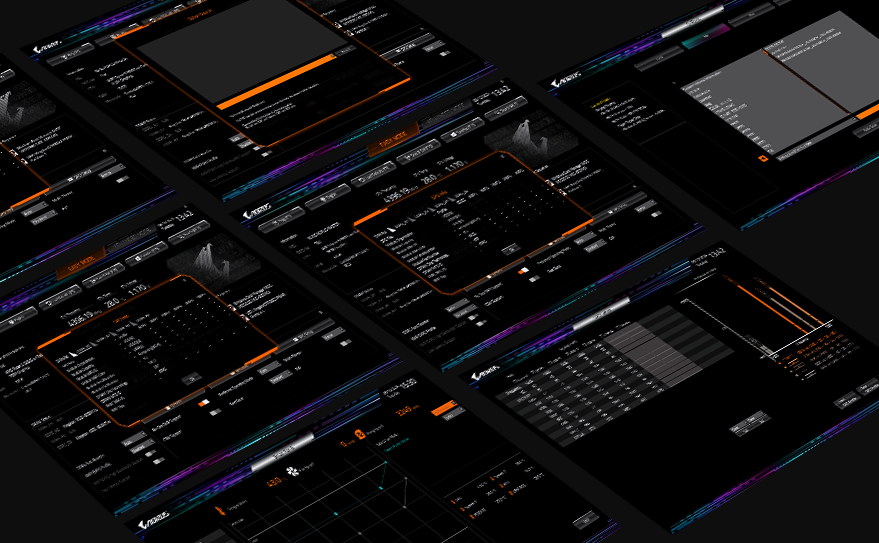

UC BIOS
GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.
* Images for reference only and may vary by model.

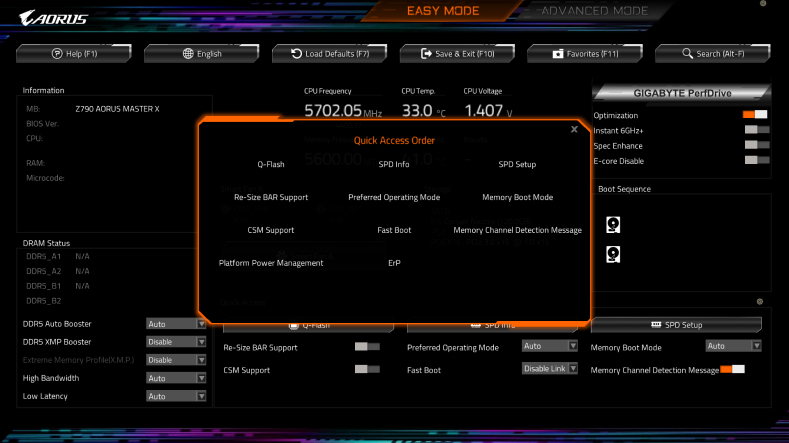

GIGABYTE UC BIOS' Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.
PerfDrive technology integrates exclusive BIOS settings from GIGABYTE, enabling easy balance of performance, power consumption, and temperature with Intel® Core™ processors.
Unleashes the maximum Turbo Boost speed of Intel® Core™ CPUs.
Strikes a balance between high performance and low temperature for Intel® Core™ CPUs.
Enables high-performance operation of Intel® Core™ CPUs at lower temperature settings.
Dedicates CPU resources exclusively to the P-core, enhancing gaming performance while reducing overall power consumption.
GIGABYTE Control Center
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design
- PCIe UD Slot: Ultra Durable™ SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR4 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN, Wi-Fi 6E & BT
- Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
