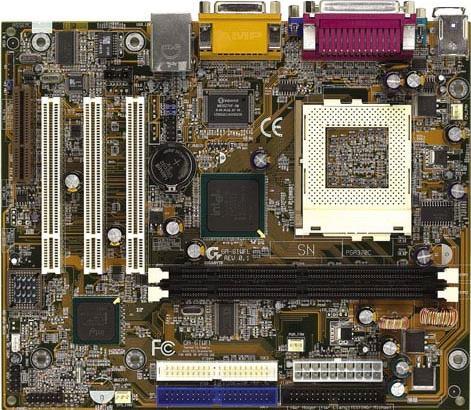

GA-6IWFL (Rev. 1.x)

SpécificationsSupportActualité / RécompensesWhere to Buy

Spécifications

  • Processeur
    1. Universal socket 370 supports Intel® FC-PGA/FC-PGA2 Pentium® III (CopperMine / Tualatin) or other compatible processors
    2. Supports Auto/66/100/133 MHz FSB (Front Side Bus)
  • Chipset
    1. Intel® 810E2 Chipset
    2. Winbond W83627HF Super I/O and health chip
    3. Intel DA82562ET LAN PHY
    4. Realtek ALC201A AC97 codec
  • Mémoire
    1. Supports up to 512 MB SDRAM memory
    2. 2 DIMMs 168-pin sockets
    3. Supports 8/32/64/128/256/512 MB SDRAM modules
  • Port d'expansion
    1. 3 x PCI slots support 33MHz and PCI 2.2 compliant
    2. 1 x CNR (Communication Net working Riser) slot
  • Contrôleur d'Entrée/Sortie
    1. 2 x UDMA ATA 66/100 IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x VGA, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board.
    3. 1 x RJ45 Ethernet Lan port
    4. 1 x Gameport, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    5. 2 x USB ports on board, 2 x USB ports by cable (cable optional)
    6. IrDA TX / RX header
    7. Front panel audio connector
  • Monitorage Matériel
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent and driverless)
    2. 3 fan power and speed detection connectors
    3. System health status detect and report by BIOS
    4. H/W detect and report power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. 4Mbit flash ROM BIOS, enhanced ACPI feature for PC98/Win98/Me/Win2000/NT/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    3. Auto-detect and report system health status
  • Dimensions
    1. Flex ATX form factor, 4 layers PCB (22.90 x 19.00 cm)
  • Pilote
    1. Gigabyte Windows Utility Manager utility
    2. Hardware monitor utility
  • Autres Caractéristiques
    1. Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Poly fuse for keyboard over-current protection
  • Puissance
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem and Switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down and switch
  • Processeur
    1. Universal socket 370 supports Intel® FC-PGA/FC-PGA2 Pentium® III (CopperMine / Tualatin) or other compatible processors
    2. Supports Auto/66/100/133 MHz FSB (Front Side Bus)
  • Chipset
    1. Intel® 810E2 Chipset
    2. Winbond W83627HF Super I/O and health chip
    3. Intel DA82562ET LAN PHY
    4. Realtek ALC201A AC97 codec
  • Mémoire
    1. Supports up to 512 MB SDRAM memory
    2. 2 DIMMs 168-pin sockets
    3. Supports 8/32/64/128/256/512 MB SDRAM modules
  • Port d'expansion
    1. 3 x PCI slots support 33MHz and PCI 2.2 compliant
    2. 1 x CNR (Communication Net working Riser) slot
  • Contrôleur d'Entrée/Sortie
    1. 2 x UDMA ATA 66/100 IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x VGA, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board.
    3. 1 x RJ45 Ethernet Lan port
    4. 1 x Gameport, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    5. 2 x USB ports on board, 2 x USB ports by cable (cable optional)
    6. IrDA TX / RX header
    7. Front panel audio connector
  • Monitorage Matériel
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent and driverless)
    2. 3 fan power and speed detection connectors
    3. System health status detect and report by BIOS
    4. H/W detect and report power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. 4Mbit flash ROM BIOS, enhanced ACPI feature for PC98/Win98/Me/Win2000/NT/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    3. Auto-detect and report system health status
  • Dimensions
    1. Flex ATX form factor, 4 layers PCB (22.90 x 19.00 cm)
  • Pilote
    1. Gigabyte Windows Utility Manager utility
    2. Hardware monitor utility
  • Autres Caractéristiques
    1. Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Poly fuse for keyboard over-current protection
  • Puissance
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem and Switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down and switch
