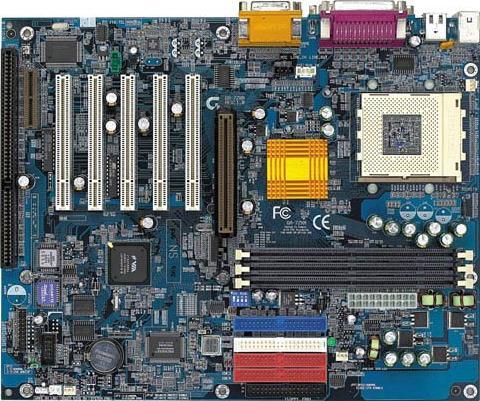

GA-7ZXR (Rev. 1.x)

Rev. 1.xRev. 2.xRev. 3.x
SpécificationsSupportActualité / RécompensesWhere to Buy

Spécifications

  • Processeur
    1. AMD® Athlon™ /Duron™ (K7) Socket A processor (256K/64K 2nd cache on die)
    2. Supports 500MHz ~ 1.4GHz and faster
    3. 95/100/103*/105*/110*/115*/133* MHz FSB
      (*Support by over-clocking)
    4. AUTO detects CPU voltage
  • Chipset
    1. VIA VT8363 (KT133) Memory/AGP/PCI Controller (PAC)
    2. VIA VT82C686A PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. Creative CT5880 PCI sound chip (4 channel audio)
    4. Promise PDC 20265 ATA100 w/ RAID chip
  • Mémoire
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Port d'expansion
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 5 x PCI slots support 33Mhz & PCI 2.2 compliant
    4. 1 x ISA slot
  • Contrôleur d'Entrée/Sortie
    1. 2 x Ultra DMA 33/66 bus master IDE ports on board
    2. 2 x Ultra DMA 33/66/100 bus master IDE ports on board
    3. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    4. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    5. 2 x USB ports on board, 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready (optional)
  • Monitorage Matériel
    1. CPU/System voltage detect (Vcore,VDD,Vcc,+12V)
    2. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
    3. CPU/System fan revolution & temperature detect
  • BIOS
    1. Supports DualBIOS™ technology; 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 ME compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control; Auto-detect & report system health status
    5. Supports @BIOS Live Update utility
  • Dimensions
    1. ATX form factor, 4 layers PCB (30.4*24.4 cm)
  • Pilote
    1. Gigabyte Windows Utility Manager
    2. Promise ATA100 IDE w/ RAID driver
    3. VIA 4 in 1 service pack utility
    4. Creative PCI sound driver
  • Autres Caractéristiques
    1. Suspend-To-RAM (STR) & Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Supports USB KB/MS Wake up from S3
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
  • Puissance
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch
  • Processeur
    1. AMD® Athlon™ /Duron™ (K7) Socket A processor (256K/64K 2nd cache on die)
    2. Supports 500MHz ~ 1.4GHz and faster
    3. 95/100/103*/105*/110*/115*/133* MHz FSB
      (*Support by over-clocking)
    4. AUTO detects CPU voltage
  • Chipset
    1. VIA VT8363 (KT133) Memory/AGP/PCI Controller (PAC)
    2. VIA VT82C686A PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. Creative CT5880 PCI sound chip (4 channel audio)
    4. Promise PDC 20265 ATA100 w/ RAID chip
  • Mémoire
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Port d'expansion
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 5 x PCI slots support 33Mhz & PCI 2.2 compliant
    4. 1 x ISA slot
  • Contrôleur d'Entrée/Sortie
    1. 2 x Ultra DMA 33/66 bus master IDE ports on board
    2. 2 x Ultra DMA 33/66/100 bus master IDE ports on board
    3. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    4. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    5. 2 x USB ports on board, 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready (optional)
  • Monitorage Matériel
    1. CPU/System voltage detect (Vcore,VDD,Vcc,+12V)
    2. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
    3. CPU/System fan revolution & temperature detect
  • BIOS
    1. Supports DualBIOS™ technology; 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 ME compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control; Auto-detect & report system health status
    5. Supports @BIOS Live Update utility
  • Dimensions
    1. ATX form factor, 4 layers PCB (30.4*24.4 cm)
  • Pilote
    1. Gigabyte Windows Utility Manager
    2. Promise ATA100 IDE w/ RAID driver
    3. VIA 4 in 1 service pack utility
    4. Creative PCI sound driver
  • Autres Caractéristiques
    1. Suspend-To-RAM (STR) & Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Supports USB KB/MS Wake up from S3
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
  • Puissance
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch

* Les termes HDMI, interface multimédia haute définition HDMI et habillage commercial HDMI, et les logos HDMI sont des marques commerciales et des marques déposées de HDMI Licensing Administrator, Inc.
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
