1. La conception d'économie d'énergie avec le gestionnaire DES Avancé est basée sur un commutateur dynamique à 4-vitesses
  2. Chipset Intel® Core™ 2 multi-coeur et processeurs 45nm / Support 1600 MHz FSB ( O.C. MHz)
  3. Dual channel DDR2 1066 ( O.C. )
  4. Intègre la carte graphique Intel X4500HD (Intel GMA X4500HD)
  5. Haut niveau de protection digital TPM (2048bits).
    (le dispositif Ultra TPM est facultatif en fonction de la région.)
  6. Gigabit Ethernet et Firewire IEEE1394
  7. Qualité Audio HD 106dB SNR ALC889A HD
  8. Support Dolby Home Theater®
  9. Décodeur vidéo intégrée pour améliorer la vidéo HD et le support dBlu-ray/ HD DVD
  10. Intègre l'interface HDMI (1080) avec le support HDCP
  • Introduction

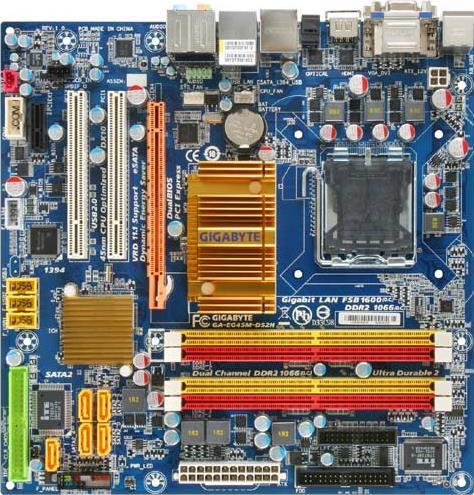

    The GA-EG45M-DS2H based on the Intel G45 chipset supports the latest Intel 45nm CPUs and integrates support for HDMI, DVI and HDCP, creating a powerful multi-media platform which allows users to do more at once. At the heart of the Intel G45 Express chipset is the Intel X4500HD graphics media accelerator, which features several unique innovations including more Execution Units for enhanced 3D performance and Intel Clear Video Technology for sharper images and precise color control. The G45 chipset also supports smoother HD video playback, and includes support for Blu-ray and HD-DVD formats, thanks to built-in hardware video decode acceleration
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Smaller, Faster and More Efficient
    Carte mère pouvant être associée à un processeur Intel 45nm CPUs pour offrir des performances optimales et ce, au travers d'une gestion d'énergié contrôlée et optimisée.
  • Dual Channel DDR2 1066(OC)
    Bénéficiez de performances avancées grâce au support des mémoires DDR2 1066(OC) permettant le support des applications les plus gourmandes en mémoire
    * Se référez à la liste de compatibilité mémoire pour en savoir plus


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE's DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 4-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.
  • Dolby Home Theater®
    Dolby Home Theater positionne chaque utilisateur au coeur de son environnement multimédia pour une expérience cinématographique unique.
  • Offre un son surround de qualité pour chacun de vos jeux, films ou fichier musical.
  • Détection / Configurations automatique de votre environnement
  • Intel GMA X4500HD
    Intel Graphics Media Accelerator X4500HD support Microsoft DirectX10, Intel® Clear Video Technology, and full hardware accelerated HD decode which enable superior HD playback and quality. The 3D enhancement of GMA X4500HD also highly improves the realism and graphics performance for mainstream gaming. Through the support of DVI and HDMI (with HDCP), Intel GMA X4500HD brings the ultimate multimedia experience.
  • Intel® Clear Video Technology
    Intel® Clear Video Technology delivers enhanced video playback, sharper images, and precise color control for a premium visual experience...more
  • HDMI-Interface multimédia de nouvelle génération
    HDMI is the latest High-Definition Multimedia Interface able to provide up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • ALC889A Enables a Superior Audio Experience

    Excellent Audio Performance
    High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.



    Blu-ray Full Rate Audio Support
    The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support Blu-ray formats for an exhilarating home theater entertainment experience.


    7.1+2 Channel High Definition Output
    The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.


  • Ultra TPM - Le plus haut niveau de protection des données
    TPM function is optional due to different regional policy
    • Maximum level of data protection with 2048 bit encryption
    • Security, manageability and flexibility that surpasses software-based encryption
    • Portable User Key to protect data when away from your system
    • Additional backup of user key in BIOS in case of misplaced key
    • After creating the password(s) and key(s) associated the TPM, be sure to store them in a secure location and back them up. Loss of the password(s) or the key(s) will render the files encrypted via the TPM unable to be cracked or read.
    • Though the TPM delivers the latest data security technology, it does not guarantee data integrity or give hardware protection. GIGABYTE is not liable for loss of encrypted data as a result of hardware damage.
    (Note)If you want to uninstall the Ultra TPM utility, be sure to insert the USB flash drive containing the TPM key into your computer before the uninstallation.

  • Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.
  • EasyTune6
    Logiciel de gestion et de tweaking de votre système


  • DDualBIOS™ - Protection Double Bios
    DualBIOS™ - Protection Double Bios
  • Ultra Durable 2 – Composants de Qualité pour Cartes Mères de qualité


    Ultra Cooling - Low RDS(on) MOSFET Design
    Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging.

    Ultra Cooling

    Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.

    Low Power Loss




    Longer Life - All-Solid Capacitor Design
    Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors.

    Longer Life

  • Condensateurs solides japonais - 50,000h
    GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


    * 50000 hours of work time is calculated at 85℃ ambient temperature.

    • * Les termes HDMI, interface multimédia haute définition HDMI et habillage commercial HDMI, et les logos HDMI sont des marques commerciales et des marques déposées de HDMI Licensing Administrator, Inc.
    * Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
    * Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
    * L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
