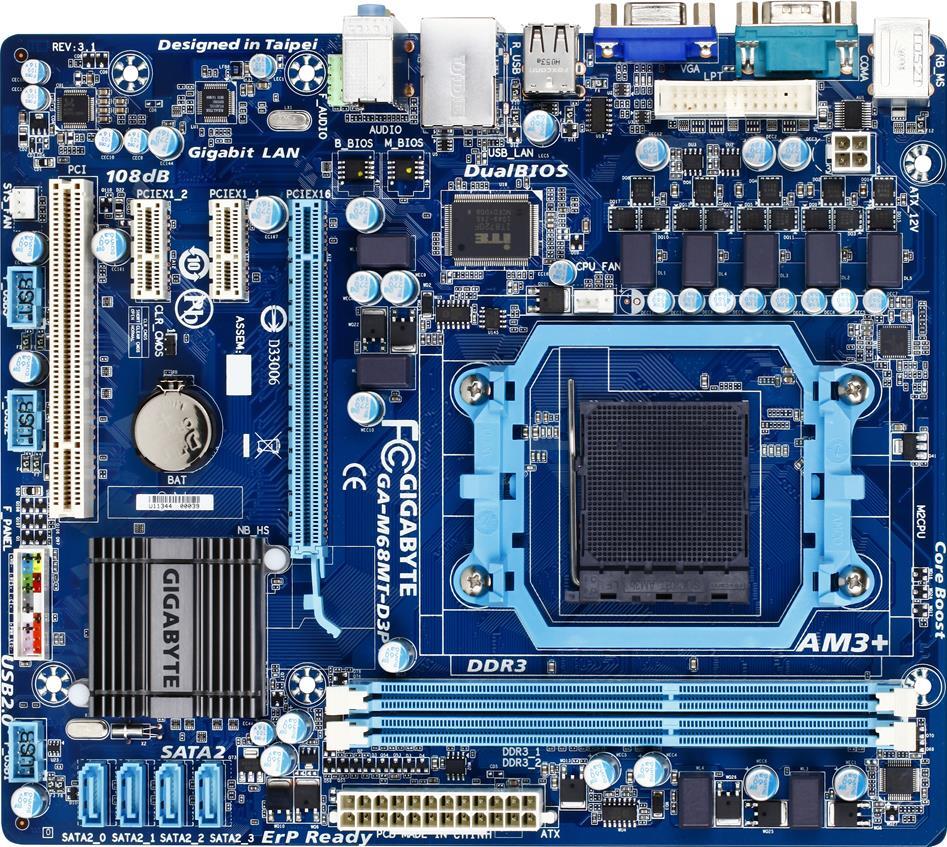

GA-M68MT-D3P (Rev. 3.1)

Rev. 3.1Rev. 3.0
NVIDIA® GeForce 7025 / nForce 630a chipset
GénéralitésSpécificationsSupportActualité / RécompensesWhere to Buy

Spécifications

  • Processeur
  • AM3+ Socket:
    1. Support for AMD AM3+ FX processors (Note 1)
    2. Support for AMD Phenom™ II processors/ AMD Athlon™ II processors
    (Please refer "CPU Support List" for more information.)
  • Hyper Transport
    1. 2000 MT/s
  • Chipset
    1. NVIDIA® GeForce 7025/nForce 630a chipset
  • Mémoire
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8GB of system memory (Note 2)
    2. Dual channel memory architecture
    3. 1600/1333/1066/800 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • Carte Graphique Intégrée
  • Chipset:
    1. 1 x D-Sub port
  • Audio
    1. Realtek ALC888B/889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 3)
  • Réseau
    1. 1 x Realtek RTL8211CL chip (10/100/1000 Mbit)
  • Port d'expansion
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots
    3. 1 x PCI slot
  • Interface de Stockage
  • Chipset
    1. 4x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    2. Support for RAID 0, RAID 1, RAID 5, RAID 10 and JBOD
  • USB
  • Chipset:
    1. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
  • Connecteurs d'entrées/sorties internes
    1. 1 x 24-pin ATX power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 3 x USB 2.0/1.1 headers
    9. 1 x parallel port connector
    10. 1 x clearing CMOS jumper
  • Connecteur du Panneau Arrière
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x serial port
    4. 1 x D-Sub port
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In / Line Out / Microphone)
  • Contrôleur d'Entrée/Sortie
    1. iTE IT8720 chip
  • Monitorage Matériel
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan failure warning
    6. CPU fan speed control (Note 4)
  • BIOS
    1. 2 x 16 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Fonctionnalités Exclusives
    1. Supports @BIOS
    2. Supports Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Supports Download Center
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports EasyTune(Note 5)
    8. Support for Auto Green
    9. Support for On/Off Charge
  • Logiciels Fournis
    1. Norton Internet Security (OEM version)
  • Système d'Exploitation
    1. Support for Microsoft Windows 7/Vista/XP
  • Dimensions
    1. Micro ATX form factor; 24.4cm x 20.5cm
  • Note
  • (Note 1) If your system is AM3+ CPU-based and Windows XP, please install an external graphics card and use its video output for displaying.

    (Note 2) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

    (Note 3) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

    (Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

    (Note 5) Available functions in EasyTune may differ by motherboard model.
  • Remarque
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
  • Processeur
  • AM3+ Socket:
    1. Support for AMD AM3+ FX processors (Note 1)
    2. Support for AMD Phenom™ II processors/ AMD Athlon™ II processors
    (Please refer "CPU Support List" for more information.)
  • Hyper Transport
    1. 2000 MT/s
  • Chipset
    1. NVIDIA® GeForce 7025/nForce 630a chipset
  • Mémoire
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8GB of system memory (Note 2)
    2. Dual channel memory architecture
    3. 1600/1333/1066/800 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • Carte Graphique Intégrée
  • Chipset:
    1. 1 x D-Sub port
  • Audio
    1. Realtek ALC888B/889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 3)
  • Réseau
    1. 1 x Realtek RTL8211CL chip (10/100/1000 Mbit)
  • Port d'expansion
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots
    3. 1 x PCI slot
  • Interface de Stockage
  • Chipset
    1. 4x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    2. Support for RAID 0, RAID 1, RAID 5, RAID 10 and JBOD
  • USB
  • Chipset:
    1. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
  • Connecteurs d'entrées/sorties internes
    1. 1 x 24-pin ATX power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 3 x USB 2.0/1.1 headers
    9. 1 x parallel port connector
    10. 1 x clearing CMOS jumper
  • Connecteur du Panneau Arrière
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x serial port
    4. 1 x D-Sub port
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In / Line Out / Microphone)
  • Contrôleur d'Entrée/Sortie
    1. iTE IT8720 chip
  • Monitorage Matériel
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan failure warning
    6. CPU fan speed control (Note 4)
  • BIOS
    1. 2 x 16 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Fonctionnalités Exclusives
    1. Supports @BIOS
    2. Supports Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Supports Download Center
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports EasyTune(Note 5)
    8. Support for Auto Green
    9. Support for On/Off Charge
  • Logiciels Fournis
    1. Norton Internet Security (OEM version)
  • Système d'Exploitation
    1. Support for Microsoft Windows 7/Vista/XP
  • Dimensions
    1. Micro ATX form factor; 24.4cm x 20.5cm
  • Note
  • (Note 1) If your system is AM3+ CPU-based and Windows XP, please install an external graphics card and use its video output for displaying.

    (Note 2) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

    (Note 3) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

    (Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

    (Note 5) Available functions in EasyTune may differ by motherboard model.
  • Remarque
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* Les termes HDMI, interface multimédia haute définition HDMI et habillage commercial HDMI, et les logos HDMI sont des marques commerciales et des marques déposées de HDMI Licensing Administrator, Inc.
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
