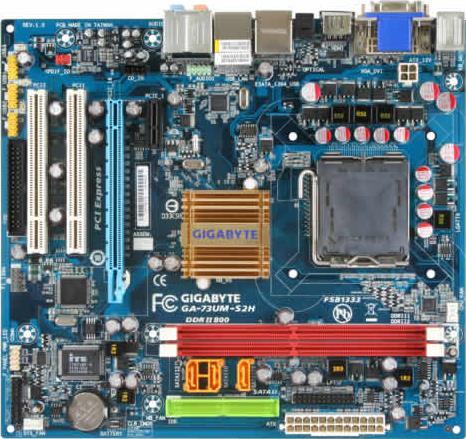

GA-73UM-S2H (Rev. 1.0)

NVIDIA GeForce 7150 / nForce 630i Chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/ Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/ Intel® Pentium® 4processor/Intel® Celeron® processor in the LGA 775 package
    **L2 cache varies with CPU
  • Front Side Bus
  • 1333/1066/800 MHz FSB
  • Chipset
  • NVIDIA® GeForce 7150/nForce 630i
  • Memory
    1. 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
    2. Support for DDR2 800/667/533 MHz memory modules
  • Onboard Graphics
  • Integrated in the nVIDIA® GeForce 7150/nForce 630i chipset
  • Audio
    1. Realtek ALC889A codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. RTL 8211B chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot
    2. 1 x PCI Express x1 slot
    3. 2 x PCI slots
    • Storage Interface
    • NVIDIA® GeForce 7150/nForce 630i chipset:
      1. 3 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2) supporting up to 3 SATA 3Gb/s devices
      2. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
      3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 0+1
      4. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
      1. Integrated in the NVIDIA® GeForce 7150/nForce 630i chipset
      2. Up to 10 USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets connected to the internal USB headers)
    • IEEE 1394a
      1. T.I. TSB43AB23 chip
      2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 3 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x system fan header
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF In/Out header
      12. 1 x IEEE 1394a header
      13. 3 x USB 2.0/1.1 headers
      14. 1 x parallel port header
      15. 1 x serial port header
      16. 1 x chassis intrusion header
      17. 1 x power LED header
    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port
      4. 1 x DVI-D port (Note 1)
      5. 1 x HDMI port
      6. 1 x optical S/PDIF Out connector
      7. 1 x eSATA 3Gb/s port
      8. 1 x IEEE 1394a port
      9. 4 x USB 2.0/1.1 ports
      10. 1 x RJ-45 port
      11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
    • I/O Controller
      1. iTE IT8718 chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
    • BIOS
      1. 1 x 4 Mbit flash
      2. Use of licensed AWARD BIOS
      3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
    • Unique Features
      1. Support for @BIOS
      2. Support for Download Center
      3. Support for Q-Flash
      4. Support for EasyTune (Note 2)
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for Virtual Dual BIOS
    • Bundled Software
      1. Norton Internet Security (OEM version)
    • Operating System
      1. Support for Microsoft® Windows Vista/XP
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 22.0cm
    • Note
    • (Note 1)The DVI-D port does not support D-Sub connection by adapter.
      (Note 2)Available functions in Easytune may differ by motherboard model.
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
    • CPU
      1. Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/ Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/ Intel® Pentium® 4processor/Intel® Celeron® processor in the LGA 775 package
      **L2 cache varies with CPU
    • Front Side Bus
    • 1333/1066/800 MHz FSB
    • Chipset
    • NVIDIA® GeForce 7150/nForce 630i
    • Memory
      1. 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
      2. Support for DDR2 800/667/533 MHz memory modules
    • Onboard Graphics
    • Integrated in the nVIDIA® GeForce 7150/nForce 630i chipset
    • Audio
      1. Realtek ALC889A codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In/Out
      5. Support for CD In
    • LAN
      1. RTL 8211B chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot
      2. 1 x PCI Express x1 slot
      3. 2 x PCI slots
      • Storage Interface
      • NVIDIA® GeForce 7150/nForce 630i chipset:
        1. 3 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2) supporting up to 3 SATA 3Gb/s devices
        2. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
        3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 0+1
        4. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
        iTE IT8718 chip:
        1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
      • USB
        1. Integrated in the NVIDIA® GeForce 7150/nForce 630i chipset
        2. Up to 10 USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets connected to the internal USB headers)
      • IEEE 1394a
        1. T.I. TSB43AB23 chip
        2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
      • Internal I/O Connectors
        1. 1 x 24-pin ATX main power connector
        2. 1 x 4-pin ATX 12V power connector
        3. 1 x floppy disk drive connector
        4. 1 x IDE connector
        5. 3 x SATA 3Gb/s connectors
        6. 1 x CPU fan header
        7. 1 x system fan header
        8. 1 x front panel header
        9. 1 x front panel audio header
        10. 1 x CD In connector
        11. 1 x S/PDIF In/Out header
        12. 1 x IEEE 1394a header
        13. 3 x USB 2.0/1.1 headers
        14. 1 x parallel port header
        15. 1 x serial port header
        16. 1 x chassis intrusion header
        17. 1 x power LED header
      • Back Panel Connectors
        1. 1 x PS/2 keyboard port
        2. 1 x PS/2 mouse port
        3. 1 x D-Sub port
        4. 1 x DVI-D port (Note 1)
        5. 1 x HDMI port
        6. 1 x optical S/PDIF Out connector
        7. 1 x eSATA 3Gb/s port
        8. 1 x IEEE 1394a port
        9. 4 x USB 2.0/1.1 ports
        10. 1 x RJ-45 port
        11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
      • I/O Controller
        1. iTE IT8718 chip
      • H/W Monitoring
        1. System voltage detection
        2. CPU/System temperature detection
        3. CPU/System fan speed detection
        4. CPU overheating warning
        5. CPU/System fan fail warning
        6. CPU/System fan speed control
      • BIOS
        1. 1 x 4 Mbit flash
        2. Use of licensed AWARD BIOS
        3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
      • Unique Features
        1. Support for @BIOS
        2. Support for Download Center
        3. Support for Q-Flash
        4. Support for EasyTune (Note 2)
        5. Support for Xpress Install
        6. Support for Xpress Recovery2
        7. Support for Virtual Dual BIOS
      • Bundled Software
        1. Norton Internet Security (OEM version)
      • Operating System
        1. Support for Microsoft® Windows Vista/XP
      • Form Factor
        1. Micro ATX Form Factor; 24.4cm x 22.0cm
      • Note
      • (Note 1)The DVI-D port does not support D-Sub connection by adapter.
        (Note 2)Available functions in Easytune may differ by motherboard model.
      • Remark
        1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
        2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
