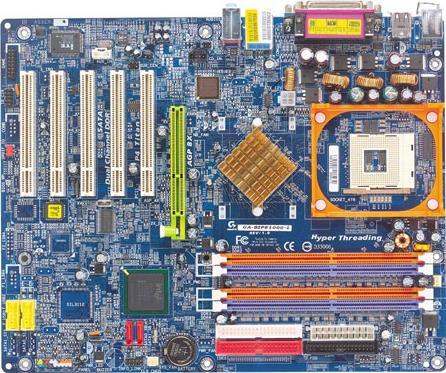

GA-8IPE1000-L (Rev. 1.x)

Rev. 1.xRev. 2.x
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor.
  • Front Side Bus
    1. 800 / 533/400 MHz FSB
  • Chipset
    1. North Bridge : Intel® 865PE MCH
    2. South Bridge : Intel® ICH5
    3. Integrated Peripherals :
      1. Intel® PRO/100 VE Ethernet Controller
      2. Realtek ALC655 CODEC
  • Memory
    1. Type: Dual Channel DDR 400 / 333 / 266 support
    2. Max capacity: 4 GB (Please read FAQ for further information)
    3. DIMM slots: 4
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Expansion Slots
    1. 1 x AGP 8x slot
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Internal I/O Connectors
    1. 2 x Serial ATA ports
    2. 2 x UltraDMA 100/66 Bus Master IDE
    3. 1 x FDD
    4. 2 x USB 2.0 (supports 4 ports by cable)
    5. CD/AUX in
    6. 1 x Game port pin header
  • Back Panel Connectors
    1. 4 x USB 2.0 ports
    2. 1 x RJ45 Lan port
    3. 1 x LPT port
    4. 2 x COM ports
    5. 3 x Audio ports (Line-in / Line-out / MIC)
    6. 2 x PS/2 ports (Keyboard/Mouse)
  • H/W Monitoring
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 2M bit flash ROM, Award BIOS
  • Bundled Software
    1. Norton Internet Security 2003
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. ATX
    2. 30.5cm x 24.4cm
  • Driver
    1. Intel® chipset software installation utility
    2. Intel LAN driver
    3. Realtek audio driver
    4. USB2.0 driver
  • Other Features
    1. Xpress Install
    2. Xpress Recovery
    3. Xpress BIOS Rescue
    4. EasyTune™ 4
    5. @BIOS
    6. Q-Flash™
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Socket 478 for Intel® Pentium® 4 processor.
    • Front Side Bus
      1. 800 / 533/400 MHz FSB
    • Chipset
      1. North Bridge : Intel® 865PE MCH
      2. South Bridge : Intel® ICH5
      3. Integrated Peripherals :
        1. Intel® PRO/100 VE Ethernet Controller
        2. Realtek ALC655 CODEC
    • Memory
      1. Type: Dual Channel DDR 400 / 333 / 266 support
      2. Max capacity: 4 GB (Please read FAQ for further information)
      3. DIMM slots: 4
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • Expansion Slots
      1. 1 x AGP 8x slot
      2. 5 x PCI slots (PCI 2.3 compliant)
    • Internal I/O Connectors
      1. 2 x Serial ATA ports
      2. 2 x UltraDMA 100/66 Bus Master IDE
      3. 1 x FDD
      4. 2 x USB 2.0 (supports 4 ports by cable)
      5. CD/AUX in
      6. 1 x Game port pin header
    • Back Panel Connectors
      1. 4 x USB 2.0 ports
      2. 1 x RJ45 Lan port
      3. 1 x LPT port
      4. 2 x COM ports
      5. 3 x Audio ports (Line-in / Line-out / MIC)
      6. 2 x PS/2 ports (Keyboard/Mouse)
    • H/W Monitoring
      1. ITE 8712F
      2. System health status auto-detect and report by BIOS
      3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
    • BIOS
      1. 2M bit flash ROM, Award BIOS
    • Bundled Software
      1. Norton Internet Security 2003
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Form Factor
      1. ATX
      2. 30.5cm x 24.4cm
    • Driver
      1. Intel® chipset software installation utility
      2. Intel LAN driver
      3. Realtek audio driver
      4. USB2.0 driver
    • Other Features
      1. Xpress Install
      2. Xpress Recovery
      3. Xpress BIOS Rescue
      4. EasyTune™ 4
      5. @BIOS
      6. Q-Flash™
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
