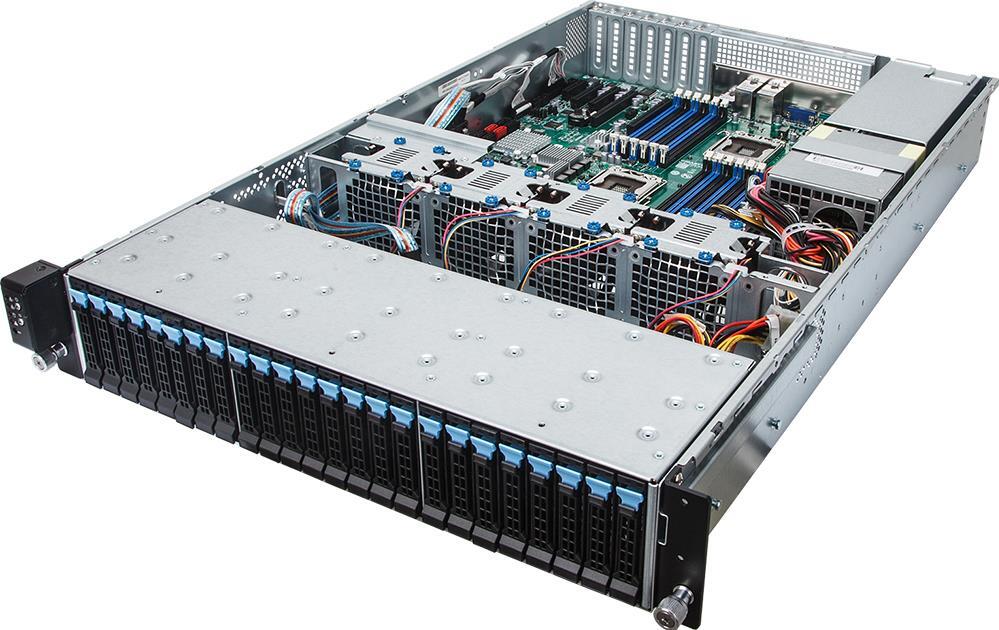

GS-R22PFLLegacy | Software updates supported
Dual Socket 2U Rackmount Server
- Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
- 12 x RDIMM/UDIMM ECC DIMM slots
- 24 x 2.5" hot-swappable HDD bays
- Supports SATA III 6Gb/s and SAS 6Gb/s
- Overview
- Specifications
- Support
- Related Resources
Specifications
Dimensions (WxHxD, mm)
2U
430 x 87 x 712
430 x 87 x 712
Motherboard
GA-7PESLX
CPU
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
Socket
2 x LGA 1356
2 x CPU heatsinks included
2 x CPU heatsinks included
Chipset
Intel® C602
Memory
12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only
LAN
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
24 x 2.5" hot-swappable HDD/SSD bays
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
4 x SATA II 3Gb/s ports
SAS
2 x Mini-SAS (for 8 x SAS 6Gb/s ports)
RAID
Intel® SATA RAID 0/1/5/10
LSI® SAS2008 RAID 0/1/1E/10
LSI® SAS2008 RAID 0/1/1E/10
Peripheral Drives
-
Expansion Slots
6 x Full-length low-profile slots
2 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x8 (Gen3 x4 bus) connector
1 x PCIe x8 (Gen2 x4 bus) connector
1 x PCIe x4 (Gen2 x1 bus) connector
2 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x8 (Gen3 x4 bus) connector
1 x PCIe x8 (Gen2 x4 bus) connector
1 x PCIe x4 (Gen2 x1 bus) connector
Internal I/O
1 x 24-pin main power connector
2 x 8-pin 12V power connectors
4 x System fan headers
2 x CPU fan headers
1 x PMBus connector
1 x LSI® RAID select connector
1 x BIOS write protect jumper
1 x LSI® firmware readiness LED
2 x Mini-SAS connectors
1 x SATA SGPIO connector
4 x SATA II 3Gb/s ports
2 x SATA III 6Gb/s ports
2 x SATA port DOM support jumpers
1 x ME enable/disable jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x Force to Stop FRB3 Timer jumper
2 x USB 2.0 headers
1 x Front panel header
1 x Serial header
2 x 8-pin 12V power connectors
4 x System fan headers
2 x CPU fan headers
1 x PMBus connector
1 x LSI® RAID select connector
1 x BIOS write protect jumper
1 x LSI® firmware readiness LED
2 x Mini-SAS connectors
1 x SATA SGPIO connector
4 x SATA II 3Gb/s ports
2 x SATA III 6Gb/s ports
2 x SATA port DOM support jumpers
1 x ME enable/disable jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x Force to Stop FRB3 Timer jumper
2 x USB 2.0 headers
1 x Front panel header
1 x Serial header
Front I/O
1 x Power button with LED
1 x System status LED
1 x ID button with LED
1 x Reset button
2 x LAN LEDs
1 x HDD status LED
1 x System status LED
1 x ID button with LED
1 x Reset button
2 x LAN LEDs
1 x HDD status LED
Rear I/O
4 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
Backplane Board
N/A
TPM
1 x TPM header
Power Supply[#1]
2 x 750W redundant PSU
80 PLUS Gold
100~220V AC
80 PLUS Gold
100~220V AC
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
System Fans
4 x 80x80x38mm (9000rpm)
Operating Properties
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 50°C
10-80% operating humidity at 30°C
Non-operating temperature: 0°C to 50°C
10-80% operating humidity at 30°C
Weight
17 kg
Part Numbers
Barebone: 6NR22PFLMS-00
Rail kit: 25HB2-073900-I0R
Rail kit: 25HB2-073900-I0R
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
