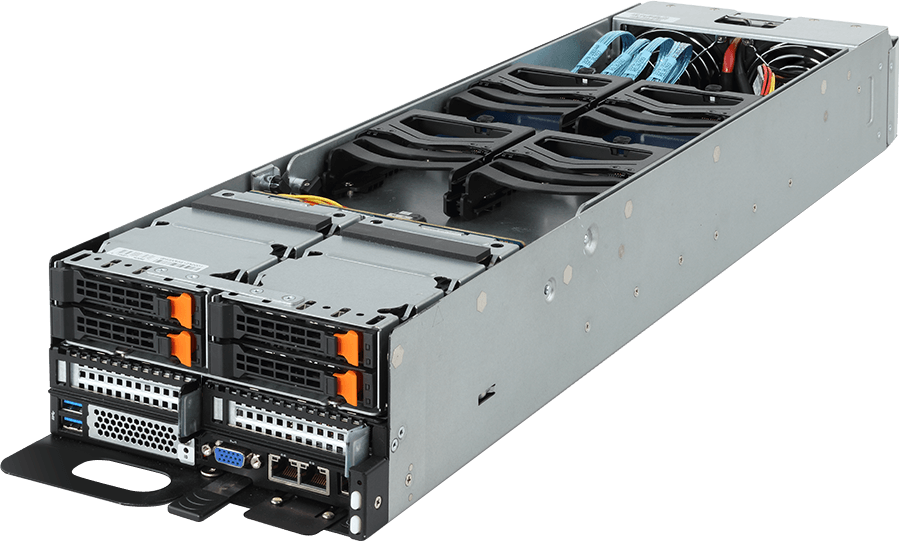

TO22-C22Legacy | Software updates supported
Intel® C621 Express Chipset
- 2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
- 6-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- Supports Intel® Optane™ DC Persistent Memory
- Dual 10Gb/s LAN ports (Intel® X550-AT2)
- 1 x Dedicated management port
- 4 x 2.5" hybrid NVMe/SATA/SAS hot-swap bays
- 4 x 2.5" NVMe fixed bays
- 2 x PCIe Gen3 expansion slots
- Aspeed® AST2500 remote management controller
- Overview
- Specifications
- Support
- Related Resources
Specifications
Dimensions (WxHxD, mm)
3 Nodes/ 2OU
180 x 90 x 690
180 x 90 x 690
Motherboard
MH61-HD4
CPU
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Memory
16 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MHz
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MHz
LAN
2 x 10GbE LAN ports (Intel® X550-AT2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Storage
Front side: 4 x 2.5" hybrid NVMe/SATA/SAS hot-swap bays
Internal: 4 x 2.5" NVMe fixed bays
Internal: 4 x 2.5" NVMe fixed bays
SAS
Add-on card available
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16) slot, Low-profile half-length
1 x PCIe x8 (Gen3 x8) slot, Low-profile half-length
x OCP mezzanine slot (Gen3 x16) - Occupied by CNVO124, 4 x NVMe HBA
1 x PCIe x8 (Gen3 x8) slot, Low-profile half-length
x OCP mezzanine slot (Gen3 x16) - Occupied by CNVO124, 4 x NVMe HBA
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
8 x HDD LED
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
8 x HDD LED
1 x System status LED
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface
GIGABYTE Server Management (GSM)
Avocent® MergePoint IPMI 2.0 web interface
GIGABYTE Server Management (GSM)
System Fans
2 x 80x80x38mm (14900rpm) fan modules per nodes
Weight
8.1kg
