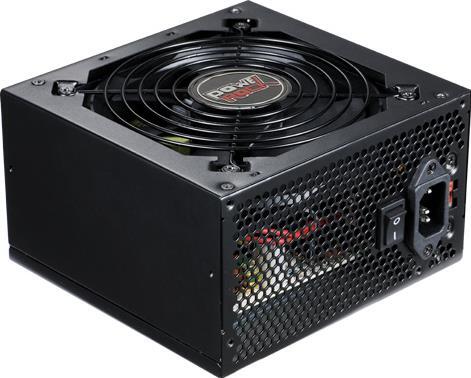

PoweRock EX 500W

Key FeaturesSpecificationsWhere to Buy

Specifications

  • Model
  • GE-A500N-C2
  • Dimension
  • 86 x 140 x 150 mm
  • Connectors
  • (20+4)-pin Motherboard Connector 1
    (4+4)-pin +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connector 2
    SATA Connectors 6
    4-pin Peripheral Connectors 4
    4-pin Floppy Connector 1
  • Weight
  • 1.52kg
  • Info
  • AC INPUT 115Vac/230Vac 10A/5A 47/63Hz
    DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5Vsb
    OUTPUT CURRENT 13A 18A 20A 20A 0.5A 2A
    32A
    110W 384W
    MAX COMBINED WATTAGE 500W
  • Safety Approval
  • CE, CB, BSMI
  • Model
  • GE-A500N-C2
  • Dimension
  • 86 x 140 x 150 mm
  • Connectors
  • (20+4)-pin Motherboard Connector 1
    (4+4)-pin +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connector 2
    SATA Connectors 6
    4-pin Peripheral Connectors 4
    4-pin Floppy Connector 1
  • Weight
  • 1.52kg
  • Info
  • AC INPUT 115Vac/230Vac 10A/5A 47/63Hz
    DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5Vsb
    OUTPUT CURRENT 13A 18A 20A 20A 0.5A 2A
    32A
    110W 384W
    MAX COMBINED WATTAGE 500W
  • Safety Approval
  • CE, CB, BSMI
