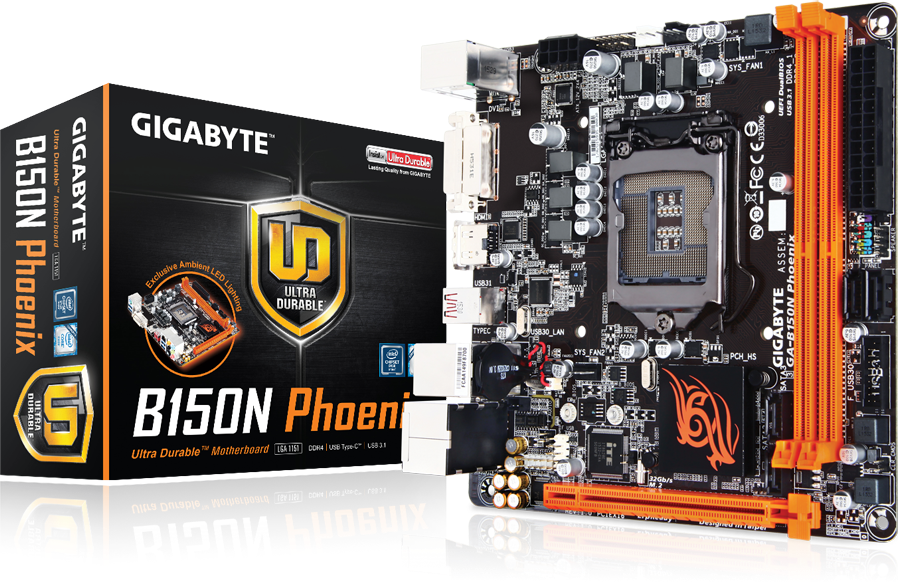

GA-B150N Phoenix (Rev. 1.0)

Intel® B150 Chipset
PanoramicaSpecificheSupportoNotizie/RiconoscimentiLearn MoreWhere to Buy

Specifiche

  • CPU
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B150 Express Chipset
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 2133 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor- Intel® HD Graphics support:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 1024 MB
  • Audio
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  • Storage Interface
  • Chipset:
    1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2/x1 SSD support)
    2. 4 x SATA 6Gb/s connectors
      * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2 and SATA connectors.
  • USB
  • Chipset:
    1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    2. 2 x USB 2.0/1.1 ports (available through the internal USB header)
    Chipset+ASMedia® USB 3.1 Controller:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
    2. 1 x USB 3.1 Type-A port (red) on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 2 x system fan headers
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 1 x USB 3.0/2.0 header
    10. 1 x USB 2.0/1.1 header
    11. 1 x speaker header
    12. 1 x Clear CMOS jumper
    13. 1 x chassis intrusion header
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x HDMI port
    4. 1 x USB Type-C™ port, with USB 3.1 support
    5. 1 x USB 3.1 Type-A port (red)
    6. 4 x USB 3.0/2.0 ports
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Smart Switch
    4. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
        * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® B150 Express Chipset
    • Memory
      1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR4 2133 MHz memory modules
      4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
    • Integrated Graphics Processor- Intel® HD Graphics support:
      1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
        * The DVI-D port does not support D-Sub connection by adapter.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 1.4 version.
      Maximum shared memory of 1024 MB
    • Audio
      1. Realtek® ALC892 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    • Storage Interface
    • Chipset:
      1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2/x1 SSD support)
      2. 4 x SATA 6Gb/s connectors
        * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2 and SATA connectors.
    • USB
    • Chipset:
      1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      2. 2 x USB 2.0/1.1 ports (available through the internal USB header)
      Chipset+ASMedia® USB 3.1 Controller:
      1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
      2. 1 x USB 3.1 Type-A port (red) on the back panel
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 4 x SATA 6Gb/s connectors
      4. 1 x CPU fan header
      5. 2 x system fan headers
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 1 x S/PDIF Out header
      9. 1 x USB 3.0/2.0 header
      10. 1 x USB 2.0/1.1 header
      11. 1 x speaker header
      12. 1 x Clear CMOS jumper
      13. 1 x chassis intrusion header
    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x DVI-D port
      3. 1 x HDMI port
      4. 1 x USB Type-C™ port, with USB 3.1 support
      5. 1 x USB 3.1 Type-A port (red)
      6. 4 x USB 3.0/2.0 ports
      7. 1 x RJ-45 port
      8. 1 x optical S/PDIF Out connector
      9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        @BIOS
        AutoGreen
        Cloud Station
        EasyTune
        Fast Boot
        Smart TimeLock
        Smart Keyboard
        Smart Backup
        System Information Viewer
        USB Blocker
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
    • Bundle Software
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
    • Operating System
      1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
      2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Form Factor
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * I termini HDMI, Interfaccia multimediale ad alta definizione HDMI (HDMI High- Definition Multimedia Interface), immagine commerciale HDMI (HDMI Trade dress) e i loghi HDMI sono marchi commerciali o marchi commerciali registrati di HDMI Licensing Administrator, Inc.
      * I materiali qui forniti sono solo di riferimento. GIGABYTE si riserva il diritto di modificare o rivedere il contenuto in qualsiasi momento senza preavviso.
      * Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
      * Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
      * A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
