GPU Workstation - AMD Ryzen™ Threadripper™ PRO 9000/7000 WX - 2500 W PSU - W773-H5D-AAF1

1/6

W773-H5D-AAF1

Rev. 3.x

GPU Workstation - AMD Ryzen^™ Threadripper^™ PRO 9000/7000 WX - 2500 W PSU

AI Visual Computing HPC Hybrid/Private Cloud Server AI Training AI Inference

Supports up to 4 x Dual slot Gen5 GPUs
Single AMD Ryzen^™ Threadripper^™ PRO 9000/7000 WX-Series Processors
8-Channel DDR5 RDIMM, 8 x DIMMs
AMD WRX90 Chipset
2 x 10 Gb/s LAN ports via Broadcom^® BCM57416
4 x M.2 PCIe Gen5 x4
Up to 8 x 3.5"/2.5" SATA bays
6 x PCIe Gen5 x16 slots
Single 2500 W ATX 80 PLUS Platinum power supply

Ordering Numbers: 6NW773H5DMR000ABF1*

المزايا الرئيسية

Save

Quote

AMD Ryzen™ Threadripper™ PRO 9000 WX-Series Processors

AMD Ryzen™ Threadripper™ PRO 9000 WX-Series processors build on the legacy of the 7000-WX Series with even greater performance, efficiency, and platform capabilities. Powered by the advanced 4nm “Zen 5” architecture, this new generation delivers industry-leading core counts, higher boost frequencies, and improved IPC across the stack—bringing exceptional performance to artists, architects, engineers, and other professionals working with lightly threaded applications.

For heavily threaded workloads such as simulation, generative design, rendering, and large-scale compilation, Ryzen™ Threadripper™ PRO 9000 WX-Series processors continue to lead the workstation market with the highest core counts available. With class-leading L3 cache per core and memory bandwidth, these processors are built to accelerate demanding workflows and reduce latency in memory-intensive applications.

Zen 5

architecture

AMD WRX90

chipset

Up to 96

CPU cores

8-channel

DDR5 memory

Up to 128

PCIe 5.0 lanes

AST2600

BMC

All-New Workstation Design

Guarding Your Professional Work Needs

Smooth edge design bold diagonal grid
Radiating a dominant yet stable style
Achieving a balance of functionality and aesthetics
Large perforations enhance heat dissipation
Iron meshes reinforcement prevents foreign objects
Lock holes ensure information security

W773-H5D-AAF1 Block Diagram

W773-H5D-AAF1 Product Overview

High Performance

Supports Multiple Multi-slot Accelerators

GIGABYTE Workstations have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for 3D rendering, deep learning and high-performance computing. The design enables content creators, data scientists, researchers, and engineers to tackle challenges that were once impossible.

Storage Support

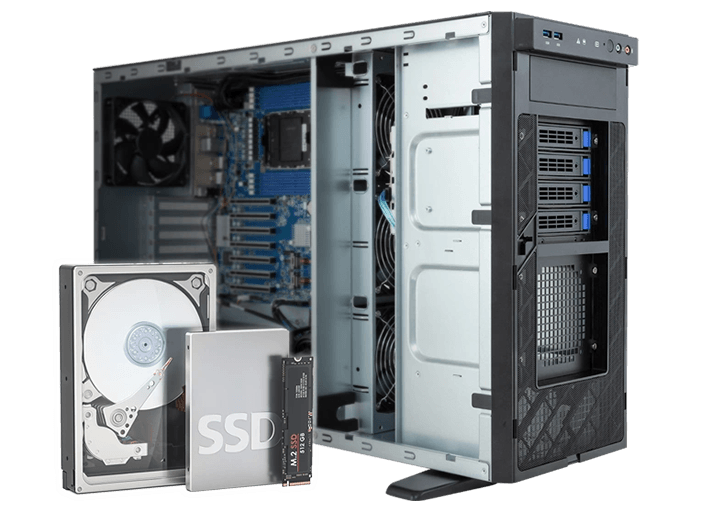

Mix Drives

Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.

Onboard 4 x M.2 2280/22110 slots (PCIe 5.0 x4)
4 x 3.5” / 2.5” SATA hot-swap HDD/SSD bays
Optional 4 x 3.5” / 2.5” SATA hot-swap HDD/SSD bays

Connectivity

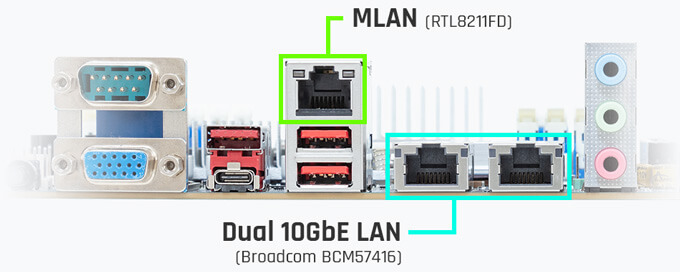

Dual 10GbE LAN

The Broadcom^® BCM57416 controller supports 2 x 10GbE configuration which is the foundation for workstation connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Professional Thermal Solution

With internal airflow diversion and smart fan solution. ALL NEW W7 series ensure the balance between performance and heat dissipation.

GIGABYTE Selected FAN module
Large perforations enhance heat dissipation
Airduct to diverse CPU and GPU airflow
GSM Smart FAN Speed Control

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom^® MegaRAID adapters.

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

المواصفات

Dimensions (WxHxD, mm)

Pedestal
218 x 455 x 726.3

Motherboard

MH53-G40

CPU

AMD Ryzen^™ Threadripper^™ PRO 9000 WX-Series Processors
AMD Ryzen^™ Threadripper^™ PRO 7000 WX-Series Processors

Single processor, TDP up to 350 W

Socket

1 x sTR5

Chipset

AMD WRX90

Memory

8 x DIMM slots
Support DDR5 RDIMM
8-channel memory per processor

Ryzen^™ Threadripper^™ PRO 9000 WX:
Up to 6400 MT/s

Ryzen^™ Threadripper^™ PRO 7000 WX:
Up to 5200 MT/s

LAN

2 x 10 Gb/s LAN (1 x Broadcom^® BCM57416)
- Support NCSI function

1 x 10/100/1000 Mb/s Management LAN

Video

Integrated in ASPEED^® AST2600
- 1 x VGA port

Audio

Realtek^® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Front: 2 x Audio jacks (Audio out/Mic)

Storage

Front hot-swap:
4 x 3.5"/2.5" SATA
Optional 4 x 3.5"/2.5" SATA

Internal M.2:
4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU

^[Note]Storage card is required to support NVMe and SAS drives.

RAID

RAID 0/1/10/5

Peripheral Drives

5.25" space reserved for ODD device

PCIe Expansion Slots

Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_5: PCIe x16 (Gen5 x16)
Slot_3: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x16)

1 x M.2 (2230), E-key (Wi-Fi), PCIe Gen3 x1, from FCH

^[Note]The system supports the following GPU configurations:
- NVIDIA RTX PRO^™ 6000 Blackwell Max-Q Workstation Edition: 2 x GPUs
- NVIDIA RTX^™ 6000 Ada Generation: 4 x GPUs
- AMD Radeon^™ AI PRO R9700: 4 x GPUs
- Dual-slot 600W GPUs: 1 x GPU
- Triple-slot GPUs: 2 x GPUs

Front I/O

1 x USB 3.2 Gen1 port (Type-C)
2 x USB 3.2 Gen1 ports (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED

Rear I/O

1 x USB 3.2 Gen2x2 port (Type-C) (from FCH)
3 x USB 3.2 Gen2x1 ports (Type-A) (from CPU)
1 x VGA port
1 x Serial port
2 x RJ45 ports
1 x MLAN port
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED

Security Modules

1 x TPM header with SPI interface
- Optional TPM 2.0 kit: CTM010

Power Supply^[#1]

Single 2500 W ATX 80 PLUS Platinum power supply^[1]

AC input:
- 200-240V~, 15A, 50-60Hz

DC Output:
- Max 2500W
+12V/ 208.3A
+5V/ 25A
+3.3V/ 25A
+5Vsb/ 4A
-12V/ 0.3A

^[1]The system power supply requires C19 power cord.

^[Note]220-240V AC input is recommended for optimized user experience.

System Management

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Red Hat Enterprise Linux
Ubuntu
Windows 11

System Fans

Middle:
3 x 120x120x38mm

Rear:
1 x 120x120x25mm

Operating Properties

Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

Weight

Net Weight: 29.2 kg
Gross Weight: 34.4 kg

Packaging Dimensions

1050 x 417 x 594 mm

Packaging Content

1 x W773-H5D-AAF1
1 x CPU fansink

Part Numbers

- Barebone package: 6NW773H5DMR000ABF1*
- Motherboard: 9MH53G40NR-000*
- I/O shield: 12AIO-MW83RP-00R
- CPU fansink: 25ST0-0Z7020-A3R
- M.2 heatsink: 12SP2-11000E-00R
- Middle fan: 25ST2-123823-S0R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-22K500-F3S

Optional parts:

- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
